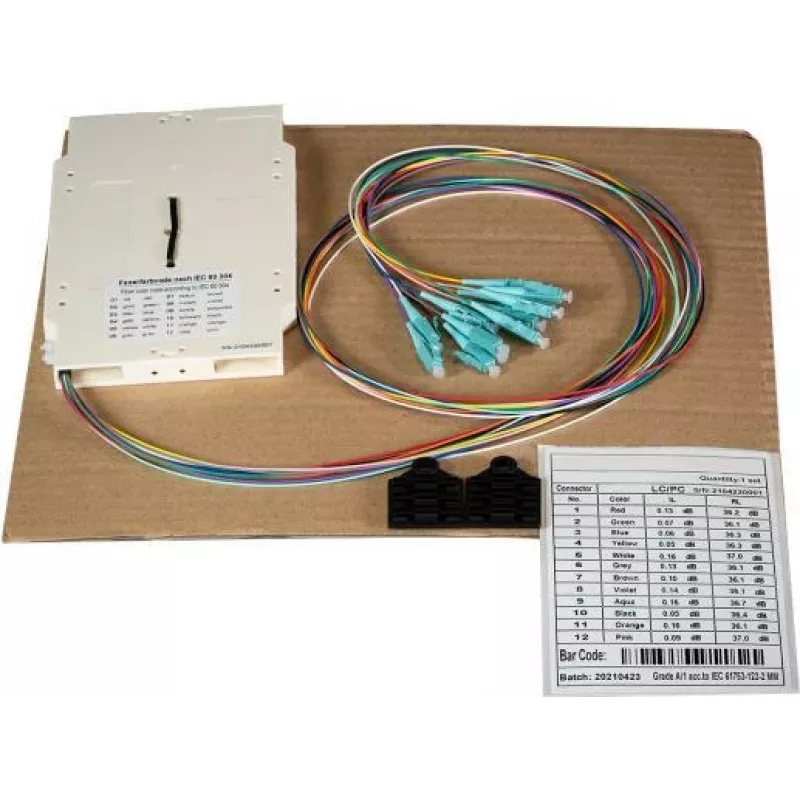

EFB-Elektronik Pre-assembled Splice Cassette with Color-coded LC Pigtails OS2 Single-mode 12 Fibers 2m

The EFB-Elektronik Pre-assembled Splice Cassette (53100.207) is a high-quality fiber optic management solution designed for use in distribution boxes, patch panels, and splice enclosures. This cassette comes pre-assembled with 12 color-coded LC simplex pigtails (OS2 single-mode) and integrated splice holders, ensuring quick and reliable splicing. The pigtails feature a 0.9 mm buffer diameter and LSZH jacket material, providing durability and safety. With low insertion loss (≤0.25 dB) and high return loss (≥50 dB), this cassette guarantees excellent signal integrity for your fiber network.

Advantages

Pre-assembled design saves installation time and reduces labor costs. Color-coded pigtails according to DIN VDE 0888 simplify fiber identification and management. Compact plastic housing fits standard splice trays and enclosures. RoHS and REACH compliant for environmental safety.

Suitable for

• Fiber optic distribution boxes
• Patch panels
• Splice enclosures
• FTTH and terminal boxes
• Data center and telecom applications

Key specifications

• Product Type: Fiber Optic Splice Cassette
• Fiber Type: OS2 Single-mode (9/125 µm)
• Connector Type: LC Simplex
• Number of Fibers: 12
• Pigtail Length: 2 m
• Pigtail Buffer Diameter: 0.9 mm
• Insertion Loss (max.): ≤ 0.25 dB
• Return Loss (min.): ≥ 50 dB
• Polish Type: UPC
• Jacket Material: LSZH
• Housing Material: Plastic
• Operating Temperature: -10°C to +60°C
• Storage Temperature: -20°C to +70°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, use with OS2 single-mode patch cables and ensure proper cleaning of connectors before installation. This cassette is ideal for high-density fiber management in structured cabling systems.
