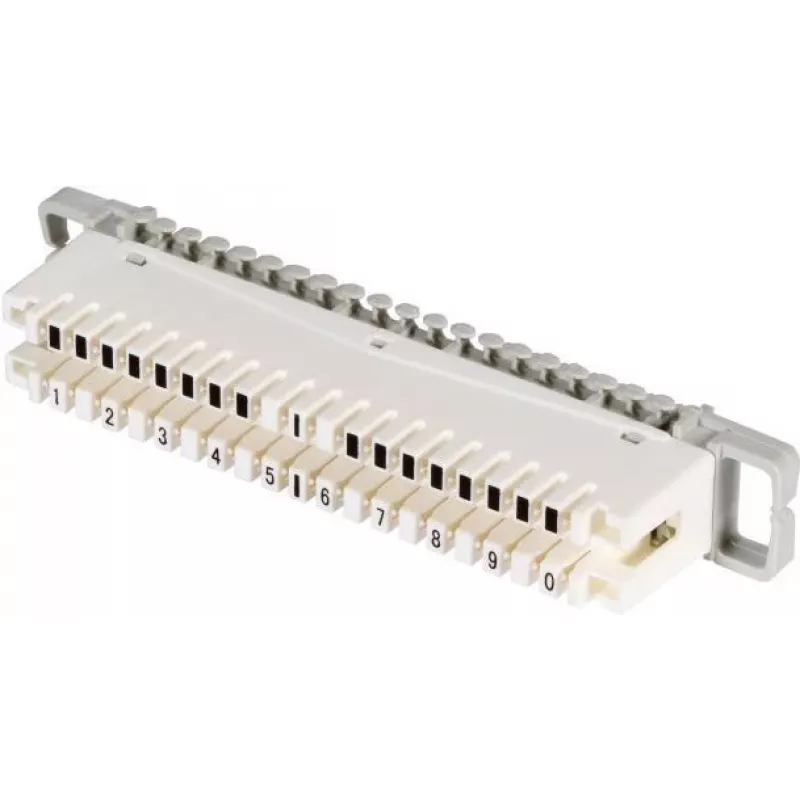

EFB-Elektronik ECOVOICE Disconnect Block, 10-Pair, LSA-Plus/IDC, White/Grey (46005,1)

A 10-pair disconnect block engineered for voice and low-speed data applications, the EFB-Elektronik ECOVOICE 46005,1 delivers reliable circuit isolation and test access in structured cabling systems. Its LSA-Plus/IDC termination ensures fast, solderless, and gas-tight connections for solid copper conductors from 0.4 to 0.8 mm diameter, making it a cornerstone component for telephony distribution frames and backmount frames.

Advantages

This disconnect block stands out with its robust construction and high-performance electrical characteristics. The phosphor bronze contacts with tin plating guarantee low contact resistance (<2 mΩ) and excellent corrosion resistance, ensuring long-term signal integrity. With over 200 insertion cycles, it withstands repeated re-terminations without degradation. The flame-retardant plastic housing enhances safety in dense installations, while the white/grey colour blends seamlessly into standard distribution environments.

Suitable for

• Telephony and voice distribution frames in commercial buildings
• Backmount frames requiring reliable disconnect and test points
• Low-speed data circuits where circuit isolation is needed for maintenance
• Structured cabling systems using LSA-Plus termination tools

Key specifications

• Product type: Disconnect block
• Number of pairs: 10
• Termination type: LSA-Plus / IDC (insulation displacement connector)
• Wire gauge (solid): 0.4 – 0.8 mm
• Wire insulation diameter: 0.7 – 1.4 mm
• Contact material: Phosphor bronze, tin-plated
• Housing material: Flame-retardant plastic
• Colour: White / grey
• Insertion cycles (IDC): >200
• Dielectric strength: >2 kV (RMS, 1 min)
• Insulation resistance: >500 MΩ (at 500 VDC)
• Contact resistance: <2 mΩ
• Operating temperature: -5°C to +45°C
• Storage temperature: -20°C to +60°C
• Compatibility: Standard LSA-Plus termination tools
• Functionality: Disconnect, test access
• Series: ECOVOICE

Recommendations

For installers and network administrators seeking a dependable disconnect solution, the ECOVOICE 46005,1 offers proven performance and ease of use. Pair it with standard LSA-Plus insertion tools and ensure proper cable management to maximize longevity. Its compatibility with backmount frames makes it a versatile choice for both new installations and retrofits.
