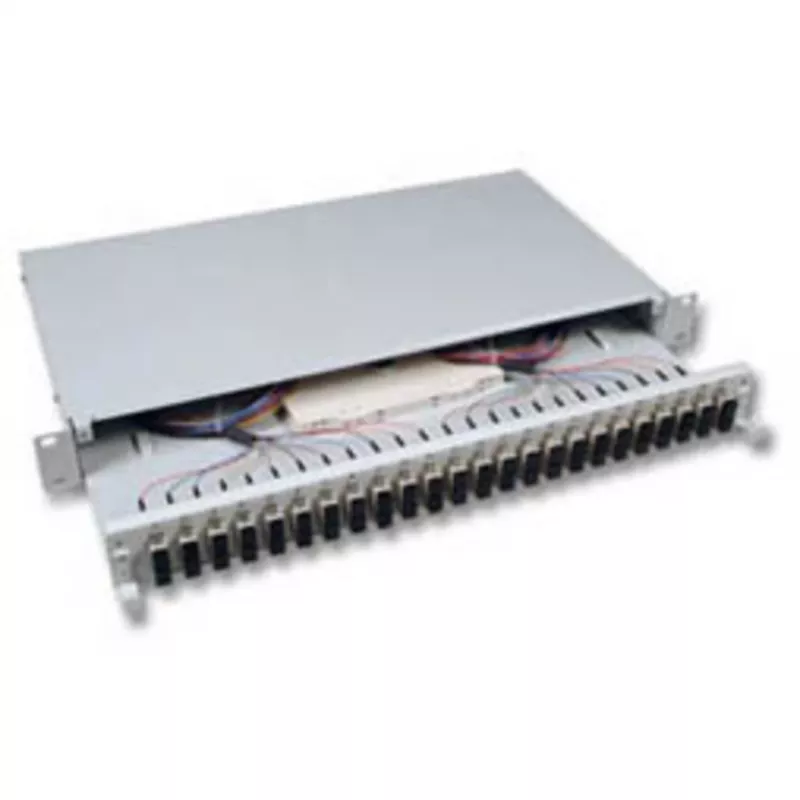

EFB-Elektronik ECOFIBER Splice Box SC 50/125µm OM2 Extractable 24 Pigtails/12 Couplers 1U 19 inch Rack Mount Grey (B71203.24)

The EFB-Elektronik ECOFIBER Splice Box B71203.24 is a high-quality fiber optic splice box designed for professional network termination, splicing, and patching. Pre-assembled with 24 SC pigtails and 12 SC duplex adapters, this 1U 19-inch rack-mountable unit features an extractable tray for easy access. It supports OM2 multimode fibers with 50/125µm core/cladding diameter, making it ideal for structured cabling and data center environments.

Advantages

Pre-assembled with pigtails and adapters saves installation time. The sliding tray provides convenient access for splicing and maintenance. Compact 1U design optimizes rack space. Robust metal housing in RAL 7035 light grey ensures durability and professional appearance.

Suitable for

• Fiber optic network termination points
• Splicing and patching in telecom rooms
• Data center fiber distribution
• LAN and SAN infrastructure

Key specifications

• Product Type: Fiber Optic Splice Box / Patch Panel
• Fiber Type: Multimode (MM) OM2
• Core/Cladding: 50/125 µm
• Connector Type (Pigtails): SC
• Connector Type (Adapters): SC Duplex
• Number of Pigtails: 24
• Number of Adapters: 12 (Duplex)
• Total Fiber Capacity: 24 Fibers
• Design: Sliding / Extractable Tray
• Mounting: 19-inch Rack, 1U
• Colour: Grey (RAL 7035)
• Pre-assembled: Yes
• Cable Entry: Rear
• Splice Tray: Integrated

Recommendations

For optimal performance, use with OM2 patch cables and fusion splicing. Ensure proper cable management and bend radius protection.
