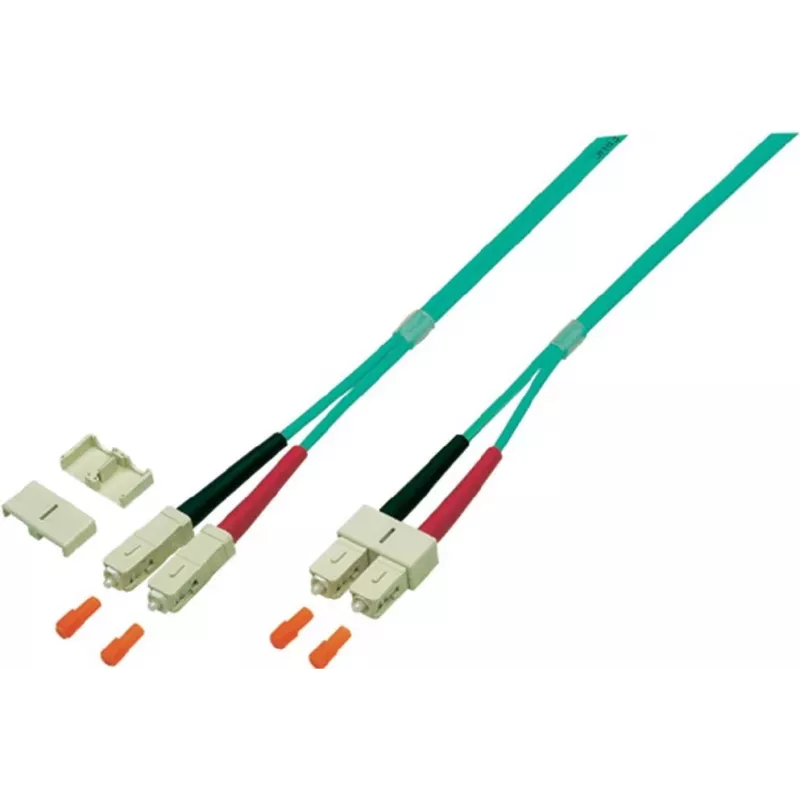

EFB-Elektronik Duplex Jumper SC-SC 50/125µ, OM4, LSZH, Erika Violet, 3.0mm, 15m O0318.15

In high-density data centres and enterprise networks, reliable fibre optic connections are critical for maintaining high-speed data transfer and minimising downtime. This EFB-Elektronik Duplex Jumper provides a robust and efficient solution for linking network components with SC connectors, ensuring seamless communication in demanding environments. Its OM4 multimode fibre supports high bandwidth over short to medium distances, making it ideal for backbone cabling and server interconnects.

Who is it for

Network administrators, data centre managers, and IT professionals who need a dependable, high-performance fibre patch cable for 10G, 40G, and 100G Ethernet applications. It is particularly suited for installations where space is limited and low smoke zero halogen (LSZH) materials are required for safety compliance.

Main features

• Duplex SC to SC connectors for easy, secure connections.
• OM4 multimode fibre with 50/125 µm core/cladding diameter.
• Low smoke zero halogen (LSZH) jacket in Erika violet for enhanced fire safety.
• 3.0 mm outer diameter for flexibility and easy routing in dense cable trays.
• 15 metre length ideal for rack-to-rack or patch panel connections.
• Low insertion loss (< 0.3 dB per connector pair) for optimal signal integrity.
• Supports 10G, 40G, and 100G Ethernet up to 150 metres at 850 nm.

Specifications

• Cable type: Fibre optic patch cable, duplex
• Fiber type: Multimode OM4
• Core/cladding diameter: 50/125 µm
• Connector A: SC Duplex
• Connector B: SC Duplex
• Cable length: 15 m
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket colour: Erika violet
• Cable diameter: 3.0 mm
• Insertion loss: < 0.3 dB per connector pair
• Return loss: > 30 dB
• Attenuation at 850 nm: 3.0 dB/km
• Attenuation at 1300 nm: 1.0 dB/km
• Bandwidth at 850 nm: 4700 MHz·km
• Bandwidth at 1300 nm: 500 MHz·km
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Standards compliance: IEC 60793, TIA/EIA-568-C.3, ISO/IEC 11801
• Polarity: A-B (crossed)

Tips

When installing, avoid bending the cable beyond its minimum bend radius (typically 10 times the cable diameter) to prevent signal loss. Use cable management accessories to maintain proper bend radius and reduce stress on connectors. For best performance, clean connector end faces before each mating.
