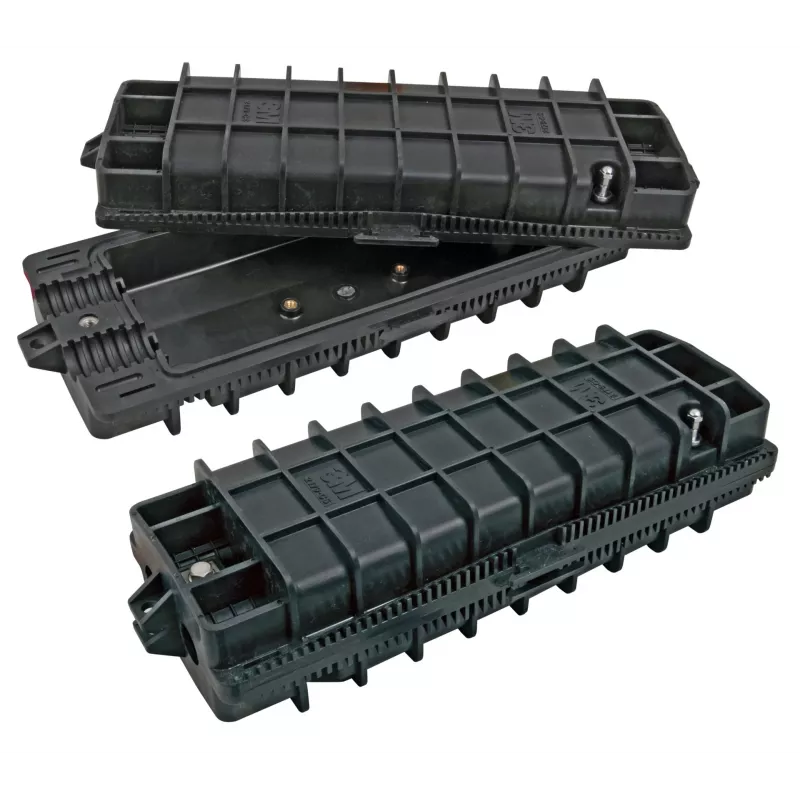

EFB Elektronik 83200.1 Outdoor Fiber Optic Splice Closure IP68 for 48 Fibers, Cable Diameter 10-25mm

For field technicians who need a dependable outdoor splicing solution, the EFB Elektronik 83200.1 stands out with its robust IP68 sealing and capacity for up to 48 fibers. Unlike many closures that struggle with varying cable diameters, this unit accommodates 10–25 mm cables through a combination of one oval and four round ports, making it versatile for diverse network builds.

Highlights

• IP68-rated protection against dust and continuous immersion in water
• Supports up to 48 fusion or mechanical splices on four 12-fiber trays
• Flexible cable entry: one oval port for two cables plus four round ports
• High-grade UV-resistant PC/ABS housing withstands harsh outdoor conditions
• Multiple mounting options: wall, pole, aerial, or duct
• Wide operating temperature range from -40°C to +65°C

In daily use

Installing the 83200.1 is straightforward thanks to its mechanical gasket sealing, which eliminates the need for special tools or heat-shrink. The closure's generous internal space allows organized routing of fibers into the four splice trays, reducing the risk of bending or damage. Its black UV-stabilized body resists sunlight degradation, ensuring long-term reliability in exposed locations.

Full specifications

• Product type: Fiber optic splice closure
• Application environment: Outdoor
• Ingress protection: IP68
• Maximum fiber capacity: 48 fibers
• Compatible cable diameter: 10–25 mm
• Cable ports: 1 oval (for 2 cables) + 4 round (for 1 cable each)
• Splice tray capacity: 4 x 12-fiber trays
• Splice type compatibility: Fusion and mechanical
• Material: High-grade UV-resistant plastic (PC/ABS)
• Mounting options: Wall, pole, aerial, duct
• Operating temperature: -40°C to +65°C
• Storage temperature: -40°C to +70°C
• Humidity resistance: Up to 95% non-condensing
• UV resistance: Yes
• Impact resistance: High
• Sealing method: Mechanical gasket
• Colour: Black
• Certifications: RoHS compliant

Final note

The EFB Elektronik 83200.1 is a reliable choice for FTTH and backbone networks, offering a balance of capacity, durability, and ease of installation that keeps your outdoor splices protected for years.
