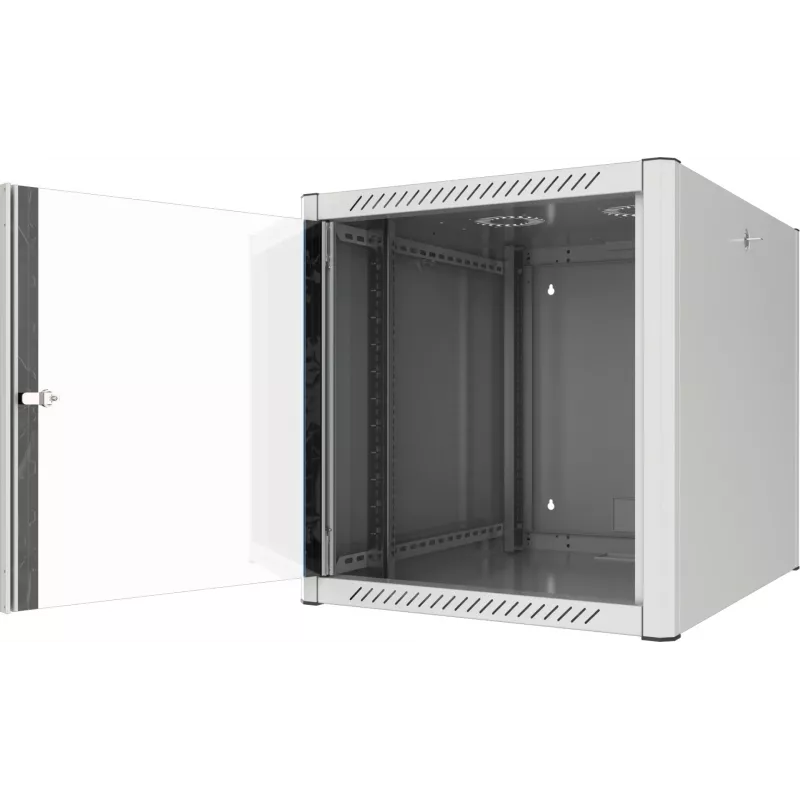

EFB Elektronik 19 inch Wall-Mount Cabinet 12U Depth 800 mm Pre-assembled RAL7035

The EFB Elektronik 19" Wall-Mount Cabinet 12U is a pre-assembled, high-quality enclosure designed for secure and organized installation of 19-inch network and IT equipment. With a depth of 800 mm and a height of 12U, it offers ample space for switches, patch panels, servers, and other rack-mountable devices. The cabinet is finished in light grey (RAL 7035) and features a tempered safety glass door with a swing handle lock, ensuring both visibility and security.

Advantages

This wall-mount cabinet provides a space-saving solution for environments where floor space is limited. The pre-assembled design reduces installation time and effort. The lockable front door and removable side panels offer easy access and enhanced security. Cable entry points at the top and bottom with brush strips maintain a neat and tidy cable management system.

Suitable for

• Network closets and server rooms with limited floor space
• Installation of 19-inch switches, routers, patch panels, and UPS systems
• Retail, office, and industrial environments requiring secure equipment housing

Key specifications

• Rack Units: 12U
• Rack Standard: 19 inch
• Mounting Type: Wall Mount
• External Dimensions (HxWxD): 635 x 600 x 800 mm
• Color: Light Grey (RAL 7035)
• Material: Steel Sheet
• Front Door: Tempered Safety Glass with Lock
• Side Panels: Removable and Lockable
• Rear Panel: Solid
• Cable Entry: Top and Bottom with Brush Strips
• Ventilation: Passive, prepared for Fan Unit
• Load Capacity: 60 kg
• Protection Class: IP20
• Mounting Rails: 2 pairs (front and rear), depth-adjustable

Recommendations

For optimal performance, ensure the wall is capable of supporting the cabinet's weight (up to 60 kg). Use appropriate wall anchors and bolts (not included). Consider adding a fan unit for active ventilation if high-power equipment is installed.
