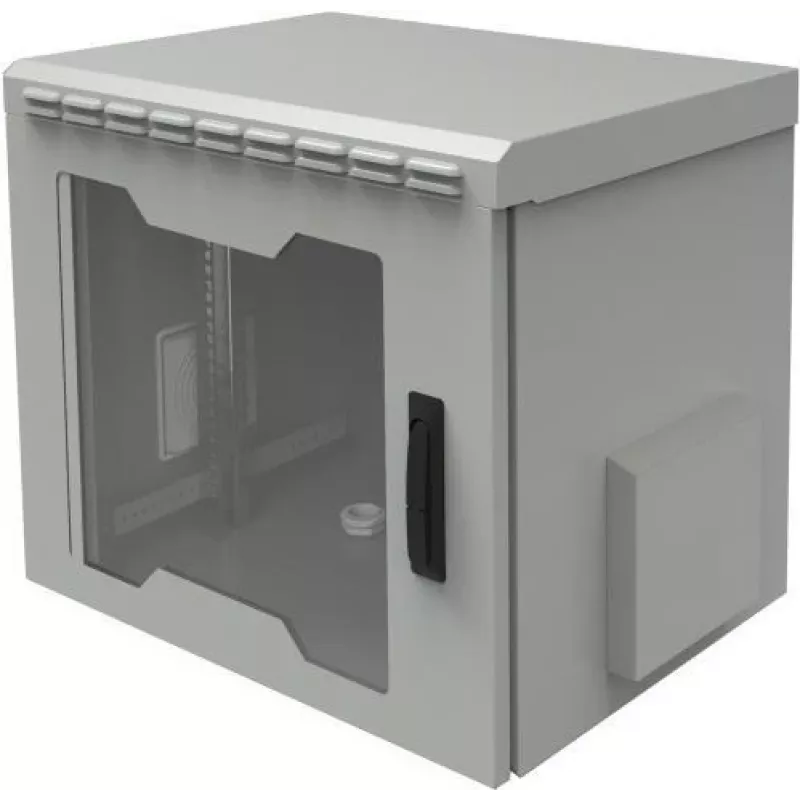

EFB Elektronik 19 Inch Wall-Mounted Enclosure IP55, 12U, Glass Door, Depth 450 mm, RAL 7035 Light Grey

The EFB Elektronik 691712IP55.1G is a robust 19-inch wall-mounted enclosure designed for network, server, and industrial IT applications. With an IP55 rating, it offers protection against dust and water jets, making it suitable for demanding environments. The enclosure features a single front glass door, lockable for security, and a powder-coated steel construction in light grey (RAL 7035). It provides 12U of rack space with adjustable 19-inch mounting rails, sealed cable entry points, and a welded frame for durability.

Advantages

This enclosure ensures reliable protection for sensitive equipment in industrial or outdoor settings. The IP55 rating safeguards against dust ingress and low-pressure water jets, while the lockable glass door allows visual monitoring without compromising security. The adjustable mounting rails accommodate various equipment depths, and the sealed cable entry points maintain the integrity of the enclosure.

Suitable for

• Network switches and patch panels
• Server equipment in industrial environments
• IT infrastructure requiring dust and water protection
• Wall-mounted installations where space is limited

Key specifications

• Rack standard: 19 inch
• Height units: 12U
• Ingress protection: IP55
• Door type: Single front glass door, lockable
• External depth: 450 mm
• Colour: RAL 7035 (Light Grey)
• Material: Steel, powder-coated
• Mounting: Wall-mounted
• Adjustable 19" mounting rails: Yes
• Cable entry: Sealed cable entry points
• Frame construction: Welded frame
• Compliance: CE, RoHS

Recommendations

For optimal performance, ensure proper ventilation and avoid overloading the enclosure. Use appropriate cable glands for sealed entries. This enclosure is ideal for environments where dust and water exposure are a concern.
