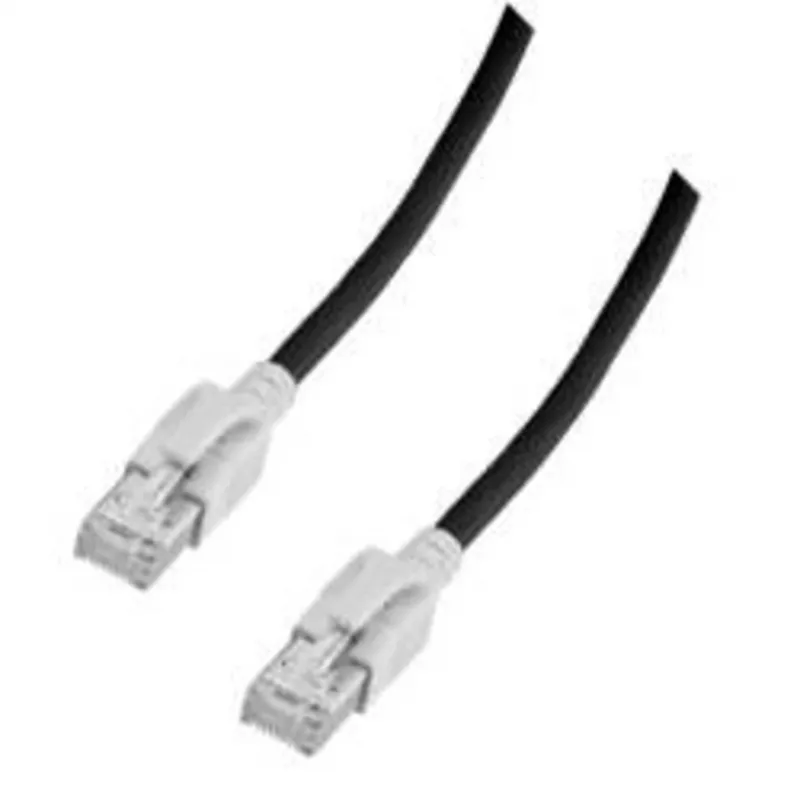

EFB Electronics Patch Cable RJ-45 (M) LED Lighting to RJ-45 (M) Cat6 U/UTP 0.5m Grey

The EFB Electronics Patch Cable with LED lighting is a high-quality Cat6 U/UTP patch cable designed for reliable network connections. With a length of 0.5 meters and grey LSZH jacket, it is ideal for short-distance patching in data centers or office environments. The integrated LED status indicator on one connector provides visual confirmation of link activity, simplifying troubleshooting.

Advantages

This patch cable offers excellent performance for Gigabit Ethernet networks, supporting data transfer rates up to 1 Gbps and bandwidth up to 250 MHz. The snagless molded boot protects the connector tabs during installation, while the gold-plated contacts ensure reliable connectivity. The LSZH jacket reduces toxic smoke in case of fire, making it suitable for public areas.

Suitable for

• Connecting network devices such as computers, switches, and routers in close proximity
• Data center patching where visual link indication is beneficial
• Applications requiring low smoke zero halogen cabling for safety

Key specifications

• Cable Type: U/UTP (Unshielded Twisted Pair)
• Category: Cat6
• Length: 0.5 m
• Connectors: RJ-45 Male to RJ-45 Male
• Special Feature: LED Status Indicator on one connector
• Colour: Grey
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Conductor Material: Copper (Cu), AWG 26/7 Stranded
• Wiring Standard: TIA/EIA 568B
• Data Transfer Rate: Up to 1 Gbps
• Bandwidth: Up to 250 MHz
• Boot Type: Molded, Snagless
• Contact Plating: Gold-plated (50µ")
• Compliance: RoHS, REACH, ISO/IEC 11801, EN 50173

Recommendations

For optimal performance, use this cable with Cat6 compatible devices. The LED indicator is active when a link is established; ensure the connected device supports link pulse detection.
