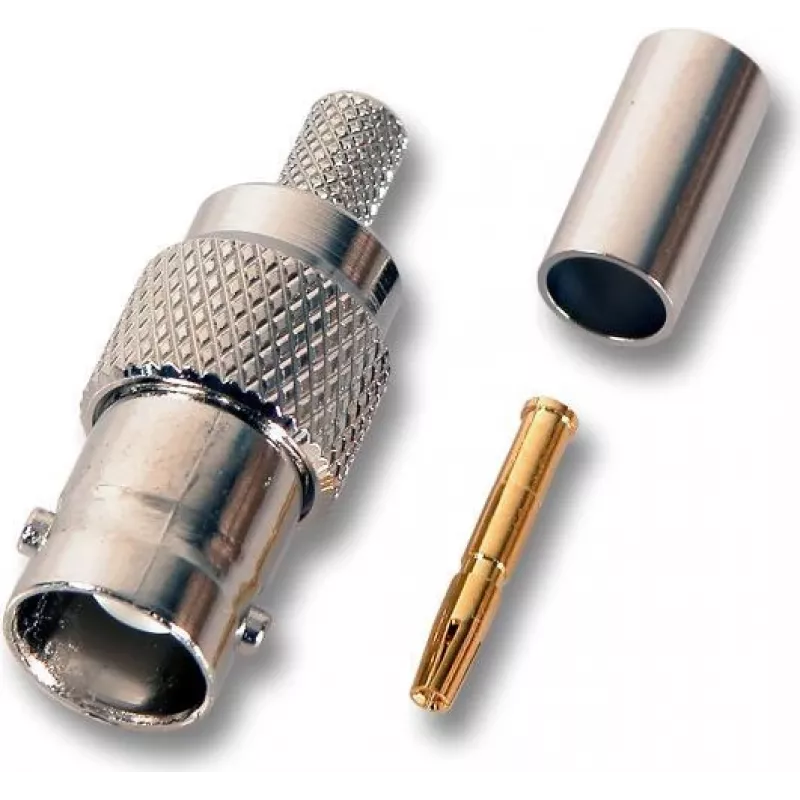

EFB BNC Female Straight Crimp Connector for RG179 75 Ohm

The EFB BNC female straight crimp connector is a high-quality RF coaxial connector designed for professional video, broadcast, CCTV, and test & measurement applications. It provides reliable 75 Ohm impedance matching and is compatible with RG179 cables. The connector features gold-plated contacts and nickel-plated brass body for excellent conductivity and corrosion resistance.

Advantages

Gold-plated contact ensures low contact resistance and high signal integrity. PTFE insulator provides excellent dielectric properties and high temperature resistance. Straight body design allows for easy installation in tight spaces. Crimp attachment method ensures secure and repeatable connections.

Suitable for

• Video surveillance systems (CCTV)
• Broadcast and professional video equipment
• Test and measurement instruments
• RF communication systems requiring 75 Ohm impedance

Key specifications

• Connector Type: BNC
• Gender: Female
• Body Orientation: Straight
• Cable Attachment: Crimp
• Impedance: 75 Ohm
• Compatible Cable: RG179
• Contact Plating: Gold
• Body Plating: Nickel
• Body Material: Brass
• Insulator Material: PTFE
• Frequency Range: DC to 1 GHz
• Voltage Rating: 500 V RMS
• Dielectric Withstanding Voltage: 1500 V RMS
• Contact Resistance: ≤ 1.5 mΩ
• Insulation Resistance: ≥ 5000 MΩ
• Operating Temperature: -40°C to +85°C
• Mating Cycles: 500
• RoHS Compliant: Yes
• Standard: MIL-STD-348B

Recommendations

For optimal performance, use with RG179 coaxial cable and ensure proper crimping with a suitable crimp tool. This connector is ideal for professional installations where signal integrity is critical.
