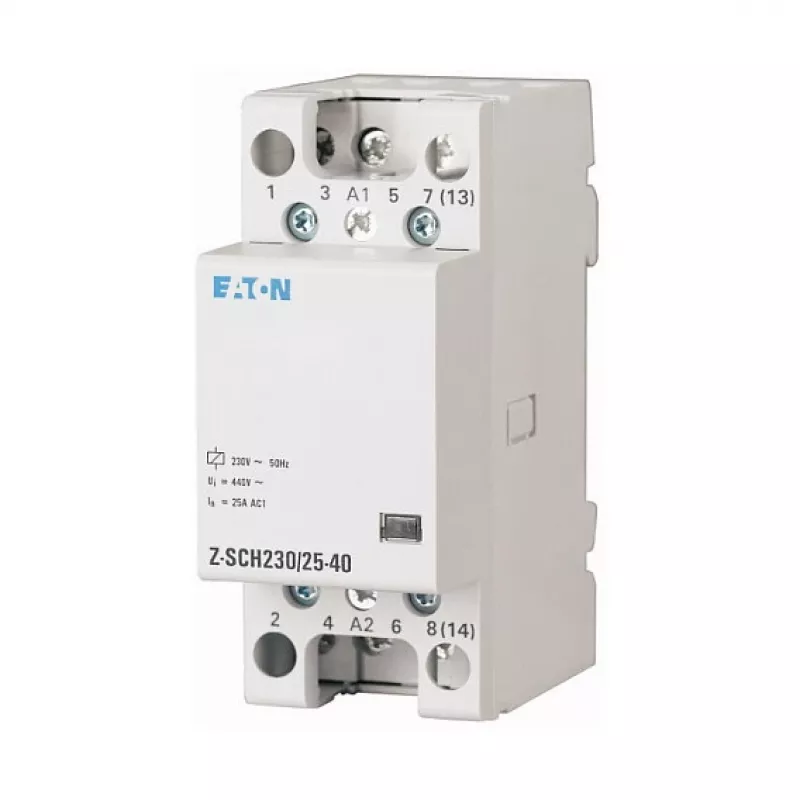

EATON Z-SCH230/25-40 Installation Contactor, 230V AC Coil, 4-Pole (4 NO), 25A, 2 TE, DIN Rail, MPN 248847

When you need reliable switching for lighting, heating, or motor loads in residential or commercial installations, the EATON Z-SCH230/25-40 delivers a compact, 4-pole contactor rated for 25A at AC-1. It is engineered for DIN-rail mounting and fits standard enclosures, making it a practical choice for panel builders and electricians.

Who is it for

This installation contactor is designed for professionals who need a dependable switching solution for electrical distribution boards, HVAC systems, and industrial control panels. Its screw terminals and modular width simplify wiring and installation.

Main features

• 4-pole design with 4 normally open (NO) contacts
• Rated operational current of 25A (AC-1)
• Coil voltage of 230V AC, 50/60Hz
• Compact 2 TE modular width for space-saving DIN-rail mounting
• High mechanical endurance of 1,000,000 cycles
• Electrical durability of 100,000 cycles under AC-1
• Screw terminals for secure and straightforward connections

Specifications

• Product Type: Installation Contactor
• Number of Poles: 4
• Contact Configuration: 4 NO
• Rated Operational Current (AC-1): 25 A
• Coil Voltage: 230 V AC
• Coil Frequency: 50/60 Hz
• Rated Operational Voltage (Ue): 400 V AC
• Rated Insulation Voltage (Ui): 440 V
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Mounting Type: DIN Rail (EN 60715)
• Degree of Protection: IP20 (terminals), IP40 (front)
• Ambient Operating Temperature: -25 to +50 °C

Tips

Ensure the control voltage matches the coil rating (230V AC) to avoid malfunction. Use appropriate fuse protection for the load circuit. The contactor is suitable for switching AC-1 loads; for inductive or motor loads, verify derating according to the manufacturer's specifications.
