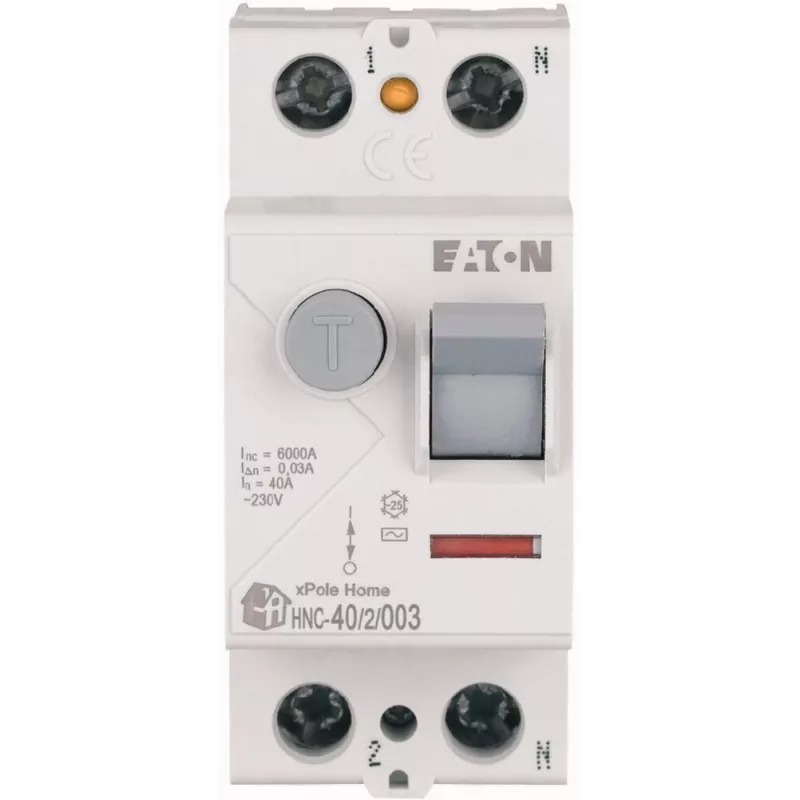

EATON xPole Home RCCB 40A 2P 30mA Type AC 6kA Residual Current Circuit Breaker

EATON xPole Home RCCB 40A 2P 30mA Type AC 6kA Residual Current Circuit Breaker
EATON xPole Home RCCB 40A 2P 30mA Type AC 6kA Residual Current Circuit Breaker
R653
The EATON xPole Home RCCB is a high-quality residual current circuit breaker designed for reliable protection against earth faults. With a rated current of 40A and a rated residual operating current of 30mA, it ensures safety in residential and commercial installations. This 2-pole device is Type AC... Read More
Stock 109 Code 3106842 Brand EATON Model 194691 Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, September 29
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The EATON xPole Home RCCB is a high-quality residual current circuit breaker designed for reliable protection against earth faults. With a rated current of 40A and a rated residual operating current of 30mA, it ensures safety in residential and commercial installations. This 2-pole device is Type AC, suitable for sinusoidal alternating residual currents, and complies with IEC/EN 61008 standards.

Advantages

Compact 2-module design saves space on DIN rail. High breaking capacity of 6kA ensures robust performance. Easy installation with screw terminals accepting up to 35 mm² conductors. Long electrical and mechanical endurance for extended service life.

Suitable for

  • Residential electrical panels
  • Commercial buildings
  • Industrial control systems
  • Protection against indirect contact and fire risk

Key specifications

  • Rated current: 40 A
  • Rated residual current: 30 mA
  • Type: AC
  • Poles: 2
  • Rated voltage: 230/400 V AC
  • Breaking capacity: 6 kA
  • Mounting: DIN Rail
  • Width: 2 modules (35 mm)
  • Standards: IEC/EN 61008

Recommendations

For optimal safety, pair this RCCB with an appropriate MCB from the same series. Ensure correct wiring and periodic testing as per local regulations.

Specifications
Box contents
1 x RCCB, mounting screws, manual
Brand
EATON
Category
Residual Current Circuit Breaker (RCCB)
Certification
IEC/EN 61008
Compatibility
xPole Home series
Compliance certificates
IEC/EN 61008
EAN
9010238060630
Input current
40 A
Model
194691
MPN
194691
Quantity per pack
1
Weight
0.2 kg
