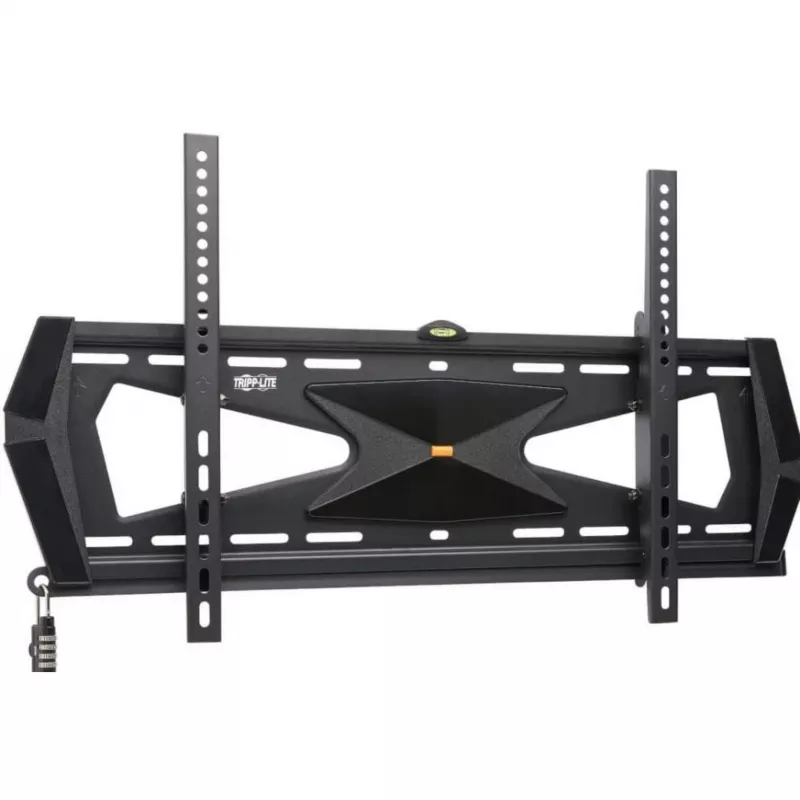

Eaton Tripp Lite DWTSC3780MUL Heavy-Duty Tilt Security TV Wall Mount for 37-80 inch Displays, Black

The Eaton Tripp Lite DWTSC3780MUL is a heavy-duty tilt security wall mount designed for flat-panel displays ranging from 37 to 80 inches. Constructed from durable steel with a sleek black finish, this mount provides a secure and versatile mounting solution for commercial and residential applications. It supports VESA patterns from 200x200mm to 400x400mm and offers a tilt range of -15° to +15°, allowing for optimal viewing angles while maintaining a low profile of just 52mm from the wall.

Advantages

This wall mount combines robust security features with ease of installation. The integrated spirit level ensures perfect alignment, while the padlock-compatible design deters theft. With a maximum load capacity of 45.36 kg (100 lbs), it accommodates a wide range of display sizes. The tilt adjustment reduces glare and improves ergonomics, making it ideal for conference rooms, classrooms, and digital signage.

Suitable for

• Commercial environments such as offices, retail stores, and hospitality venues
• Educational institutions including classrooms and lecture halls
• Home theaters and entertainment centers
• Digital signage and information displays

Key specifications

• Display Size Compatibility: 37 to 80 inches (94 to 203 cm)
• VESA Mounting Standard: 200x200 mm to 400x400 mm
• Maximum Load Capacity: 45.36 kg (100 lbs)
• Mounting Type: Wall Mount
• Mounting Style: Tilting
• Tilt Angle Range: -15° to +15°
• Distance from Wall: 52 mm (2.05 inches)
• Material: Steel
• Color: Black
• Number of Displays Supported: 1
• Integrated Spirit Level: Yes
• Security Feature: Padlock compatible
• Installation Hardware: Included
• Compliance Standards: RoHS, TAA Compliant
• Warranty: 5-Year Limited

Recommendations

For optimal performance, ensure that the wall structure can support the combined weight of the mount and display. Professional installation is recommended for heavy or large displays. This mount is TAA compliant, making it suitable for government and educational procurement.
