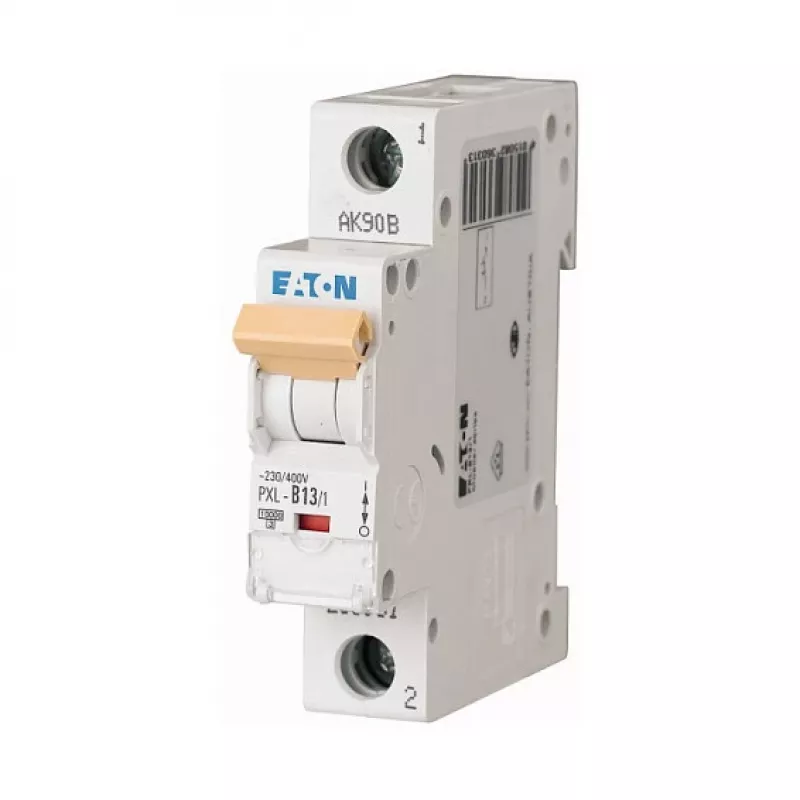

EATON PXL-B13/1 Miniature Circuit Breaker MCB 13A 1P B-Characteristic 10kA 230/400V

The EATON PXL-B13/1 is a compact miniature circuit breaker (MCB) that delivers reliable protection for electrical installations. With a 13 A rated current and type B tripping characteristic, this single-pole device ensures safe operation in residential and commercial applications, guarding against overloads and short circuits.

Advantages

This MCB offers a high breaking capacity of 10 kA, ensuring robust protection even in demanding conditions. Its energy limiting class 3 reduces stress on downstream equipment, while the DIN rail mounting simplifies installation. The device operates reliably across a wide temperature range, making it suitable for various environments.

Suitable for

• Residential electrical distribution boards
• Commercial lighting and socket circuits
• Protection of wiring and connected devices

Key specifications

• Rated current: 13 A
• Tripping characteristic: Type B
• Number of poles: 1
• Rated voltage: 230/400 V AC
• Rated breaking capacity: 10 kA
• Frequency: 50/60 Hz
• Mounting: DIN rail (EN 60715)
• Standard: IEC/EN 60898-1
• Energy limiting class: 3
• Degree of protection: IP20 (terminals), IP40 (front with cover)

Recommendations

Ensure the circuit breaker is installed by a qualified electrician and that the rated current matches the circuit requirements. Regular testing is recommended to maintain safety.
