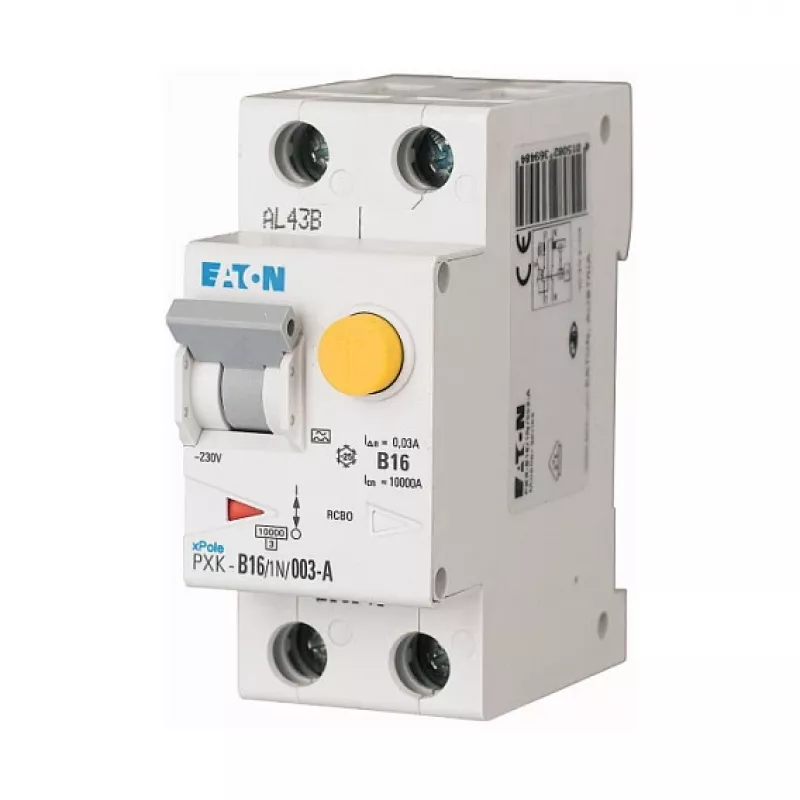

Eaton PXK-C16/1N/003-A RCBO, 16 A, 30 mA, Type A, C-Curve, 1P+N

The Eaton PXK-C16/1N/003-A stands out as a combined residual current circuit breaker with overcurrent protection (RCBO) that integrates a 16 A miniature circuit breaker and a 30 mA residual current device into a single 1P+N module. Unlike separate MCB and RCD setups, this unit saves space on the DIN rail while providing complete protection against overload, short-circuit, and earth fault currents. Its Type A residual current detection ensures reliable tripping for both alternating and pulsating direct fault currents, making it suitable for circuits with electronic loads. The C-curve characteristic handles moderate inrush currents, ideal for lighting, socket outlets, and mixed residential or commercial final circuits.

Highlights

• Rated current 16 A with C-curve tripping characteristic
• 30 mA residual current sensitivity for personal protection
• Type A residual current detection (AC and pulsating DC sensitive)
• Rated voltage 230 V AC, 50/60 Hz
• Rated switching capacity 6 kA
• 1P+N configuration – protected phase with switched neutral
• Compact DIN-rail mounting for space-saving installation
• Terminals suitable for 1-25 mm² solid and 1-16 mm² stranded conductors
• IP20 degree of protection for terminal parts
• Complies with IEC/EN 61009 standards

In daily use

This RCBO is designed to be installed in standard distribution boards on a 35 mm DIN rail. The C-curve characteristic allows moderate inrush currents, making it a versatile choice for general-purpose final circuits. The Type A residual current function provides enhanced protection in environments where electronic equipment may generate DC fault currents. Its wide operating temperature range from -25 to +50 °C ensures reliable performance in various installation conditions. The device features a clear status indication and a test button for regular functional checks.

Full specifications

• Device Type: RCBO (Residual Current Circuit Breaker with Overcurrent Protection)
• Rated Current (In): 16 A
• Rated Residual Operating Current (IΔn): 30 mA
• Tripping Characteristic (MCB): C-curve
• Residual Current Type (RCD): Type A
• Number of Poles: 1P+N (1-pole protected + switched neutral)
• Rated Voltage (Un): 230 V AC
• Rated Switching Capacity (Icn): 6 kA
• Short-circuit breaking capacity (Ics): 6 kA
• Frequency: 50/60 Hz
• Mounting Type: DIN rail
• Degree of Protection (Terminals): IP20
• Terminal Capacity (Solid): 1 - 25 mm²
• Terminal Capacity (Stranded): 1 - 16 mm²
• Operating Temperature Range: -25 to +50 °C
• Standards: IEC/EN 61009
• Energy Limitation Class: 3
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Rated Insulation Voltage (Ui): 250 V

Final note

Eaton's PXK series RCBOs deliver reliable protection in a compact design, ensuring safety and compliance for modern electrical installations.
