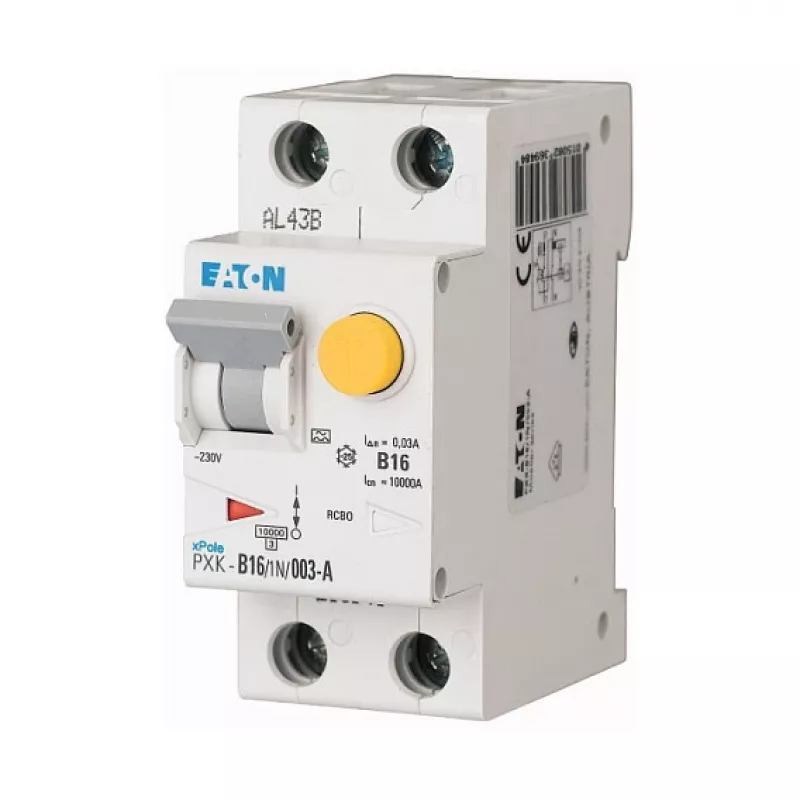

EATON PXK-B16/1N/003-A RCBO 16A 30mA Type B 1P+N 6kA Residual Current Circuit Breaker with Overcurrent Protection

With a 6 kA breaking capacity and a compact 2-module design, the EATON PXK-B16/1N/003-A combines fault protection and overcurrent protection in a single unit, making it an ideal choice for modern distribution boards.

Overview

The PXK-B16/1N/003-A is part of Eaton's PXK series, designed for DIN rail mounting. It offers 16 A rated current and 30 mA residual current protection, with a Type B overcurrent tripping characteristic and Type A residual current sensitivity. This combination ensures effective protection against overloads, short circuits, and earth leakage currents in residential and commercial applications.

What stands out

• Compact 2 TE width (35 mm) saves space in enclosures
• Type A residual current detection handles AC and pulsating DC fault currents
• 6 kA rated short-circuit breaking capacity (Icn and Ics)
• Simple DIN rail mounting for quick installation
• Complies with IEC/EN 61009 standards

Technical details

• Product Type: Residual Current Circuit Breaker with Overcurrent Protection (RCBO)
• Rated Current (In): 16 A
• Rated Residual Current (IΔn): 30 mA
• Overcurrent Tripping Characteristic: Type B
• Residual Current Type: Type A
• Number of Poles: 1P+N
• Rated Voltage (Un): 230 V AC
• Rated Switching Capacity (Icn): 6 kA
• Rated Short-Circuit Breaking Capacity (Ics): 6 kA
• Frequency: 50 Hz
• Module Width: 2 TE (35 mm)
• Mounting Type: DIN Rail
• Degree of Protection (IP): IP20 (terminals), IP40 (front)
• Operating Temperature Range: -25 to +40 °C
• Terminal Capacity (Solid/Stranded): 1-25 mm²
• Standards: IEC/EN 61009
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Energy Limitation Class: 3

Our verdict

The Eaton PXK-B16/1N/003-A is a reliable and space-saving RCBO that delivers comprehensive protection for modern electrical installations.
