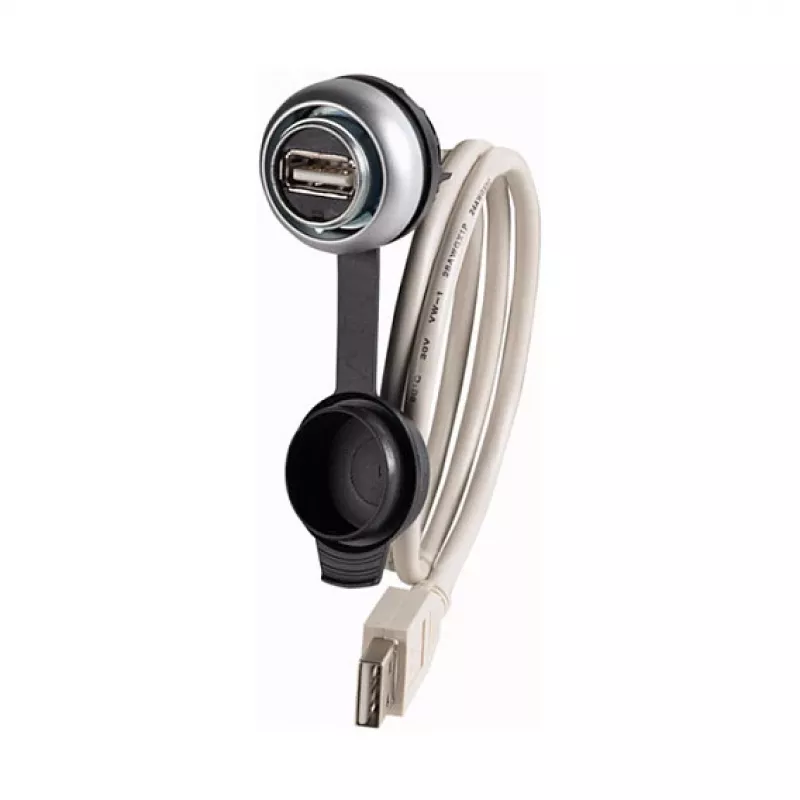

Eaton M22-USB-SA USB Adapter Cable, 0.6 m, USB-A to M22, Black – 107412

Configuring Eaton M22 control devices often requires a reliable, correctly wired interface—without one, commissioning and diagnostics become slow and error-prone. The Eaton M22-USB-SA USB adapter cable solves this by providing a ready-made, high-quality connection between your PC's USB Type-A port and the proprietary M22 interface, ensuring stable and secure data transfer for configuration, diagnostics, and firmware updates.

Who is it for

Automation technicians, panel builders, and maintenance engineers who work with Eaton M22 series pushbuttons, indicators, and control units will find this cable indispensable. It eliminates the need for manual wiring or custom cables, making it the ideal companion for the M22 range.

Main features

• Pre-assembled 0.6 m cable with USB Type-A to M22 interface – ready to use out of the box
• USB 2.0 compliant with data transfer rates up to 480 Mbps
• Shielded PVC jacket with copper conductors for reliable data transmission
• Rugged design withstands operating temperatures from -20°C to +60°C
• 5 V DC powered, with up to 500 mA current capacity
• CE and RoHS certified for industrial and commercial use

Specifications

• Product: USB Adapter Cable
• Length: 0.6 m
• Connector A: USB Type-A
• Connector B: M22 Interface (proprietary)
• USB Standard: USB 2.0
• Data Transfer Rate: up to 480 Mbps
• Jacket Material: PVC
• Shielding: Yes
• Conductor Material: Copper
• Operating Temperature: -20°C to +60°C
• Voltage: 5 V DC
• Current: up to 500 mA
• Compatibility: Eaton M22 Control Devices
• Approvals: CE, RoHS

Tips

Before starting configuration, ensure your PC’s USB port is functioning correctly and that the M22 device is powered as required. For best results, always use the cable in a dry, controlled environment and avoid excessive bending or strain on the connectors.
