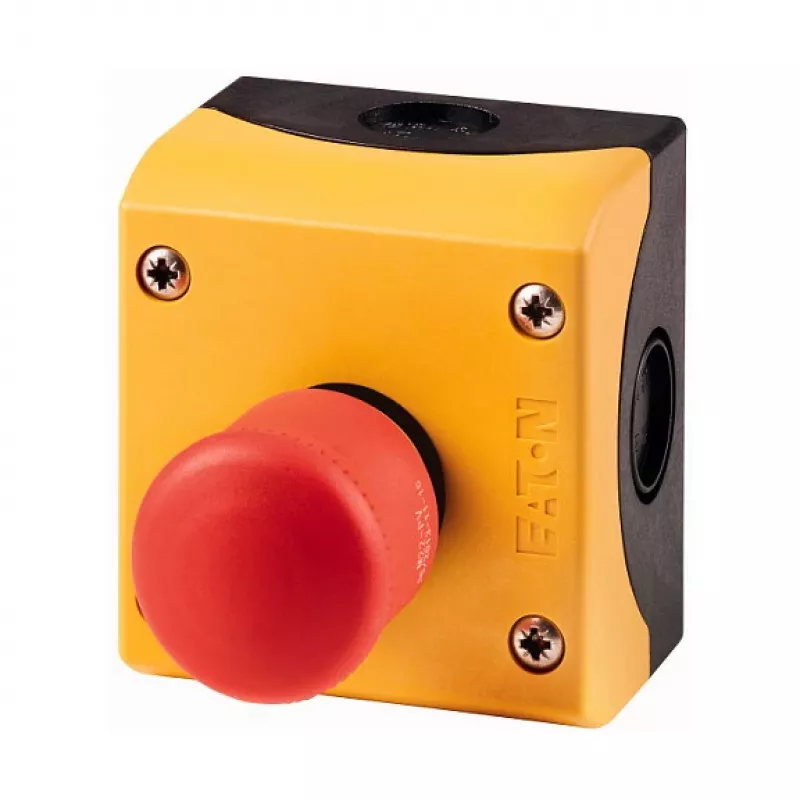

Eaton M22-PV/KC02/IY Emergency Stop Pushbutton, Red/Yellow, Screw Terminal, Plastic, IP66/IP69

In industrial control, a dependable stop function can mean the difference between a safe shutdown and a serious incident. The Eaton M22-PV/KC02/IY is a control station pushbutton purpose-built to deliver a clear, positive HALT/OFF command in high-traffic machinery environments. Its vivid red actuator against a yellow base leaves no ambiguity for operators, while the tough thermoplastic construction stands up to frequent use and demanding washdown duties.

Who is it for

This device suits equipment builders, plant electricians, and safety engineers who need a robust, certified emergency stop control for cabinet doors or operator panels. It fits seamlessly into Eaton's RMQ-Titan M22 range, allowing consistent panel layouts and quick installation.

Main features

• Clear stop/off actuation with screw terminal wiring
• Red-yellow colour scheme for instant recognition
• Plastic housing resistant to corrosion and impact
• IP66 and IP69 ratings against dust, water jets, and steam cleaning
• UL and CSA certifications for North American installations
• 38mm mounting diameter for standard panel cutouts
• Suitable for AC control circuits

Specifications

• Brand: EATON
• Model: M22-PV/KC02/IY
• Order code: 216524
• EAN: 4015082165246
• Category: Pushbutton
• Colour: Red/Yellow
• Material: Plastic
• Connection: Screw terminal
• Protection class: IP66/IP69
• Certifications: UL, CSA
• Electrical rating: AC

Tips

Before wire termination, ensure that all contacts are properly aligned and that the actuator is not damaged. While the housing meets IP69 for high-pressure washdown, always verify that the cable gland or conduit entry is sealed to maintain the rating. For panel mounting, use the recommended 38mm cutout and tighten the fixing nut to the specified torque to avoid stress on the plastic bezel.
