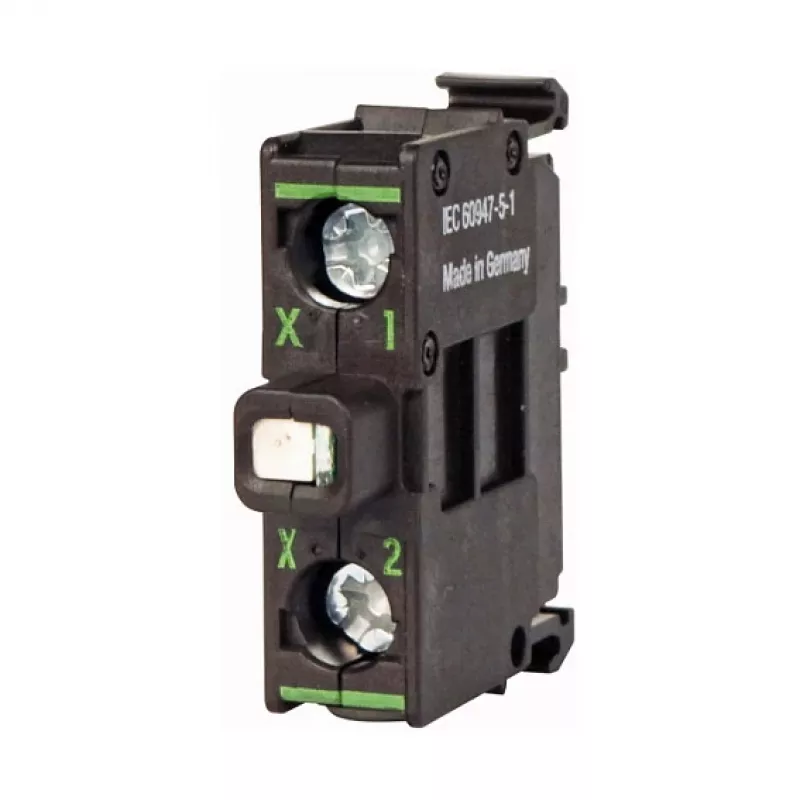

Eaton M22-LEDC230-W LED Indicator Light, White, 230V AC, 22.5mm, Screw Terminals, IP66/67/69K, Black Bezel

The Eaton M22-LEDC230-W is a rugged LED indicator light built for control panels and electrical enclosures. It delivers a bright white light output with an exceptional service life of over 100,000 hours, ensuring reliable status indication for years of continuous operation.

Advantages

This indicator light supports a wide input voltage range of 85–264 V AC, making it suitable for various industrial installations without needing transformers. Its robust construction features a black plastic bezel and IP66, IP67, and IP69K protection ratings, guarding against dust, water jets, and high-pressure cleaning. The screw terminal connection simplifies wiring, while the 22.5 mm mounting diameter allows drop-in replacement in standard control panel cutouts.

Suitable for

• Control panels and switchgear
• Electrical enclosures
• Industrial automation machinery
• Process control and monitoring systems

Key specifications

• Light source: LED, white
• Nominal voltage: 230 V AC (wide range 85–264 V AC)
• Mounting diameter: 22.5 mm
• Connection: screw terminals (2 terminals)
• Protection rating: IP66, IP67, IP69K
• Operating temperature: -25 to +70 °C
• LED lifespan: >100,000 h
• Bezel colour: black
• Front housing material: plastic
• Certifications: CE, UL, CSA

Recommendations

Before installation, verify that the supply voltage is within the specified range and that the mounting hole is properly sealed to maintain the ingress protection rating. For best results, use this indicator light in dry, well-ventilated enclosures.
