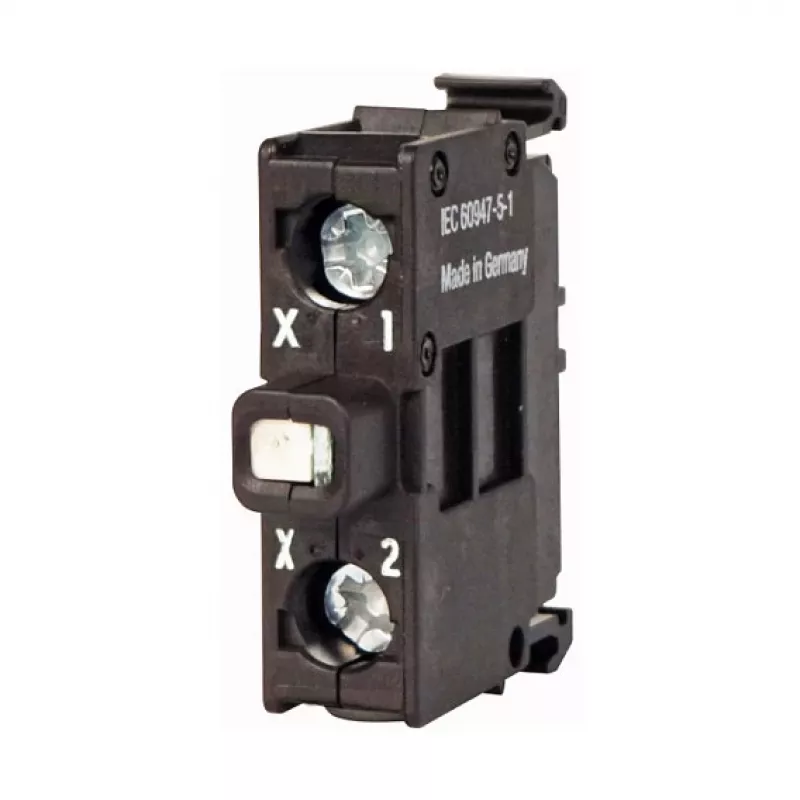

Eaton M22-LEDC-W White LED Element, Base Mounting, 12-230V AC/DC, 8-15mA, Screw Terminals

With a lifespan exceeding 100,000 hours, the Eaton M22-LEDC-W LED element is built for continuous, maintenance-free indication in industrial control panels. This white LED module delivers bright, reliable status signaling across a wide 12–230V AC/DC supply range, making it a universal fit for diverse automation environments.

Overview

Part of the Eaton Moeller M22 series, this LED element is engineered for base mounting and screw terminal connection, ensuring secure integration into pushbuttons, selector switches, and indicator lights. Its compact plastic housing and robust electrical ratings meet IEC/EN 60947-5-1, providing dependable performance in demanding applications.

What stands out

• Ultra-long LED lifespan: over 100,000 hours, virtually eliminating replacement downtime.
• Wide voltage compatibility: operates from 12V to 230V AC/DC, simplifying inventory and installation.
• Low current draw: only 8–15 mA, reducing energy consumption and heat generation.
• High electrical resilience: rated impulse withstand voltage of 4000 V AC and insulation voltage of 300 V AC.
• Versatile mounting: base mounting design fits standard M22 control devices with screw terminals.

Technical details

• Product Type: LED Element
• Light Colour: White
• Series: Eaton Moeller M22
• Supply Voltage Type: AC/DC (Universal)
• Supply Voltage Range: 12–230 V AC/DC
• Current Consumption: 8–15 mA
• Mounting Type: Base Mounting
• Connection Type: Screw Terminals
• Operating Temperature: -25 to +70 °C
• Storage Temperature: -40 to +80 °C
• Degree of Protection (Terminals): IP20
• Standards: IEC/EN 60947-5-1
• Housing Material: Plastic
• Rated Impulse Withstand Voltage (Uimp): 4000 V AC
• Rated Insulation Voltage (Ui): 300 V AC

Our verdict

The Eaton M22-LEDC-W is a robust and energy-efficient LED element that delivers long-lasting, reliable indication for industrial control systems. Its wide voltage range and low power consumption make it a versatile choice for panel builders and maintenance teams seeking a dependable signaling solution.
