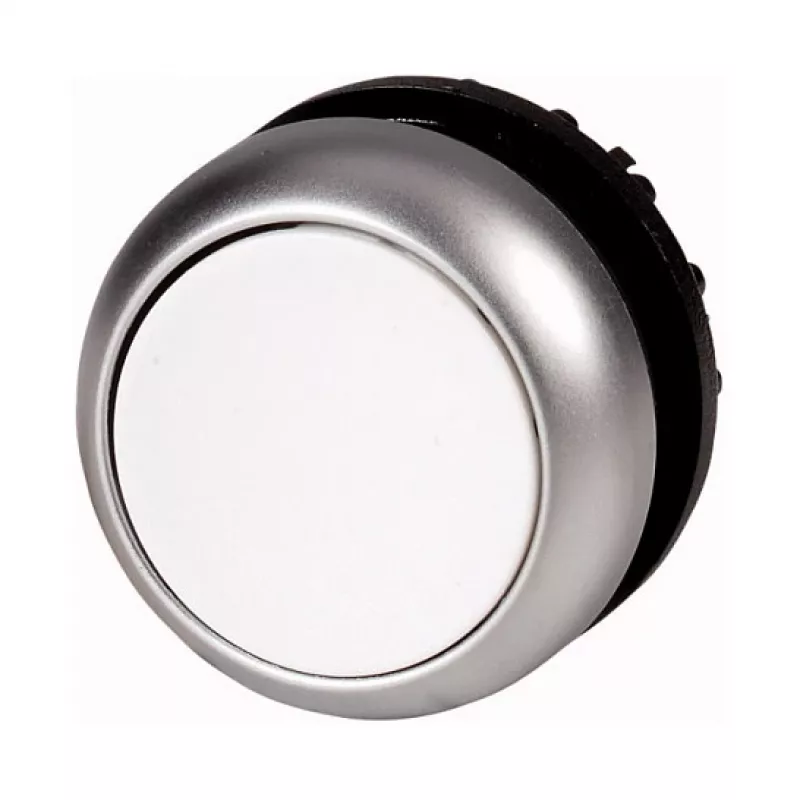

Eaton M22-DL-W Pushbutton Actuator, White, Metal Front Ring, 22.5mm

An Eaton M22-DL-W pushbutton actuator suits control panels in industrial machinery, packaging lines, and process automation where a clean, flush operator interface is required. Its momentary action and robust metal front ring deliver precise feedback and lasting durability in demanding environments.

Key specifications

• Product type: Pushbutton actuator
• Operation type: Momentary
• Actuator colour: White
• Front ring material: Metal (titanium finish)
• Mounting diameter: 22.5 mm
• Series: Eaton M22
• Degree of protection: IP66, IP67, IP69K; NEMA 4X, 13
• Illumination: Non-illuminated
• Actuator shape: Round; flush design
• Contact blocks: Not included (actuator only)
• Mechanical durability: > 5 million operations
• Operating temperature: -25 to +70 °C
• Standards: IEC/EN 60947; RoHS compliant

Why choose it

Eaton's M22 series is known for modular flexibility and exceptional build quality. This actuator's flush design prevents accidental activation, while the metal front ring withstands impact and corrosion. With high environmental protection and long mechanical life, it reduces maintenance and ensures reliable operation even in washdown or outdoor installations.

Ideal use cases

• Industrial control panels and machinery
• Process automation with high hygiene requirements
• Outdoor or wash-zone applications needing IP69K
• Emergency stop or start functions when combined with contact blocks

Good to know

This actuator is a complete operator interface unit but does not include contact blocks. Pair it with compatible M22 contact elements to build a functional pushbutton switch. The white actuator offers high visibility, and the titanium-coloured metal ring adds a modern feel to industrial equipment.
