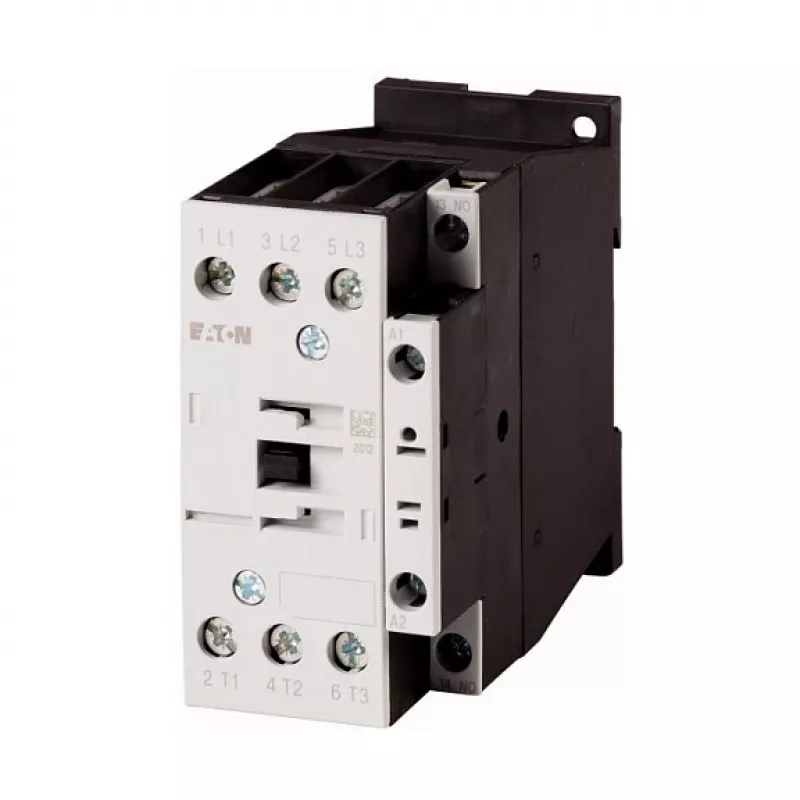

Eaton DILM32-10 Power Contactor – 3 Poles + 1 NO Auxiliary, 230V AC 50/60Hz Coil, 15kW @ 400V AC-3, 32A, Screw Terminals, IP20, 277268

This Eaton DILM32-10 power contactor is engineered for demanding motor control applications, combining robust switching performance with a compact footprint. Designed to handle three-phase motors up to 15 kW (AC-3 at 400 V), it delivers reliable operation and long service life even in high-cycle environments. The 230 V AC coil ensures straightforward integration with standard control circuits.

Highlights

• 3-pole contactor with 1 normally open auxiliary contact
• Rated operational current: 32 A (AC-3, 400 V)
• Switching power: 15 kW at 400 V AC-3
• Coil voltage: 230 V AC, 50/60 Hz
• Rated insulation voltage: 690 V; impulse withstand: 6 kV
• Screw terminals for secure and tool-friendly wiring
• IP20 finger-safe protection for panel mounting

In daily use

This contactor is a practical choice for motor starters, pump controls, compressor units, and conveyor systems. Its compact dimensions allow high-density mounting inside control cabinets, while the screw terminals accept standard conductors and simplify maintenance. The unit operates reliably across a wide temperature range, making it suitable for both light industrial and heavy-duty environments.

Full specifications

• Number of poles: 3
• Auxiliary contacts: 1 NO
• Rated operational current (AC-3, 400 V): 32 A
• Rated operational power (AC-3, 400 V): 15 kW
• Coil voltage: 230 V AC
• Coil frequency: 50/60 Hz
• Rated insulation voltage (Ui): 690 V AC
• Rated impulse withstand voltage (Uimp): 6 kV
• Mounting: DIN rail or screw mounting
• Terminal type: Screw terminals
• Degree of protection: IP20
• Operating temperature: -25°C to +60°C
• Mechanical durability: 10 million operations
• Electrical durability (AC-3): 1.5 million operations
• Standards: IEC/EN 60947, VDE 0660, UL, CSA

Final note

Backed by Eaton's engineering expertise, this DILM32-10 contactor meets IEC/EN 60947 standards and offers a dependable solution for motor control. Whether upgrading existing panels or building new ones, its proven design ensures long-term performance and safety.
