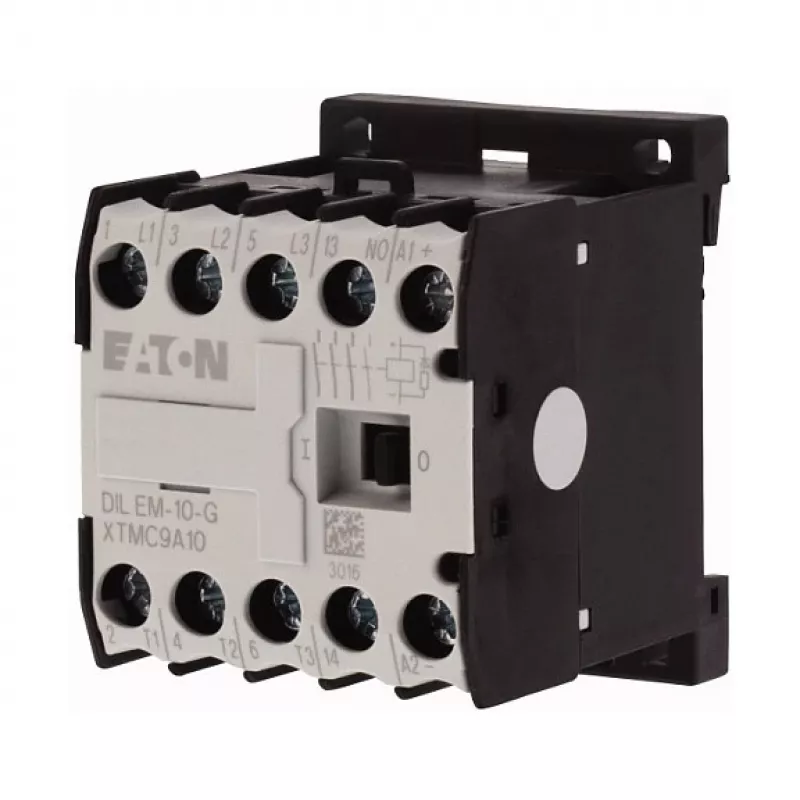

Eaton DILEM-10-G 24VDC Mini Contactor – 3 Poles + 1 NO, 4 kW @ 400V AC-3

This compact Eaton DILEM-10-G contactor delivers reliable switching performance for motor control and general automation tasks. With a 24 V DC coil and a 4 kW rating at 400 V AC-3, it suits high-cycle applications where precision and durability matter.

Highlights

• 3 main poles plus 1 normally open auxiliary contact
• 24 V DC coil for direct control circuits
• Rated operational power of 4 kW (AC-3, 400 V) and current of 9 A
• Compact DILEM frame: 45 mm width, 52 mm height, 58 mm depth
• Screw terminals and DIN rail / screw mounting for straightforward installation
• IP20 protection and IEC/EN 60947 compliance

In daily use

Ideal for controlling three-phase motors in conveyors, pumps, fans, and machine tools. The integrated auxiliary NO contact provides feedback or interlocking without extra add-ons. The 24 V DC coil makes it compatible with modern PLC outputs and safe low-voltage control systems.

Full specifications

• Product type: Mini contactor
• Number of main poles: 3
• Auxiliary contacts: 1 NO
• Coil voltage: 24 V DC
• Rated operational power (AC-3, 400 V): 4 kW
• Rated operational current (AC-3, 400 V): 9 A
• Rated operational voltage: up to 690 V AC
• Utilization categories: AC-1, AC-3, AC-4, DC-1, DC-3, DC-5
• Terminal type: Screw terminals
• Mounting: DIN rail / screw mounting
• Degree of protection: IP20
• Standards: IEC/EN 60947, VDE 0660, UL, CSA
• Ambient operating temperature: -25 to +50 °C
• Electrical life (AC-3): 1.5 × 10^6 operations
• Mechanical life: 10 × 10^6 operations
• Frame size: DILEM
• Dimensions (W × H × D): 45 × 52 × 58 mm

Final note

Backed by Eaton's engineering heritage, the DILEM-10-G combines space-saving design with robust performance. Its long mechanical endurance reduces maintenance intervals, making it a cost-effective choice for demanding industrial environments.
