EATON CORPORATION Eaton EllIPSe Pro UPS 1 Fase Line-interactive Tower 1200va/750w Din Outlet

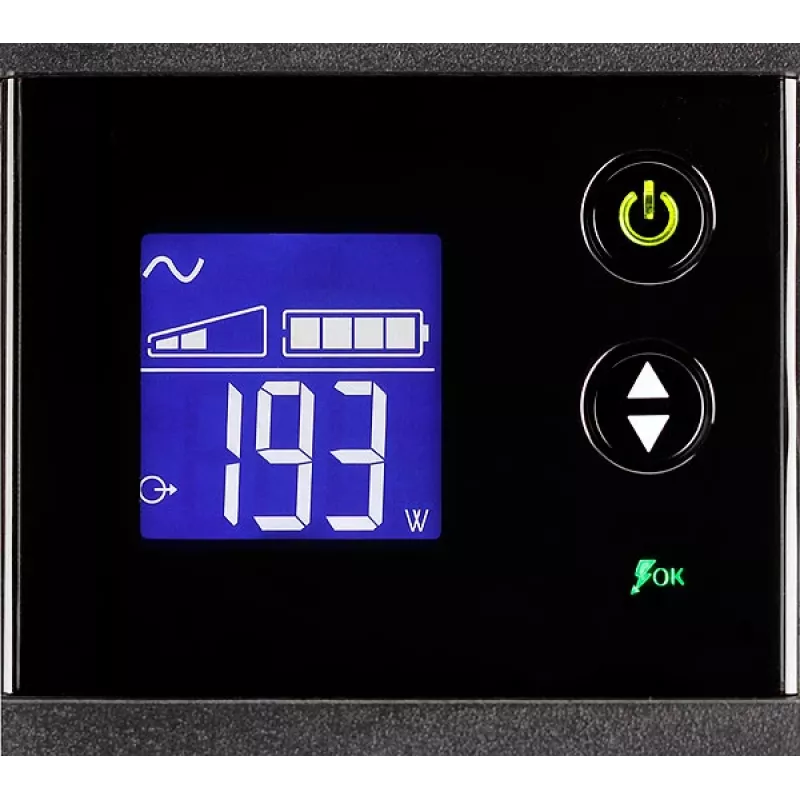

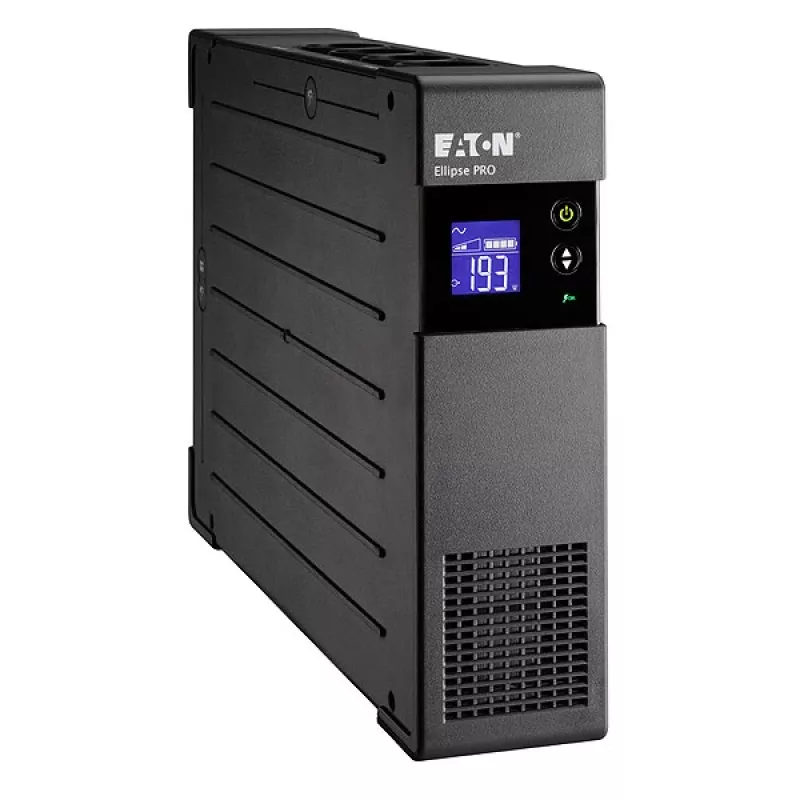

The Eaton Ellipse PRO 1200 DIN is a line-interactive uninterruptible power supply (UPS) with 1.2 kVA (750 W) output capacity, designed to protect workstations running demanding applications. The unit combines Automatic Voltage Regulation (AVR) with buck and boost, an LCD display for real-time status and measurements, EcoControl power outlets for reduced energy consumption and Advanced Surge Reduction compliant with IEC 61643-1. It includes up to 8 Type F AC outlets, a USB 2.0 port, a C14 power plug and a sealed lead-acid battery that provides typical runtime of about 9 minutes at half load. The UPS is supplied in a compact tower form factor and can be rack-mounted (2U), facilitating installation in office and server environments.

Advantages

The Eaton Ellipse PRO 1200 DIN delivers stable, clean output power through AVR (buck and boost) and provides real-time monitoring via an integrated LCD. EcoControl outlets reduce energy consumption by selectively switching peripherals, and Advanced Surge Reduction offers IEC 61643-1 compliant surge protection. The unit supports orderly shutdown and configuration through a USB port and Eaton UPS Companion software. Its extra-flat design and rack-mount capability make it suitable for constrained office or network rack spaces.

Suitable for

• Protecting desktop PCs and workstations running business or professional applications
• Supporting small office servers, network equipment and peripherals
• Safeguarding internet, Ethernet and telephone line connections from surges
• Environments requiring compact rack- or tower-mountable UPS solutions

Key specifications

• Output power capacity: 1.2 kVA (750 W)
• AC outlets: 8 × Type F
• USB ports: 1 × USB 2.0
• Form factor: tower, rack-mountable (2U)
• Battery type: sealed lead-acid; typical backup ~9 minutes at half load
• Weight: 9.9 kg
• Colour: Black
• Compliance: IEC/EN safety standards; surge protection IEC 61643-1

How to use

Install the Eaton Ellipse PRO 1200 DIN in a stable, well-ventilated area either as a tower or mounted in a 2U rack space. Connect critical equipment to the UPS outlets, attach the USB cable to a management PC and install Eaton UPS Companion software to enable safe automatic shutdown, energy metering and configuration. Verify protected data lines (Ethernet/telephone) are connected to the surge-protection ports if applicable. Test the setup by performing a simulated power interruption to confirm orderly shutdown and expected runtime at your typical load.

Recommendations

Place the UPS on a level surface or secure in a rack, avoid blocking ventilation, perform periodic battery self-tests and replace the sealed lead-acid battery according to the manufacturer’s service recommendations to ensure reliable backup performance.
