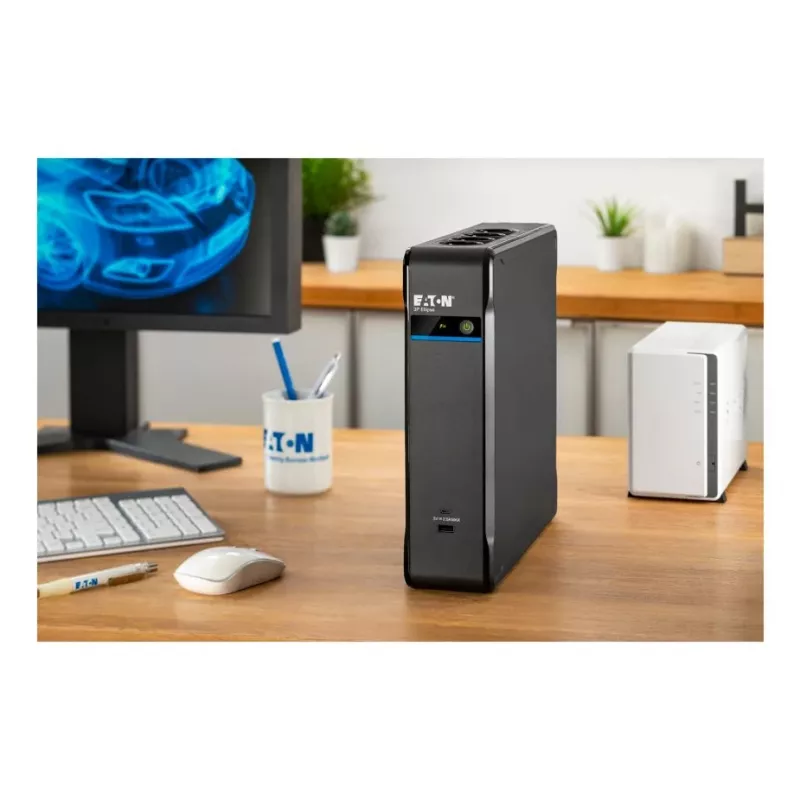

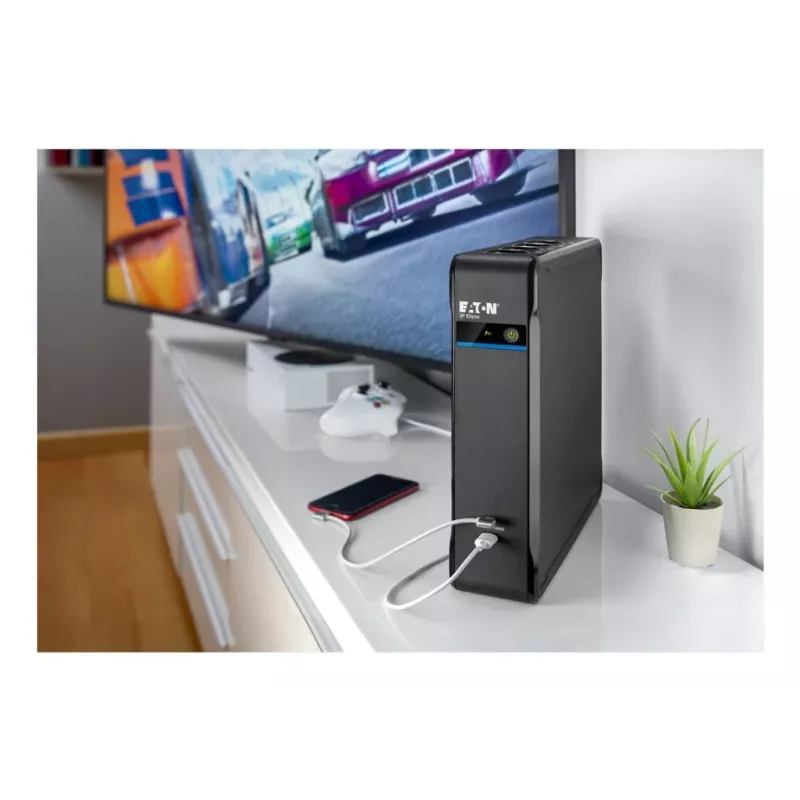

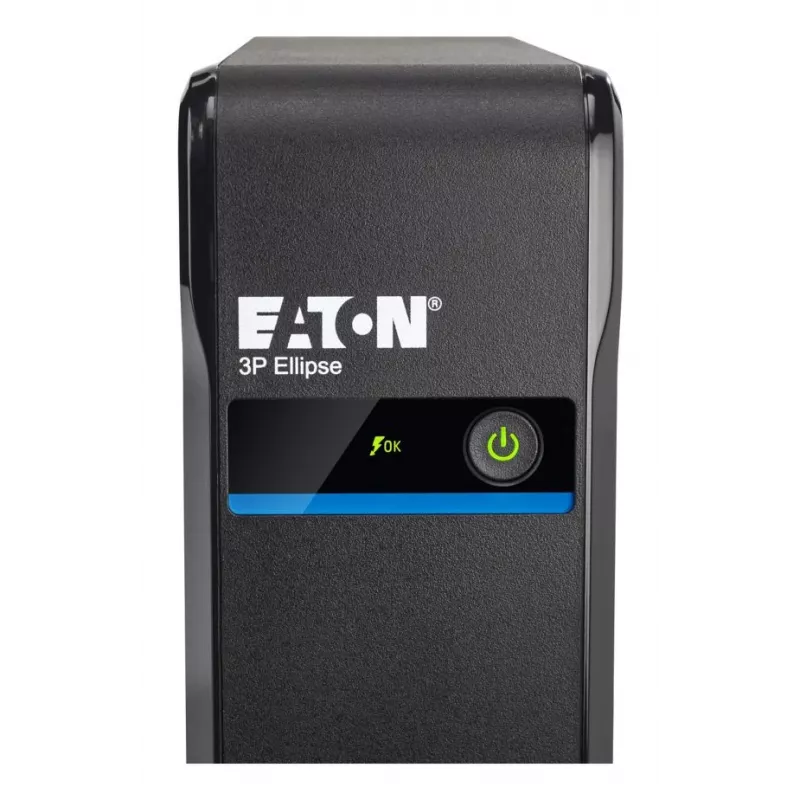

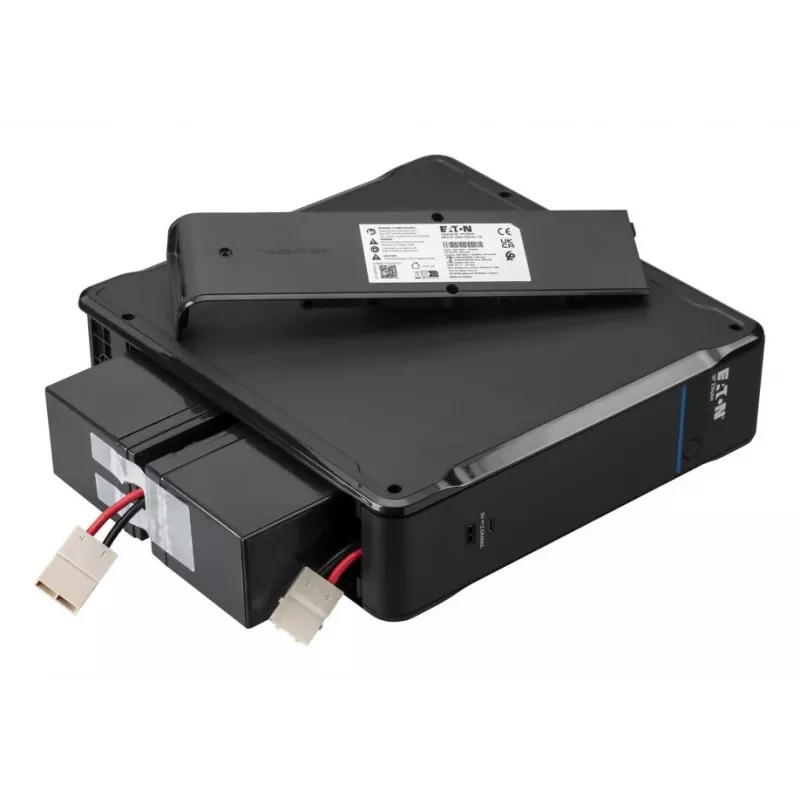

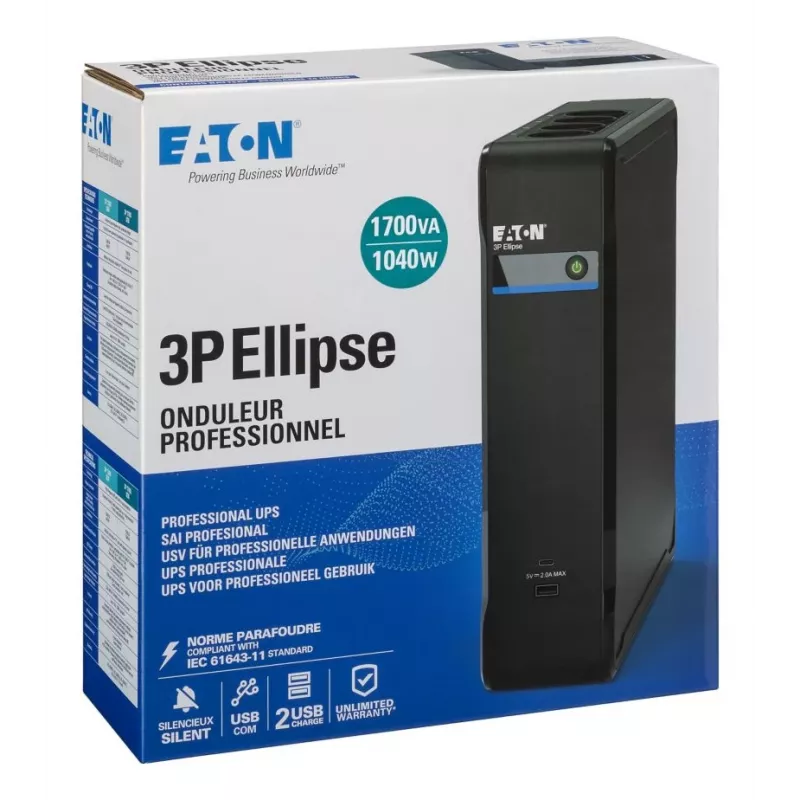

EATON CORPORATION 3P EllIPSe 1700 USB FR 1700VA/1040W Eaton Ellipse 1700 USB FR line-interactive UPS rated at 1700VA / 1040W. Output voltage 230 V with four output connections and 2 x USB 3.0 ports. Features a cold-start function and a built-in lithium-ion battery (12 V cell). Designed to provide re... Read More
Stock 30 Code 107702 Brand EATON Model 3P1700UF Warranty 3 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

EATON CORPORATION 3P EllIPSe 1700 USB FR 1700VA/1040W

Eaton Ellipse 1700 USB FR line-interactive UPS rated at 1700VA / 1040W. Output voltage 230 V with four output connections and 2 x USB 3.0 ports. Features a cold-start function and a built-in lithium-ion battery (12 V cell). Designed to provide reliable backup power and surge protection for connected equipment.

Specifications

  • Depth: 312 mm
  • Height: 305 mm
  • Operating temperature (T-T): 0 - 40 °C
  • Product colour: Black
  • Weight: 7.8 kg
  • Width: 81 mm
  • Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Ukr Cm
  • Compliance certificates: CB, CE, RoHS, WEEE
  • Package type: Box
  • Waste Electrical and Electronic Equipment (WEEE) compliance: Yes
  • Control type: Buttons
  • Form factor: Tower
  • USB port: Yes
  • USB 2.0 ports quantity: 2
  • Power consumption (average operating): 32.2 W
  • Cables included: USB cable
  • Ethernet LAN (RJ-45) ports: 1
  • Quick installation guide: Yes
  • Battery capacity: 9 Ah
  • Battery voltage: 12 V

Genuine Eaton product — MPN: 3P1700UF · EAN: 3553340621413.

Key Highlights
  • Standby (Offline)
  • 1.7 kVA 1040 W
  • Waveform: Stepwise
  • 8 AC outlet(s)
  • 12 V 9 Ah
  • Tower Black
Specifications
AC outlet types
C13 coupler
AC outlets quantity
8 AC outlet(s)
Auto shut-off
Yes
Battery capacity
9 Ah
Battery voltage
12 V
Cables included
USB cable
Certification
IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Ukr Cm
Compliance certificates
CB, CE, RoHS, WEEE
Control type
Buttons
Depth
312 mm
Display type
LED
Efficiency
97%
Efficiency (ECO mode)
97%
Ethernet LAN (RJ-45) ports
1
Form factor
Tower
Height
305 mm
Input connection type
C14
Input frequency
46/70 Hz
Input operation voltage (max)
284 V
Input operation voltage (min)
161 V
Noise level
25 dB
Nominal input voltage
220-240 V
Number of batteries supported
2
Number of input phases
1
Number of output phases
1
Operating temperature (T-T)
0 - 40 °C
Output frequency
50/60 Hz
Output operation voltage (max)
284 V
Output operation voltage (min)
161 V
Output power
1040 W
Output power capacity
1.7 kVA
Output power factor
0.6
Package type
Box
Power consumption (average operating)
32.2 W
Product colour
Black
Quick installation guide
Yes
Relative humidity
0 - 95%
Surge protection
Yes
UPS topology
Standby (Offline)
USB 2.0 ports quantity
2
USB port
Yes
Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
Waveform
Stepwise
Weight
7.8 kg
Width
81 mm

Leaflet

Open Leaflet

Document

Open Document

Document

Open Document

Document

Open Document
