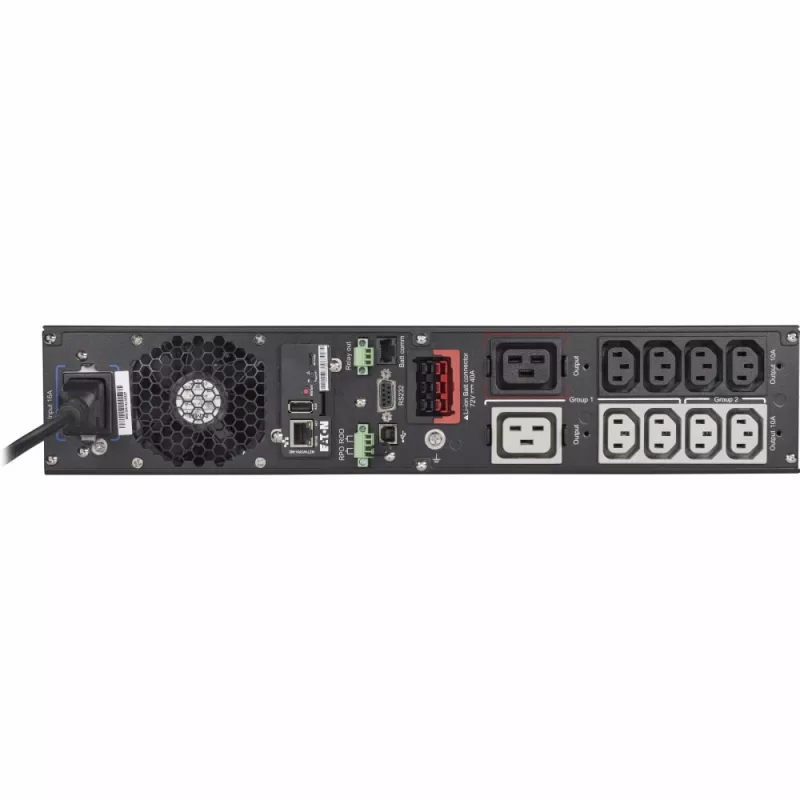

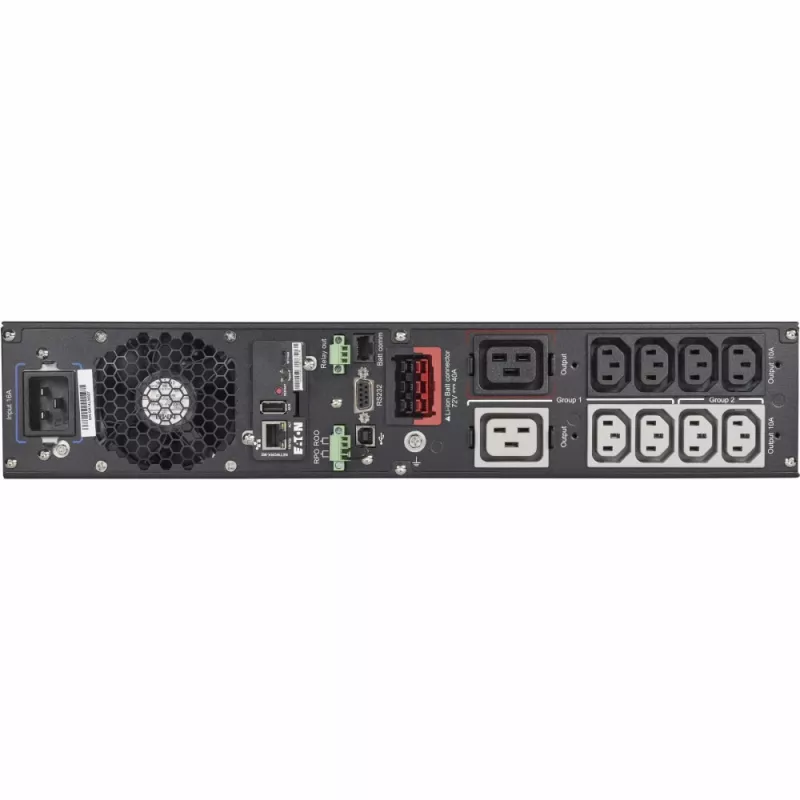

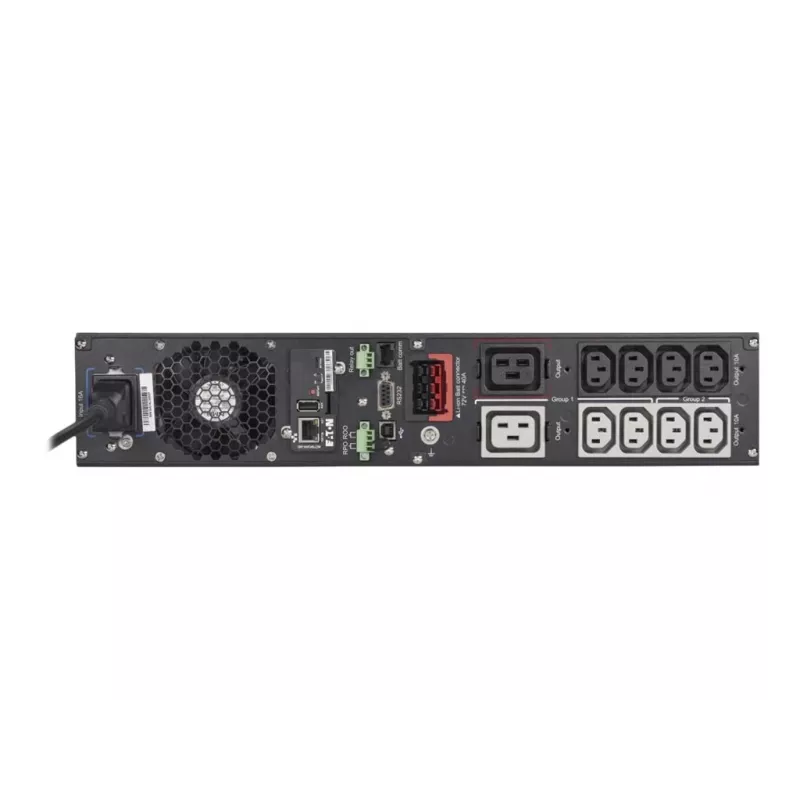

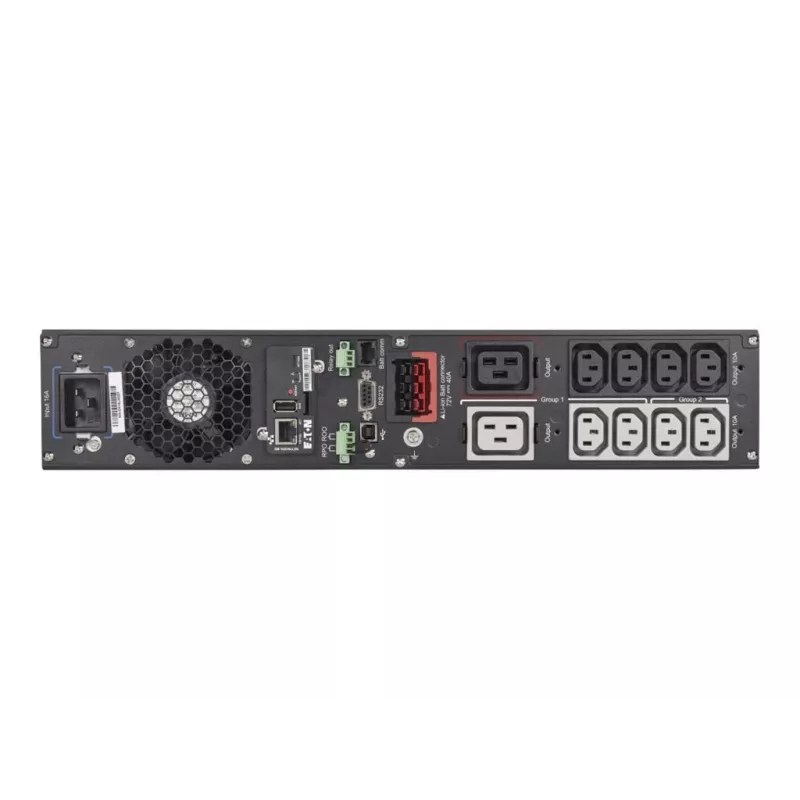

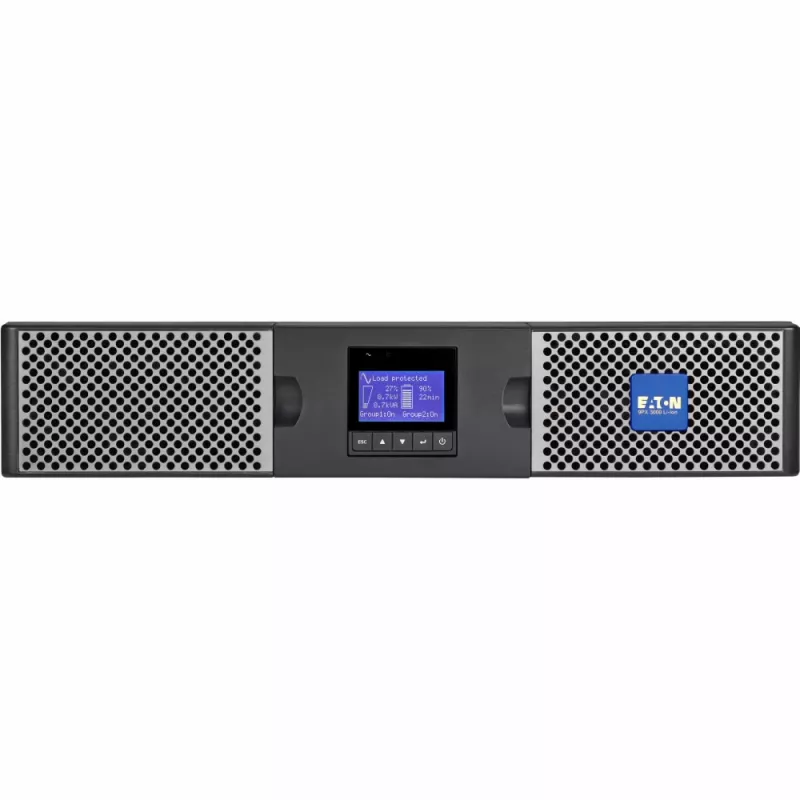

Eaton 9PX3000IRTN-L 3000VA Lithium-Ion Rack/Tower UPS with Network Management

The Eaton 9PX3000IRTN-L stands apart from conventional double-conversion UPS systems by integrating lithium-ion battery technology, delivering up to three times the battery service life and significantly reduced weight compared to traditional valve-regulated lead-acid models. This 3000 VA / 2400 W UPS provides continuous, clean power for critical IT infrastructure, edge computing, and industrial applications, ensuring seamless operation during power disturbances.

Highlights

• 3000 VA / 2400 W double-conversion online topology for maximum power protection
• Lithium-ion batteries offer longer lifespan, lower total cost of ownership, and lighter weight
• Versatile rack/tower convertible form factor (2U) with included rail kit
• Integrated Gigabit network card for remote monitoring and management via Eaton Intelligent Power Manager
• High efficiency up to 95% in online mode, reducing energy consumption and cooling costs
• Advanced LCD display with intuitive navigation for local configuration and status
• Output power factor 0.8, supporting modern IT equipment with high power demands
• Wide input voltage and frequency range, reducing battery usage and extending battery life
• Hot-swappable battery modules for easy replacement without downtime
• Compatible with Eaton's Intelligent Power Software suite for graceful shutdown and monitoring

In daily use

Deploy the 9PX3000IRTN-L in server rooms, network closets, or industrial environments where reliable power is non-negotiable. Its rack-mountable design saves valuable space, while the tower option provides flexibility for standalone installations. The included network management card enables integration with virtualization platforms like VMware and Hyper-V, allowing automated live migration during outages. The bright LCD panel simplifies setup and provides real-time status, while the lithium-ion batteries require no maintenance and perform reliably at higher temperatures than lead-acid alternatives.

Full specifications

• Topology: Double-conversion online
• Power rating: 3000 VA / 2400 W
• Input voltage: 200/208/220/230/240 V AC
• Input frequency: 50/60 Hz (auto-sensing)
• Output voltage: 200/208/220/230/240 V AC (selectable)
• Output frequency: 50/60 Hz (sync to input)
• Battery type: Lithium-ion (LiFePO4)
• Battery runtime: Up to 10 minutes at full load (typical)
• Recharge time: Less than 3 hours to 90% capacity
• Communication: USB, RS-232, Gigabit Ethernet (SNMP, HTTP, Modbus)
• Management software: Eaton Intelligent Power Manager (IPM) included
• Form factor: Rack-mountable (2U) / Tower convertible
• Dimensions (W x D x H): 440 x 685 x 86.5 mm (rack), 440 x 685 x 86.5 mm (tower with feet)
• Weight: 18.2 kg
• Operating temperature: 0°C to 40°C
• Certifications: CE, cULus, TUV, EAC, RCM, KC, NOM
• Warranty: 3 years on electronics, 5 years on lithium-ion batteries

Final note

For organizations seeking a future-proof power protection solution with lower environmental impact and reduced maintenance, the Eaton 9PX3000IRTN-L delivers exceptional performance and reliability, backed by Eaton's global service and support network.
