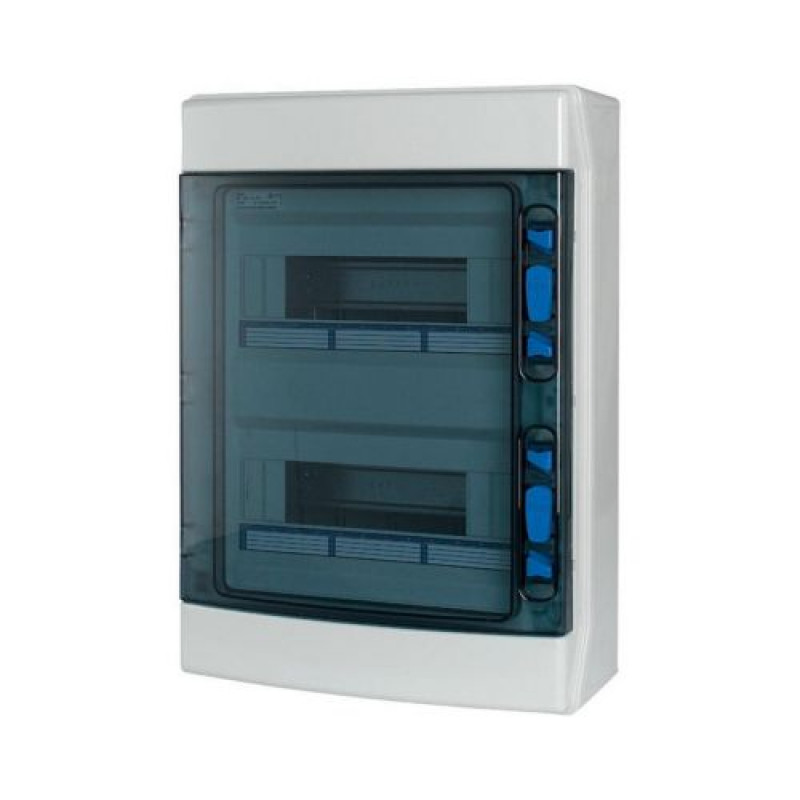

Eaton 174198 IKA-2/24-ST surface-mounted distribution enclosure, 24 modules, IP65

Eaton 174198 IKA-2/24-ST surface-mounted distribution enclosure, 24 modules, IP65
Eaton 174198 IKA-2/24-ST surface-mounted distribution enclosure, 24 modules, IP65
R4,787
Eaton 174198, model IKA-2/24-ST, is a surface-mounted enclosure for an indoor electrical distribution board. Two rows accommodate 12 module units each, for a total of 24. The enclosure body is light-grey ABS in RAL 7035 and the hinged door is transparent. It is an enclosure for installing compatible... Read More
Stock 4 Code 3585924 Brand EATON Model 174198 Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

Eaton 174198, model IKA-2/24-ST, is a surface-mounted enclosure for an indoor electrical distribution board. Two rows accommodate 12 module units each, for a total of 24. The enclosure body is light-grey ABS in RAL 7035 and the hinged door is transparent. It is an enclosure for installing compatible modular devices, not a populated circuit-breaker board.

The professional ST version includes DIN device-support rails and neutral/protective-conductor screw terminals. The supplied parts also include sealing caps, circuit identification and a six-module reserve cover. The design can be sealed. IP65 ingress protection, IK08 impact resistance and electrical protection class II are specified for the enclosure; these ratings do not make this ABS variant an outdoor UV-resistant model.

The manufacturer states a rated operating voltage of 415 V AC at 50 Hz, insulation voltage of 1000 V AC and an ambient temperature range of −25 to +40 °C. The glow-wire test value is 650 °C. Product dimensions are 310 × 436 × 145 mm (width × height × depth), with a stated net mass of 2.7 kg. Referenced standards are EN 62208 and IEC/EN 60670-24.

Specifications
AC input frequency
50 Hz
Brand
Eaton
Category
Electrical distribution enclosure
Certification
EN 62208; IEC/EN 60670-24
Depth
145 mm
EAN
4015081706600
Features
Indoor surface mounting; 2 × 12 modules; transparent door; IP65; IK08; protection class II
Height
436 mm
In the Box
Enclosure; DIN support rails; N/PE screw terminals; sealing caps; circuit labels; six-module reserve cover
International Protection (IP) code
IP65
Material
ABS
Model
IKA-2/24-ST
Mounting type
Indoor surface mounting
MPN
174198
Operating temperature (T-T)
-25 – 40 °C
Product colour
Light grey (RAL 7035)
Product type
Electrical distribution enclosure
Protection class
II
Rated voltage (AC)
415 V
Type
Electrical distribution enclosure
Weight
2.7 kg
Width
310 mm
