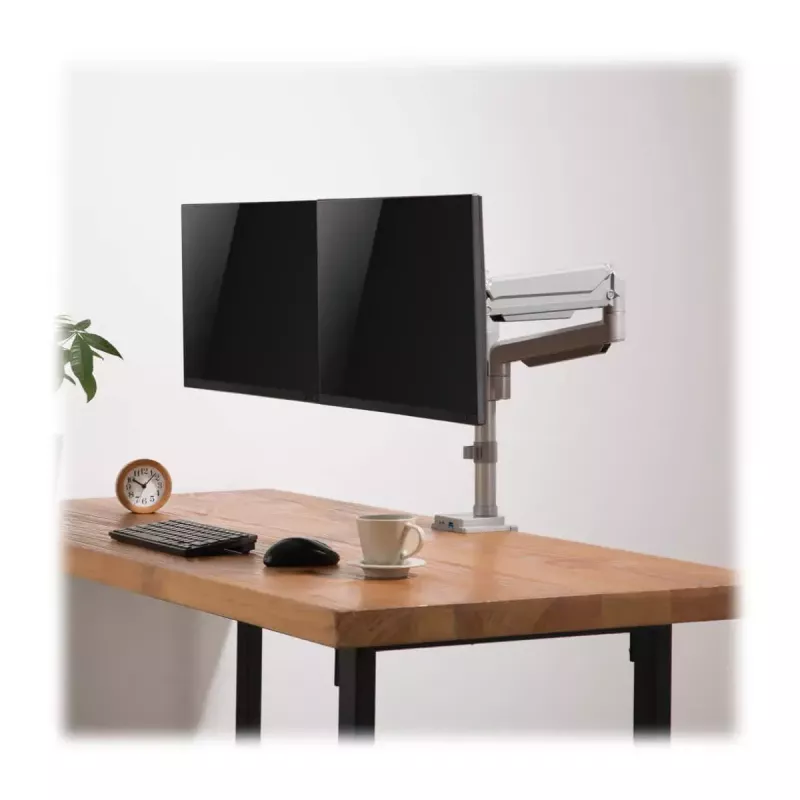

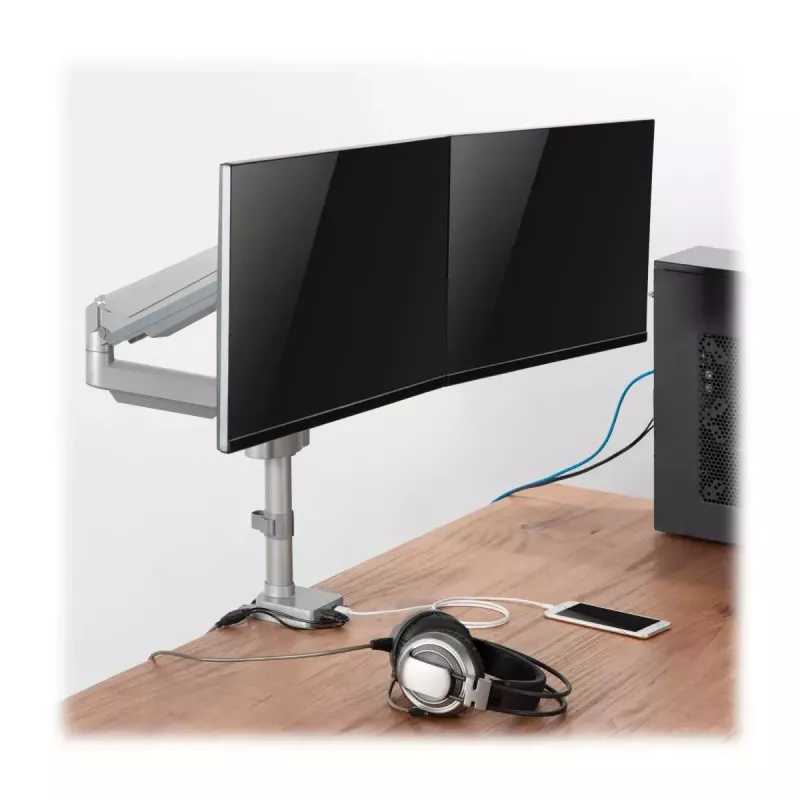

Dual-display gas-arm monitor mount Tripp Lite (EATON) DDR1732DAL for 13–34 inch screens, clamp or grommet, USB & audio ports, silver

The Tripp Lite (EATON) DDR1732DAL is a dual-display gas-arm monitor mount that raises two 13–34" flat or curved screens above your desk to free up workspace. The aluminum frame and gas spring arms allow frequent adjustments while supporting up to 8.9 kg (19.8 lb) per arm. The mount installs using a desk clamp or the included grommet for bolt-through mounting. Integrated ports at the base include USB 3.0 and two 3.5 mm audio jacks for connecting peripherals.

Advantages

The DDR1732DAL provides flexible positioning with independent gas-assisted arms for quick, smooth screen adjustments. Its durable aluminum construction tolerates regular use, and dual mounting options (clamp or grommet) fit a variety of desks and workstations. Built-in USB and audio ports add convenient connectivity without requiring extra desk adapters or hubs.

Suitable for

• Home office setups with two monitors
• Professional workstations requiring ergonomic screen positioning
• Shared desks or hot-desking environments where surface space must be maximized

Key specifications

• Compatible screen size: 13–34 inches
• Maximum load per arm: 8.9 kg (19.8 lb)
• VESA mounting patterns supported: 75 x 75 mm and 100 x 100 mm
• Arm adjustment ranges: tilt -90° to +90°, swivel -90° to +90°, 90° rotation
• Mounting options: desk clamp or grommet (bolt-through)
• Frame material: aluminum
• Integrated ports: USB 3.0 and two 3.5 mm audio jacks

How to use

Attach the VESA plates to the backs of your monitors, then secure each display to an arm and adjust the arm height and tension as needed. Choose clamp mounting for quick installation on the desk edge or use the included grommet for a bolt-through installation if you prefer a more permanent fit. Use the gas-assisted adjustments to tilt, swivel and rotate each screen until you achieve comfortable viewing angles. Connect a phone or USB device to the USB 3.0 port and plug microphone and speaker cables into the audio jacks if required.

Recommendations

Verify each monitor’s weight and VESA pattern before installation; ensure the combined load does not exceed the specified capacity per arm. Adjust arm tension gradually and test movement limits to prevent abrupt shifts. For optimal ergonomics, position the top of the screens at or slightly below eye level and minimize glare by fine-tuning tilt and swivel.
