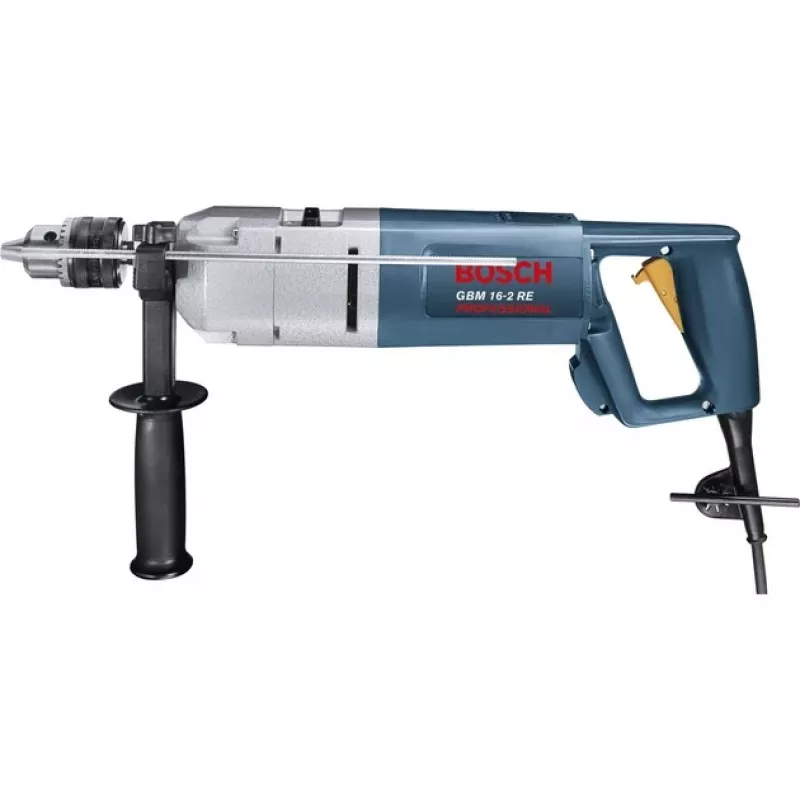

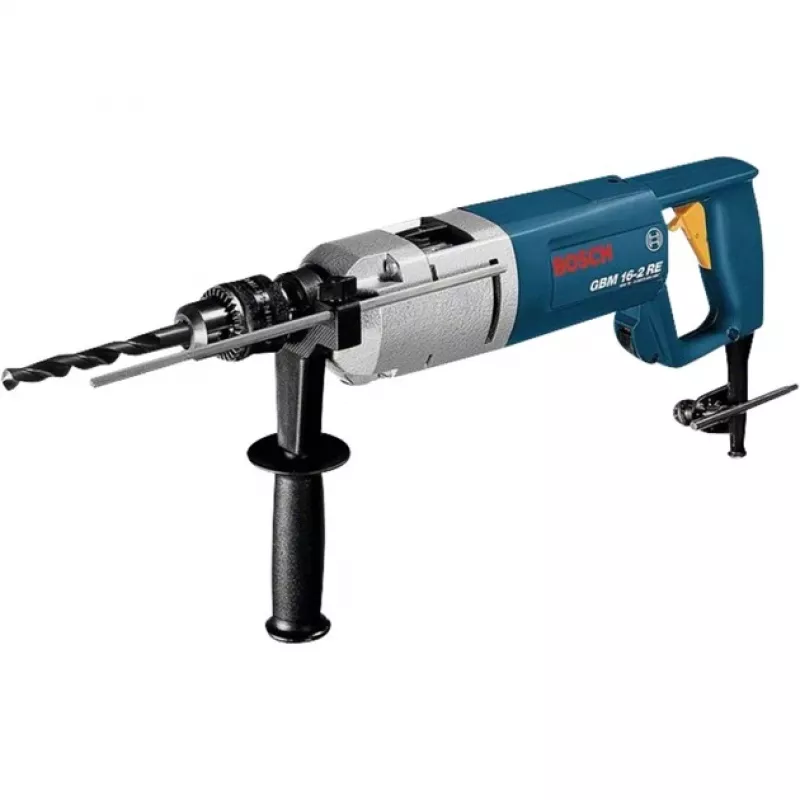

Drill Bosch 0 601 120 503, 1450 RPM, 3.7 kg, 1050 W

The Bosch 0 601 120 503 drill is a corded electric drill with an input power of 1050 W and a maximum no-load speed of 1450 RPM. It is suitable for drilling in wood up to 40 mm and in steel up to 16 mm. The tool includes a keyed 16 mm chuck, a 43 mm spindle collar compatible with European drill stands, and comes with an auxiliary handle and a 310 mm depth stop.

Advantages

This drill features a synchronised 2-speed geared transmission that can be switched during operation, a switch that can be operated and locked with one finger for ease of use, and roller bearing-mounted motor and gears for extended lifetime. The spindle collar diameter of 43 mm adheres to the European standard, allowing use in drill stands, and the tool is also suitable for stirring tasks.

Suitable for

Key specifications

How to use

Secure the appropriate drill bit in the keyed 16 mm chuck and tighten it firmly. Select the required gear for the material and speed; the synchronised 2-speed transmission allows switchover during operation. If precise depth is needed, fit and adjust the 310 mm depth stop. For tasks requiring extra control, attach the auxiliary handle. Connect the drill to an appropriate AC power source and operate the switch; the switch can be locked with one finger for continuous operation. When mounting in a drill stand, use the 43 mm spindle collar.

Recommendations

Use suitable drill bits for the material being worked (wood or steel), wear appropriate personal protective equipment, and allow the motor to cool during extended heavy use to maintain tool life. Ensure proper clamping when using a drill stand and avoid exceeding the specified drilling diameters.
