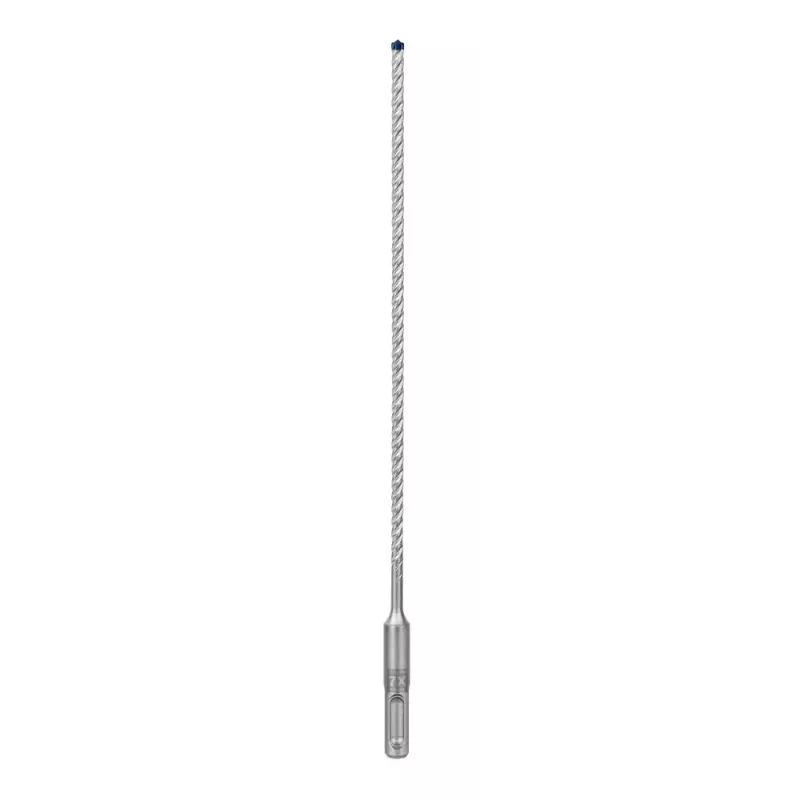

Drill Bit Bosch SDS plus-7X 5mm 265mm

EXPERT SDS plus-7X Hammer Bits for rotary hammer drills. The Bosch SDS plus-7X drill bit has a 5 mm diameter and a 265 mm length, designed for drilling into concrete, reinforced concrete and hard stone with a rotary hammer. Built with a Full Carbide Head and Bosch Carbide Technology, the bit is engineered for extended life and consistent performance in demanding drilling tasks.

Advantages

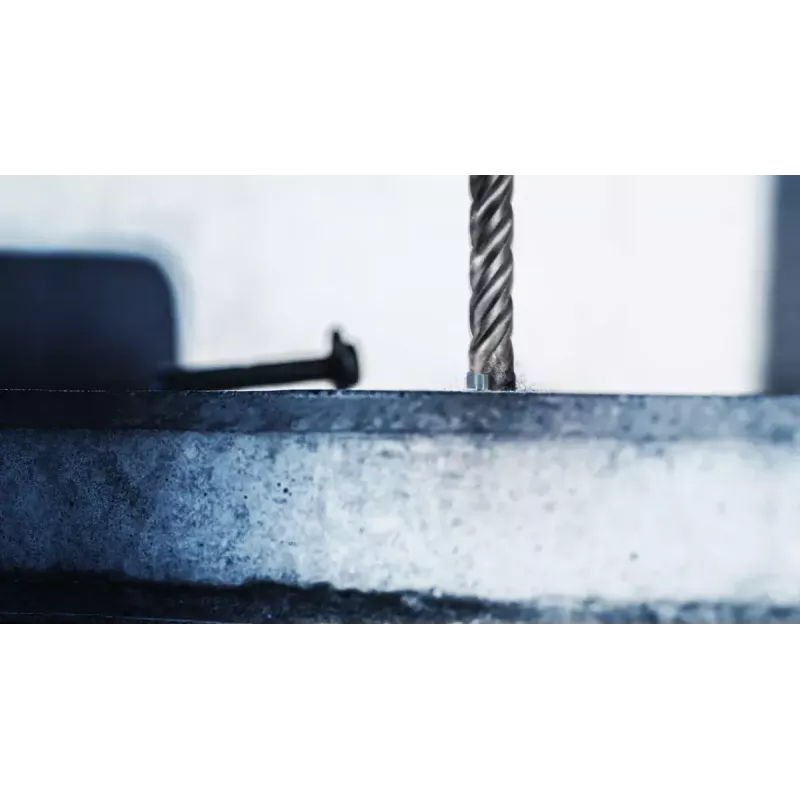

The Full Carbide Head with a 4-cutter design resists jamming in rebar and reduces breakage compared with standard two-cutter bits. The carbide tip and Bosch welding technology provide a highly durable tip connection and improved impact resistance. Overall construction transmits drilling energy efficiently for reliable penetration and longer tool life, lasting up to three times longer than a standard drill bit under comparable conditions.

Suitable for

• Drilling holes for fixings and installations in cured concrete
• Drilling into hardened reinforced concrete
• Drilling in hard natural stone such as granite and gneiss

Key specifications

• Brand: Bosch
• Model: EXPERT SDS plus-7X

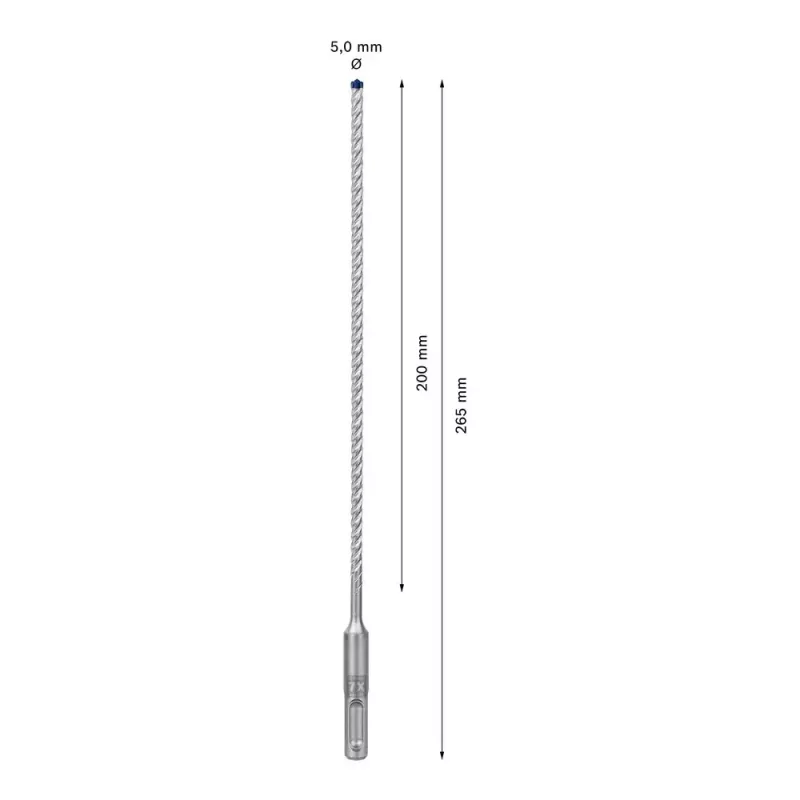

• Diameter: 5 mm
• Overall length: 265 mm
• Shank type: SDS plus (for rotary hammer drills)
• MPN: 2608900062
• EAN: 4059952531359

How to use

Fit the SDS plus-7X bit into a compatible SDS plus rotary hammer according to the tool manufacturer’s instructions. Select hammer or rotary-hammer mode appropriate for the material, start drilling at low speed to position the bit, then increase speed and apply steady pressure. Withdraw the bit occasionally to remove debris when drilling deep holes. Use appropriate personal protective equipment, such as safety glasses, hearing protection and dust mask.

Recommendations

Use this EXPERT SDS plus-7X bit for regular professional drilling in concrete and reinforced concrete. For longest life, match drill speed and pressure to material hardness, clear drill cuttings frequently, and store the bit dry. Replace the bit if the carbide head shows significant wear or damage.
