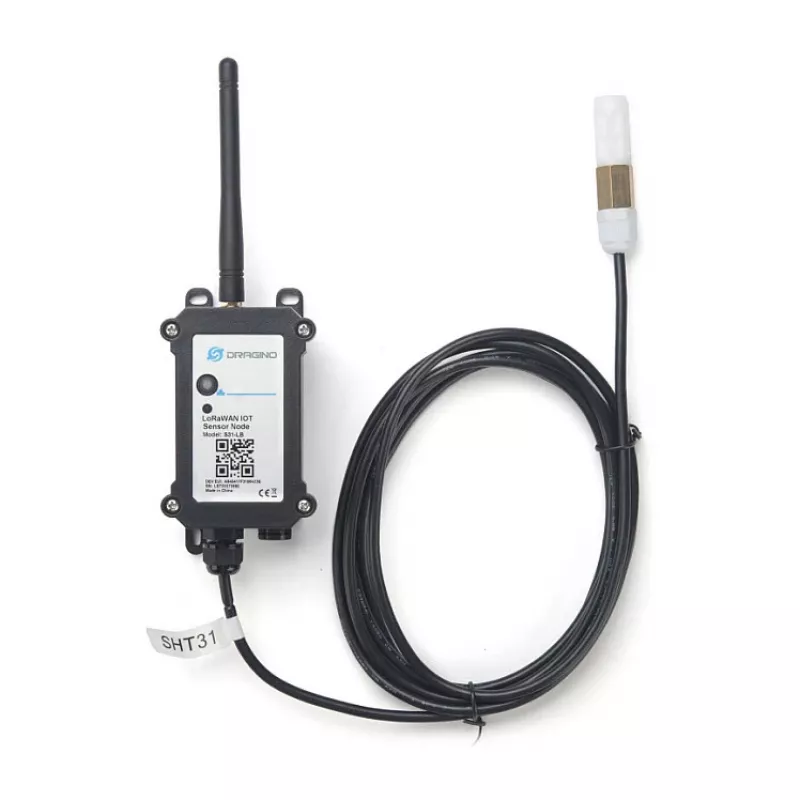

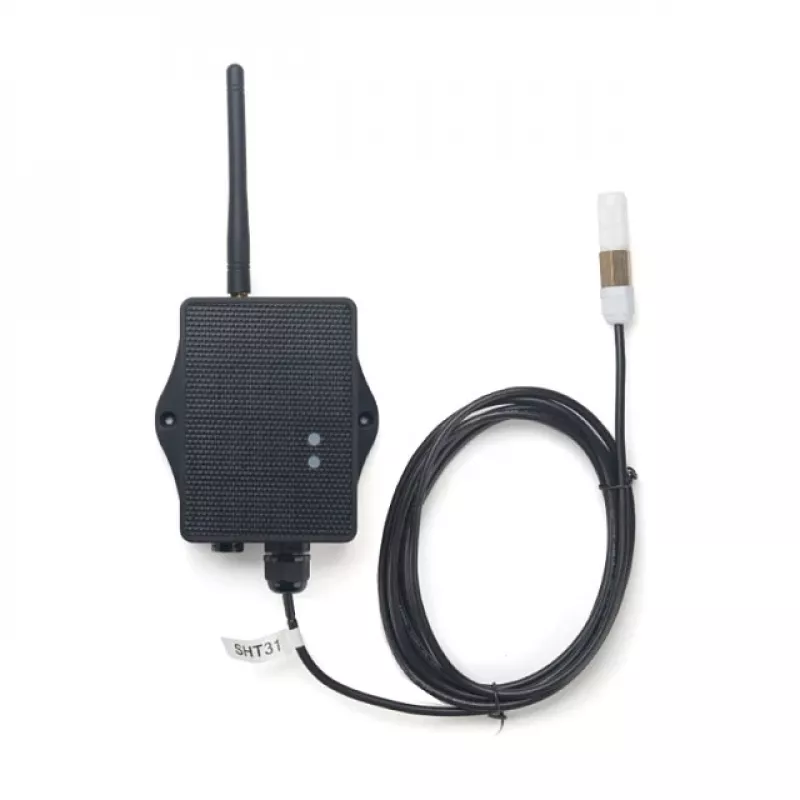

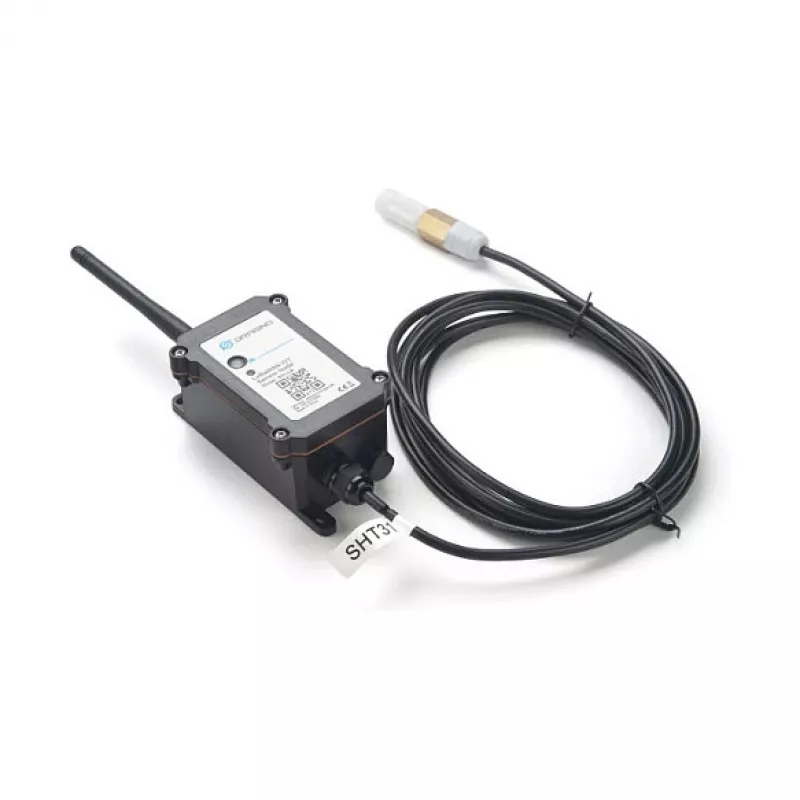

DRAGINO S31-LB-EU868 Outdoor Temperature & Humidity Sensor Node (LoRaWAN EU868, IP65)

Monitor environmental conditions in remote or outdoor locations with the DRAGINO S31-LB-EU868. This robust sensor node measures temperature and humidity using a high-accuracy SHT31 sensor, and transmits data over LoRaWAN for low-power, long-range connectivity. Designed for harsh environments, it comes in an IP65-rated enclosure and can run for up to 10 years on two AA lithium batteries, making it ideal for smart agriculture, logistics, smart buildings, and industrial monitoring.

Who is it for

The S31-LB-EU868 is built for system integrators, IoT solution providers, and IT professionals who need a reliable, easy-to-deploy sensor node for outdoor or indoor use. It is especially valuable in scenarios where mains power is unavailable or where replacing batteries frequently is not an option. With its EU868 frequency band, it connects seamlessly to standard LoRaWAN gateways and networks.

Main features

• High-precision SHT31 temperature and humidity sensor
• LoRaWAN 1.0.3 Class A compatible (EU868 frequency band)
• IP65-rated enclosure for outdoor protection
• Configurable data transmission interval (from 10 minutes to 24 hours)
• AT command and downlink configuration
• Ultra-low power consumption with up to 10-year battery life (2x AA Li-SOCl2)
• Wall-mountable design for easy installation

Specifications

• Sensor: SHT31 (temperature & humidity)
• Temperature measurement range: -40°C to +80°C
• Temperature accuracy: ±0.2°C (typical)
• Humidity measurement range: 0% to 99.9% RH
• Humidity accuracy: ±2% RH (typical)
• LoRaWAN protocol: 1.0.3 Class A
• Frequency band: EU868 (863-870 MHz)
• Microcontroller: STM32L072CZT6
• LoRa transceiver: SX1276
• Antenna: Internal
• Battery: 2x 3.6V ER14505 Li-SOCl2 (AA size)
• Ingress protection: IP65
• Operating temperature (device): -40°C to +85°C
• Mounting: Wall mount

Tips

Before installation, check your LoRaWAN network coverage and configure the device parameters via AT commands or downlink to suit your reporting interval. Mount the sensor in a representative location away from direct sunlight or heat sources for accurate outdoor readings. Use the supplied screws and wall mount bracket for secure placement.
