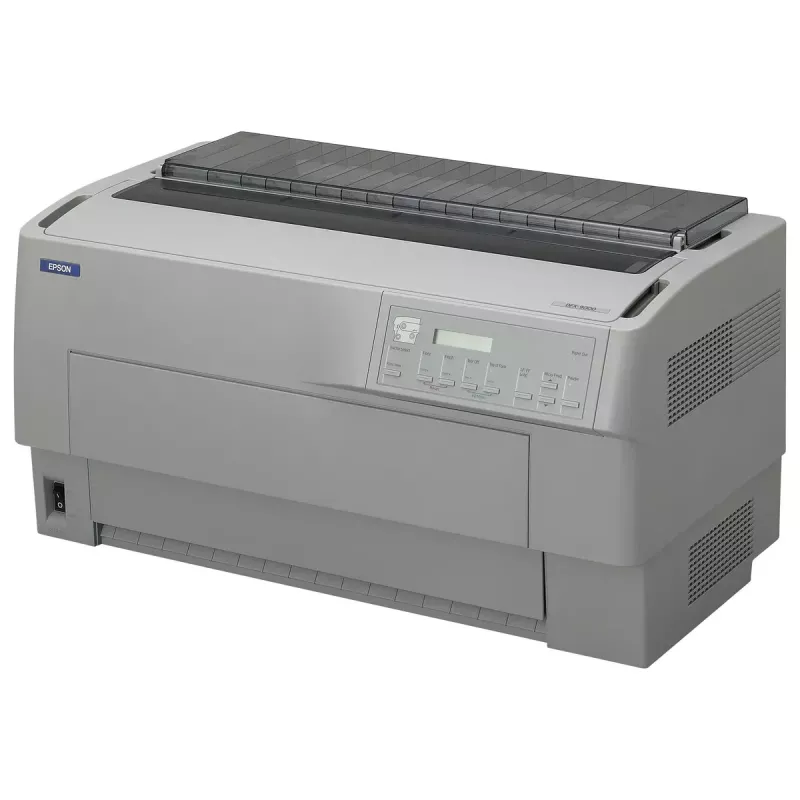

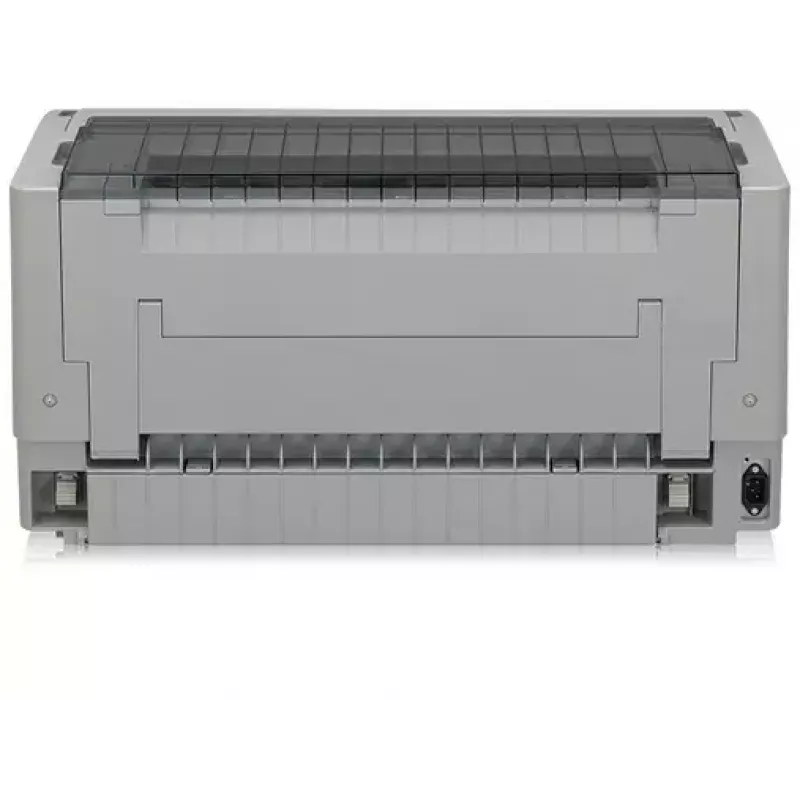

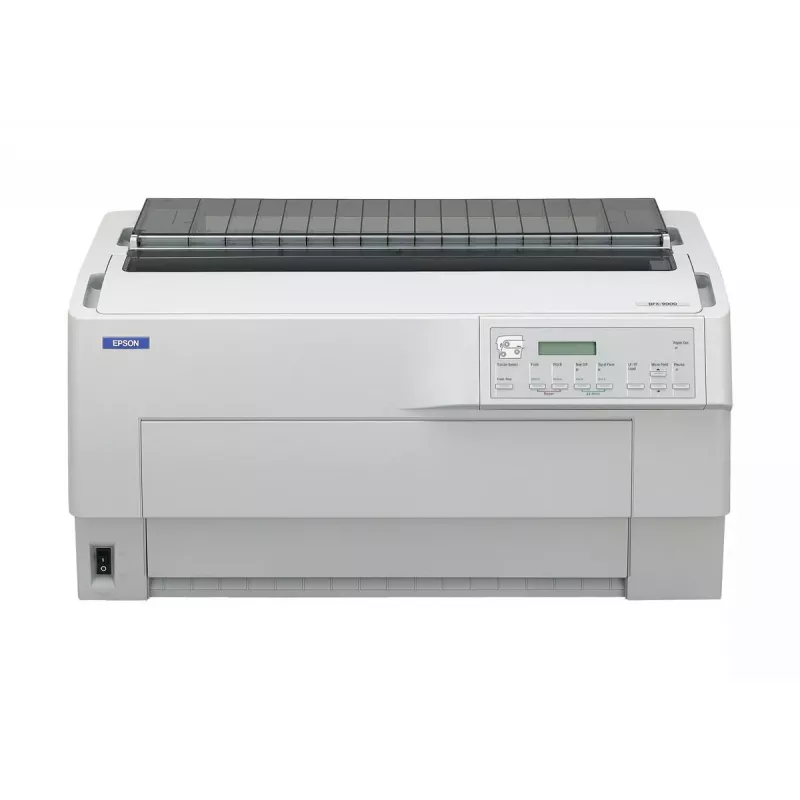

Dot matrix printer Epson DFX-9000 — 9-pin, 240 x 144 DPI, A4, max 1550 cps, Parallel/RS-232/USB 2.0

The heavy duty dot matrix printer you can rely on
The Epson DFX-9000 is the fastest 9-pin heavy duty dot matrix printer in its class. Built to bring your business speed and reliability, it gives you the power to handle the most demanding workloads quickly and at exceptional value.

Built for demanding workloads, always ready for action
Working at high speeds
Take advantage of the fastest 9-pin heavy duty dot matrix printer in its class. With a 1,550cps print speed, the Epson DFX-9000 will deliver exceptional performance in all data processing and drafting tasks.

Working reliably
You can rely on the ongoing support of a print volume of 133 million lines MVBF*, an MTBF** of 20,000 power on hours and a 15 million characters ribbon life. Durability that keeps your business working.

Working in any environment
You can integrate the Epson DFX-9000 with existing equipment, using standard USB, Parallel and Serial interfaces (optional network, twinax, coax).

Working for your business
Utilise extensive paper handling solutions to deal with a wide range of commercial, industrial and logistic printing tasks.

Print up to 10 part forms on paper from 76.2 to 406.4mm wide. And extend your printing capabilities with the optional perforation cutter.

Key Features:
- Prints up to 10 part forms (1 original + 9 copies).
- Long ribbon life of 15 million characters.
- Standard USB, Serial and Parallel interfaces (optional network, twinax, coax).
- Flexible paper handling with two tractors as standard.
- Optional perforation cutter for automatic job separation, or for remote switching between paper sources.

Epson DFX-9000. Maximum print speed: 1550 cps, Maximum resolution: 240 x 144 DPI, Maximum print speed (draft): 1320 cps. Maximum print size: A4 (210 x 297 mm), Paper tray media types: Labels. Buffer size: 128 KB, Sound pressure level (printing): 58 dB, Page description languages: ESC P, PPDS. Standard interfaces: Parallel, RS-232, USB 2.0, Optional connectivity: Ethernet. Print head: 9-pin, Print direction: Bidirectional, Print head life: 200 million characters

How to use

Install the Epson DFX-9000 on a stable surface and connect it to your host system using one of the standard interfaces (USB, Parallel or RS-232). Load continuous or single-sheet media using the built-in tractors; set paper width between 76.2 mm and 406.4 mm as required. Configure printer settings via the control panel or host driver to select print mode and form handling options. For multi-part forms, ensure correct paper alignment and test a short print run before full production. If fitted, set up the optional perforation cutter according to the accessory instructions.

Recommendations

For consistent long-term performance, use recommended ribbons and perform routine maintenance checks on the print head and tractors. Keep the printer in a dust-free environment and allow adequate ventilation to maintain the specified MTBF and print quality.
