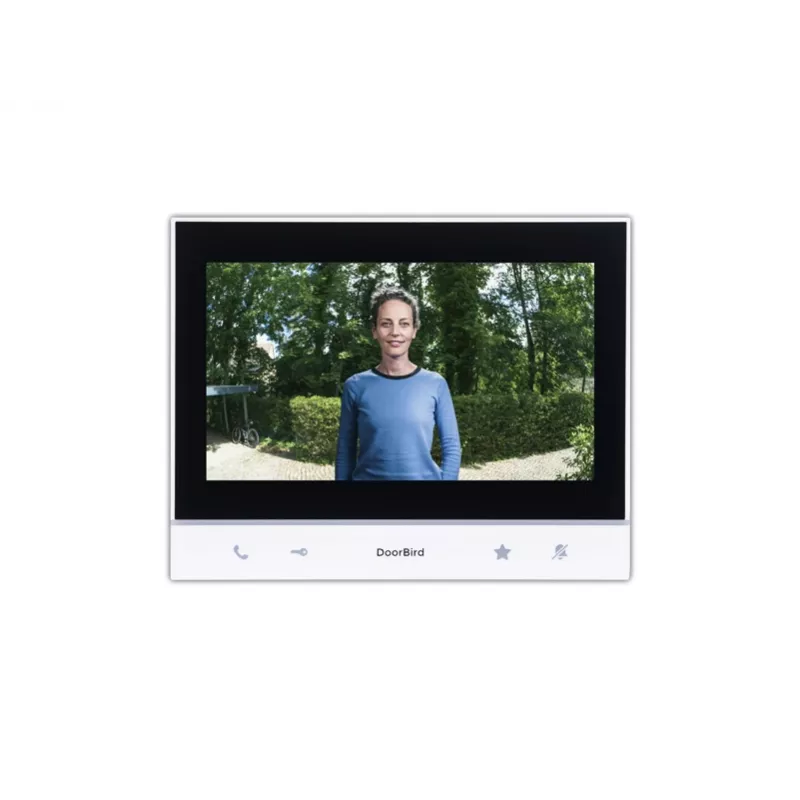

Doorbird A1103 IP Video Indoor Station 7 inch IPS Touch Display White Black

The DoorBird A1103 is a premium IP video indoor station designed for modern access control and intercom systems. Featuring a 7-inch IPS capacitive touch display with 1024x600 pixel resolution, it offers crystal-clear video and intuitive operation. The station supports Power over Ethernet (PoE) for easy installation and includes advanced audio features with echo and noise cancellation. Its sleek design in white and black complements any interior.

Advantages

High-resolution 7-inch IPS touch display ensures excellent visibility. Capacitive touch technology provides responsive and precise control. Integrated PoE simplifies cabling and eliminates the need for a separate power supply. Advanced audio processing delivers clear two-way communication. Surface-mountable design with optional flush mount back box offers flexible installation.

Suitable for

• Residential and commercial access control systems
• Integration with DoorBird IP door stations and third-party systems via SIP/ONVIF
• Indoor use in homes, offices, and secure facilities

Key specifications

• Display: 7-inch IPS, 1024x600 pixels, capacitive touch
• Connectivity: Fast Ethernet (10/100 Base-T), PoE IEEE 802.3af Mode A or 15V DC
• Audio: Integrated speaker and microphone with echo/noise cancellation
• Video Codecs: H.264, MJPEG
• Operating System: Embedded Linux
• Mounting: Surface mount (flush mount with optional back box)
• Housing: UV-resistant polycarbonate
• Color: White housing, black display area
• Operating Temperature: -20 to +50 °C
• Configurable Buttons: 5
• Protocols: IPv4, HTTP, HTTPS, TCP, UDP, SIP, RTP, RTCP, RTSP, DHCP, NTP, ONVIF
• Installation: Indoor only

Recommendations

Pair with a compatible DoorBird IP door station for a complete video intercom solution. Use a PoE switch for simplified wiring. For flush mounting, order the optional back box separately.
