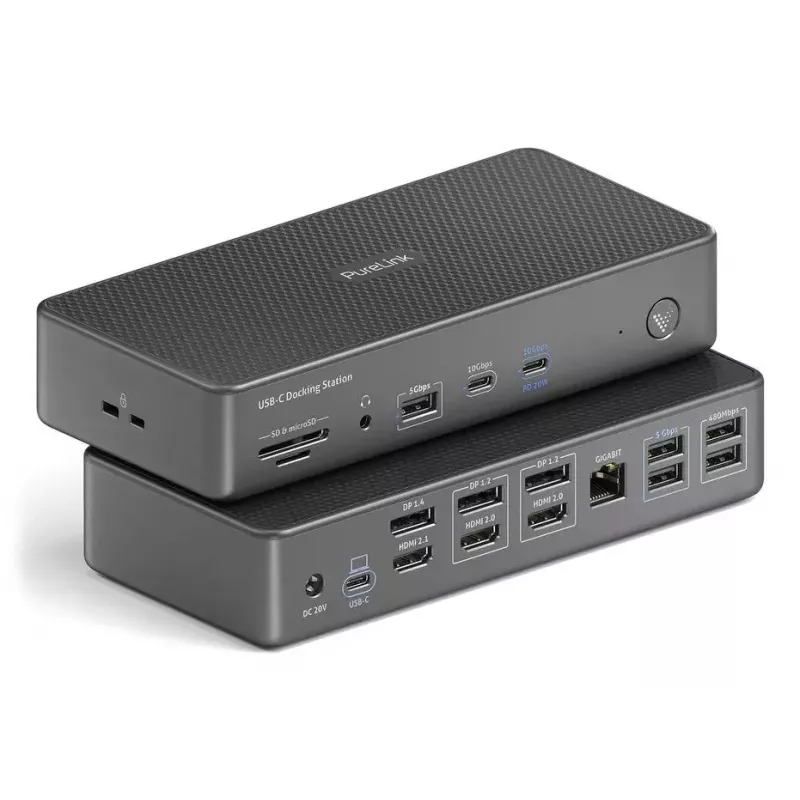

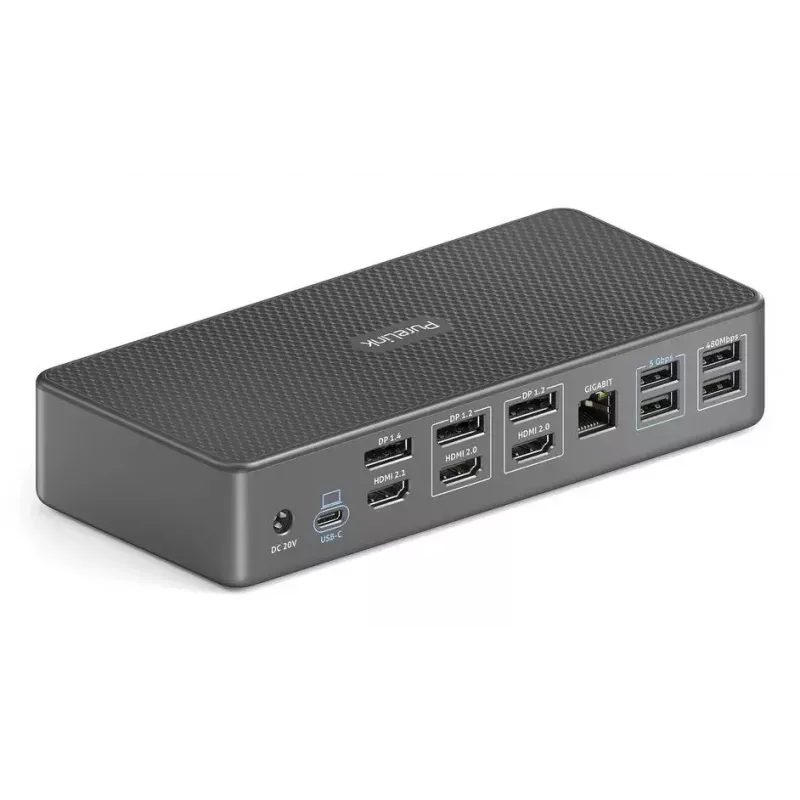

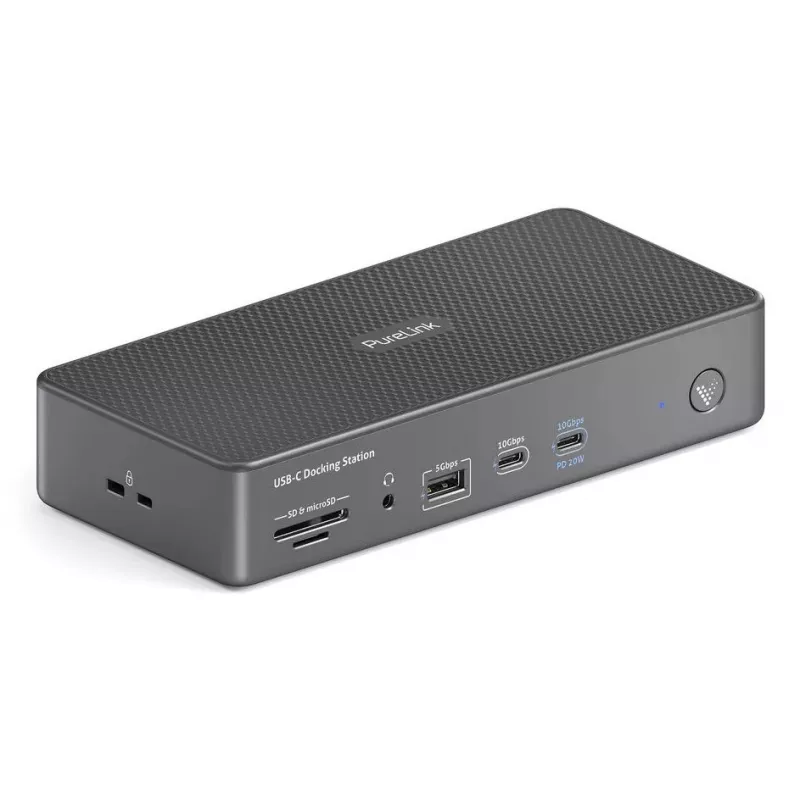

Docking Station PureLink VL-D230DL USB 3.2 Gen 2 Type-C Grey Wired

The PureLink VL-D230DL is a wired USB 3.2 Gen 2 Type-C docking station offering all-in-one connectivity for laptops and compatible devices. It supports up to 100W Power Delivery, wired Gigabit Ethernet (1000 Mbit/s) and maximum display resolutions up to 7680×4320. The dock includes multiple video outputs, high-speed USB ports, an audio jack and SD/microSD card reader to streamline a desktop workspace.

Advantages

This docking station provides flexible multi-monitor options with support for up to four screens and single-monitor outputs up to 8K30 or dual 4K60 depending on the port used. USB 3.2 Gen2 delivers 10 Gbps data transfer and 100W Power Delivery over the Type-C connection. A mix of USB ports at different speeds lets you connect and power several peripherals simultaneously, while the integrated Gigabit Ethernet port and audio output add stable network access and convenient sound connectivity.

Suitable for

• Office and home workstations requiring multiple monitors
• Users who need fast wired LAN access for stable connections
• Content creators and professionals needing high-resolution external displays
• People who require multiple USB ports and memory card access for peripherals and data transfer

Key specifications

• Model: PureLink VL-D230DL
• Connectivity: Wired USB 3.2 Gen 2 Type-C
• Power Delivery: up to 100W

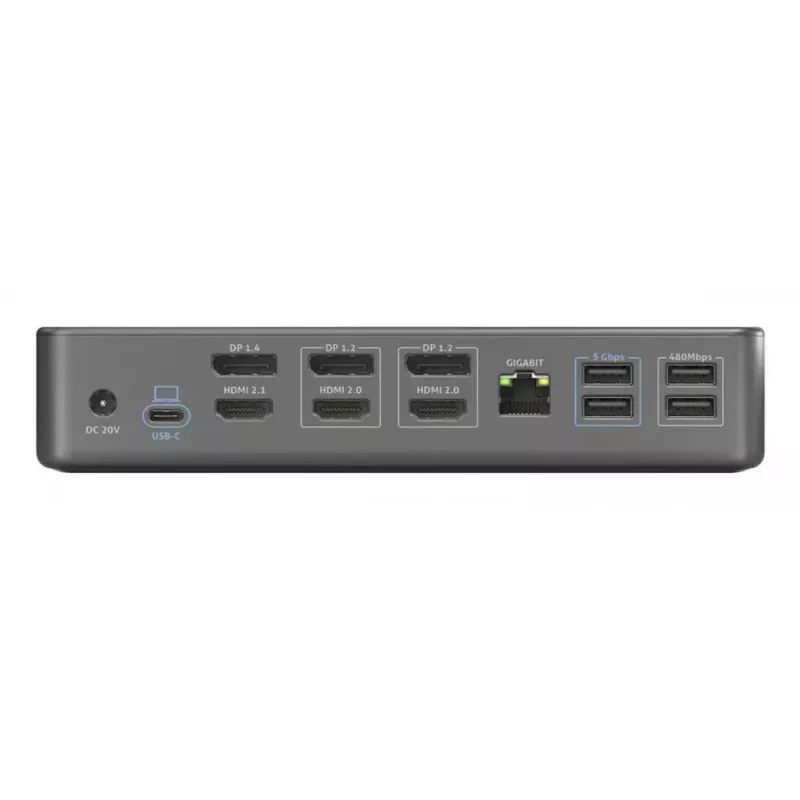

• Video outputs: 1× HDMI 2.1 (8K30), 2× HDMI 2.0 (4K60), 1× DisplayPort 1.4 (8K30), 2× DisplayPort 1.2 (4K60)
• Maximum resolution: up to 7680×4320

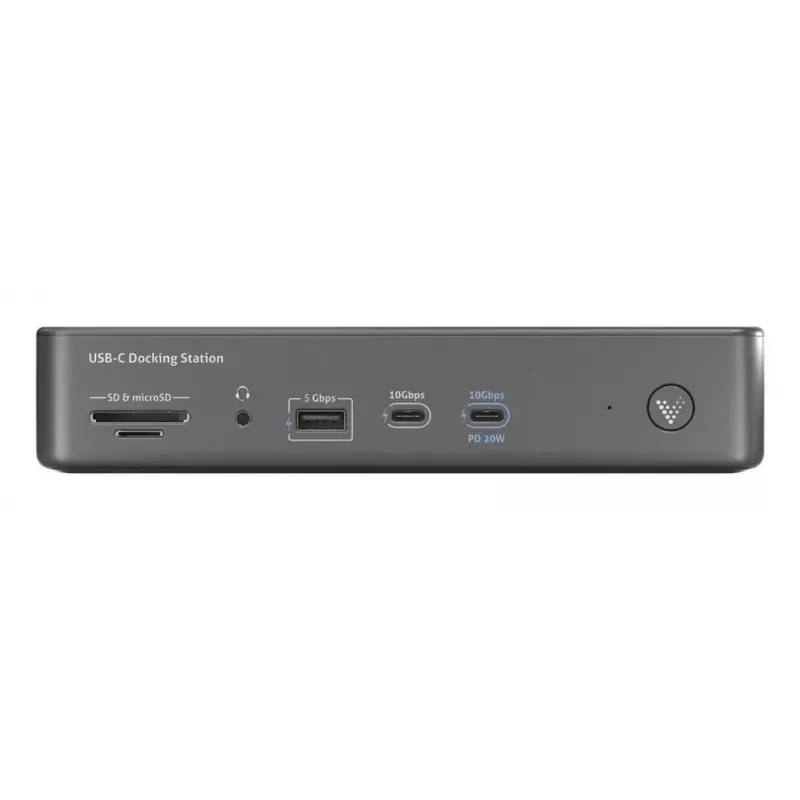

• USB ports: 3× USB 3.2 (10 Gbps), 2× 5 Gbps, 2× 480 Mbps (USB 2.0)
• Ethernet: 1× Gigabit Ethernet (RJ-45)
• Card reader: SD and microSD
• Audio: 3.5 mm output jack
• Colour: Grey
• Weight: 0.63 kg

How to use

Connect the VL-D230DL to a compatible host using the USB-C cable that supports USB 3.2 Gen2 and Power Delivery. Attach external displays to the desired HDMI or DisplayPort outputs according to the resolution and refresh-rate you require. Plug peripherals into the available USB ports, insert SD or microSD cards into the card slot, and connect a network cable to the Gigabit Ethernet port if wired internet is needed. Use the 3.5 mm jack for headphones or speakers.

Recommendations

For best multi-display performance, check your laptop’s USB-C/Thunderbolt output capabilities and choose the appropriate combination of HDMI and DisplayPort outputs. When using Power Delivery, verify your host supports 100W charging to ensure full charging performance.
