DMT 3m Ecoflex 10 Coaxial Cable with N-Male to N-Female Connectors, 50 Ohm

DMT 3m Ecoflex 10 Coaxial Cable with N-Male to N-Female Connectors, 50 Ohm
DMT 3m Ecoflex 10 Coaxial Cable with N-Male to N-Female Connectors, 50 Ohm
R1,411
The DMT MC711030 is a precision-engineered RF patch cable that pairs the low-loss Ecoflex 10 platform with a practical N-Male to N-Female configuration. This three-meter assembly is built for demanding RF transmission, delivering stable performance up to 8 GHz with genuine 50-ohm impedance.Highlight... Read More
Stock 4 Code 3308819 Brand DMT Model MC711030 Warranty 2 Years

Shipping & Returns

Estimated delivery Wednesday, October 7
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The DMT MC711030 is a precision-engineered RF patch cable that pairs the low-loss Ecoflex 10 platform with a practical N-Male to N-Female configuration. This three-meter assembly is built for demanding RF transmission, delivering stable performance up to 8 GHz with genuine 50-ohm impedance.

Highlights

  • Low-loss Ecoflex 10 cable with solid copper inner conductor
  • Double shielding (copper braid + copper foil) for excellent interference rejection

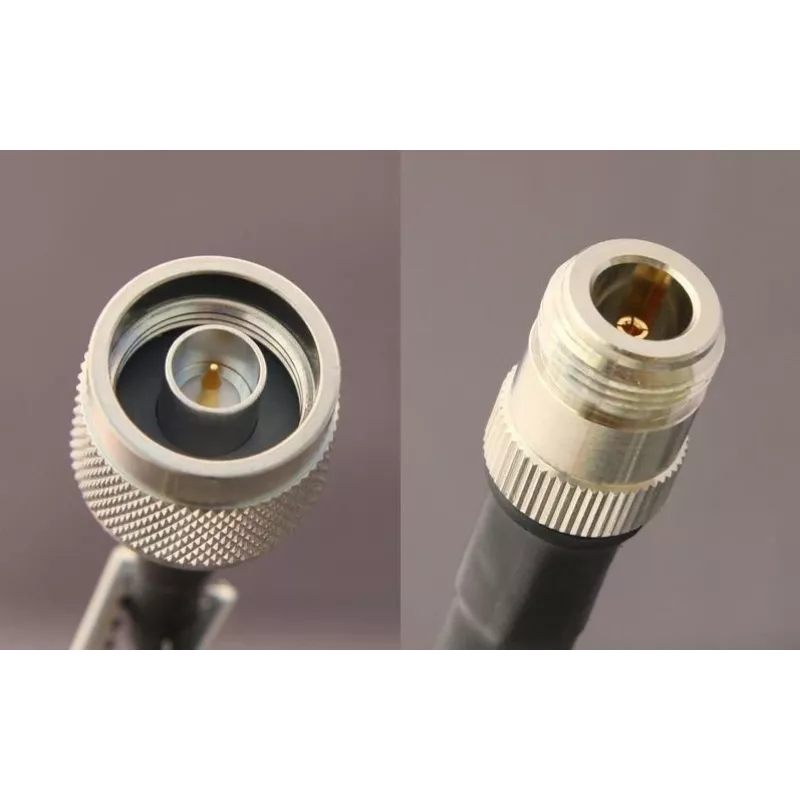

  • Nickel-plated brass N connectors with gold-plated center pin
  • Wide operating temperature range from -40°C to +85°C
  • UV-resistant PE jacket suitable for indoor and outdoor use
  • VSWR under 1.2:1 for reliable signal transfer

In daily use

This cable is ideal for connecting antennas, transceivers, and measuring equipment where a robust N-type interface is required. The male-to-female orientation simplifies extension of existing RF feeds or direct attachment to devices with N-Female ports. Its flexible yet durable construction allows routing around corners with a minimum bend radius of 40 mm for single bends and 100 mm for repeated flexing.

Full specifications

  • Cable type: Ecoflex 10
  • Cable length: 3 meters
  • Connector 1: N-Male
  • Connector 2: N-Female
  • Impedance: 50 Ohm
  • Frequency range: DC to 8 GHz
  • Attenuation @ 1 GHz (per 100m): 13.3 dB
  • Attenuation @ 2.4 GHz (per 100m): 21.5 dB
  • Outer diameter: 10.2 mm
  • Inner conductor: Solid copper
  • Shielding: Double shielded (copper braid + copper foil)
  • Dielectric: Foamed PE
  • Jacket: UV-resistant PE
  • Operating temperature: -40°C to +85°C
  • VSWR: < 1.2:1
  • Power handling @ 1 GHz: 1.5 kW
  • Min. bending radius (single): 40 mm
  • Min. bending radius (repeated): 100 mm
  • Connector body: Nickel-plated brass
  • Center pin plating: Gold

Final note

This premium cable assembly is ideal for professional RF installations, offering low loss and high shielding effectiveness. Reliable performance and durable materials make it a trustworthy choice for critical links.

Specifications
Brand
DMT
Cable length
3 m
Cable type
Ecoflex 10
Category
RF Cable
Connector 1
N-Male
Connector 1 gender
Male
Connector 2
N-Female
Connector 2 gender
Female
EAN
5711783894124
Frequency band
DC - 8 GHz
Impedance
50 Ohm
Jacket material
UV-resistant Polyethylene (PE)
Jacket outer diameter
10.2 mm
Model
MC711030
MPN
MC711030
Operating temperature (T-T)
-40°C to +85°C
Voltage Standing Wave Ratio (VSWR)
< 1.2:1
Weight
0.35 kg
