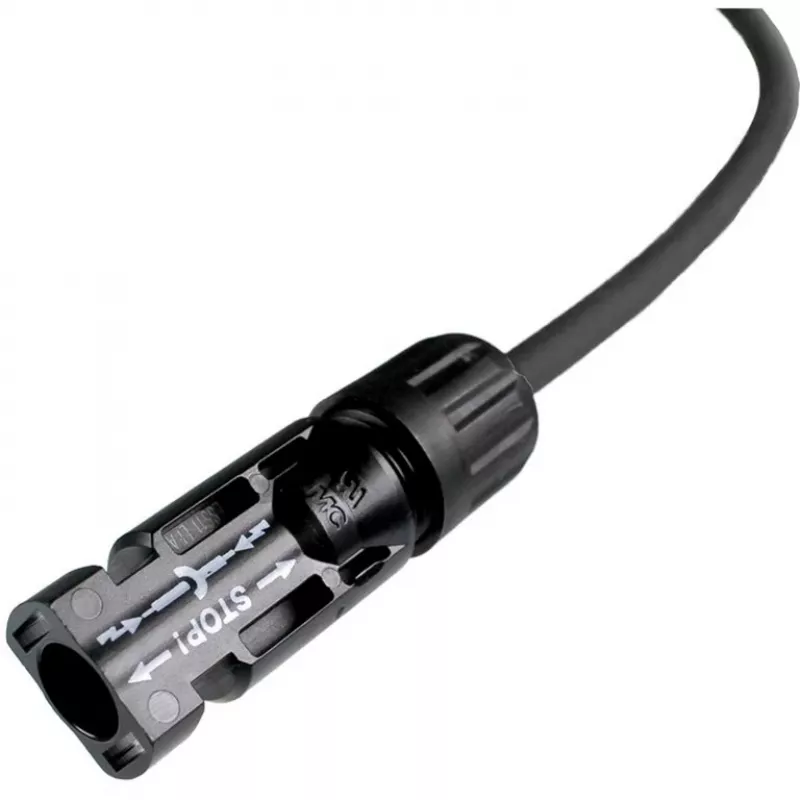

DIVERSE Solar Extension Cable 6mm², MC4 Male to Female, 1 Meter, Black

The DIVERSE Solar Extension Cable is a high-quality, single-core cable designed for photovoltaic systems. With a 6 mm² cross-section and 1 meter length, it features MC4 connectors for reliable and weather-resistant connections. Ideal for extending solar panel arrays, this cable ensures minimal power loss and long-term durability.

Advantages

This solar extension cable offers excellent conductivity with tinned copper conductors and robust insulation with UV-resistant XLPE material. The MC4 connectors provide IP67 weather protection, making it suitable for outdoor use. Rated for 1000 V DC and 45 A, it supports high-performance solar installations.

Suitable for

• Extending connections between solar panels and inverters
• Photovoltaic systems requiring flexible and durable cabling
• Outdoor solar installations exposed to UV and weather

Key specifications

• Cable Type: Solar Extension Cable
• Conductor Cross-Section: 6 mm²
• Cable Length: 1 Meter
• Connector 1: MC4 Male
• Connector 2: MC4 Female
• Conductor Material: Tinned Copper
• Insulation Material: XLPE
• Jacket Material: UV-resistant XLPE
• Color: Black
• Rated Voltage: 1000 V DC
• Rated Current: 45 A
• Temperature Rating: -40°C to +90°C
• UV Resistance: Yes
• Weather Resistance: IP67 (Connectors)
• Fire Performance: Flame Retardant
• Certifications: TÜV, CE
• Number of Conductors: 1 (Single Core)
• Application: Photovoltaic Systems
• Outer Diameter: 6.5 mm

Recommendations

For optimal performance, ensure connectors are properly mated and protected from moisture. This cable is compatible with standard MC4 solar connectors.
