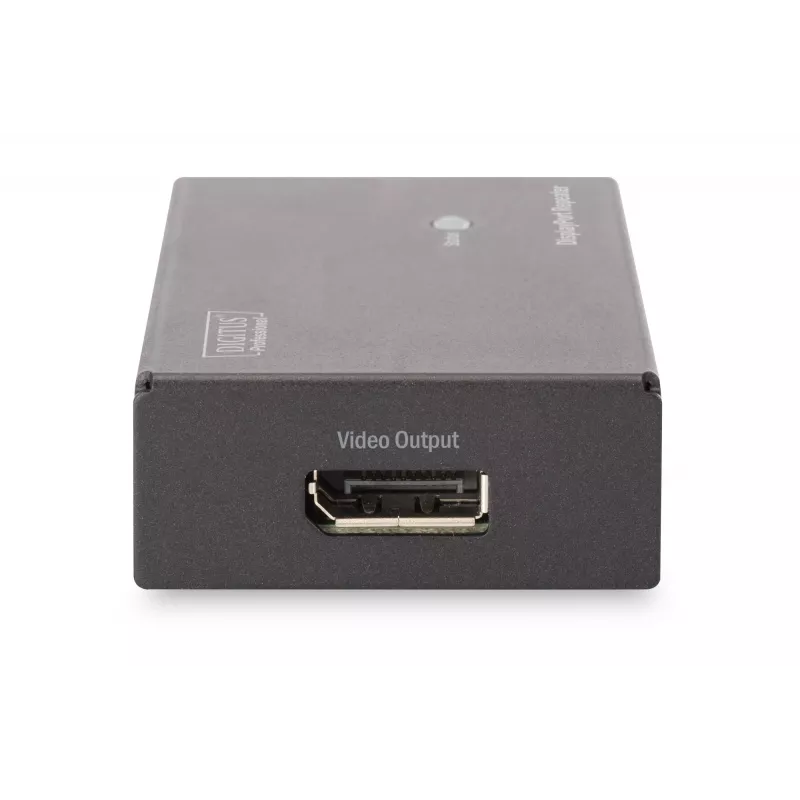

DisplayPort Repeater Digitus DS-52900 4K

The Digitus DS-52900 DisplayPort Repeater extends DisplayPort signals up to 20 m at Full HD and up to 13 m at UHD 4K while preserving signal quality. The compact metal housing measures 12 x 80 x 50 mm, weighs 155 g and includes a USB cable for power when needed. The device features an integrated equalizer for manual picture-sharpness adjustment and does not require an external power supply for normal operation.

Advantages

The repeater extends DisplayPort signals without loss of quality and supports resolutions up to 3840 x 2160 (4K). Its small metal enclosure provides good shielding and allows discreet placement. An integrated equalizer enables manual tuning of image sharpness, and the included USB cable simplifies installation.

Suitable for

• Extending desktop or laptop DisplayPort output to a distant monitor or projector
• Home and office setups that require 4K or Full HD signal extension
• AV installations where a compact, shielded repeater is needed

Key specifications

• Model: Digitus DS-52900
• Video port type: DisplayPort
• Maximum resolution: 3840 x 2160 (UHD 4K)
• Maximum extension: up to 20 m (Full HD), up to 13 m (UHD 4K)
• Video ports quantity: 2
• Dimensions: 12 x 80 x 50 mm
• Weight: 0.155 kg
• Colour: Black
• Includes: USB cable

How to use

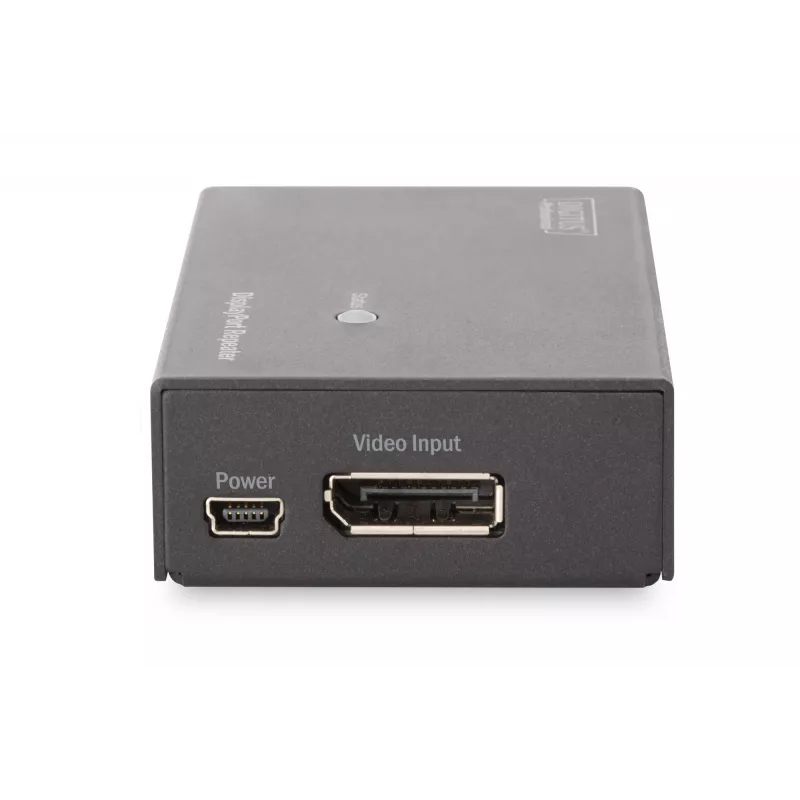

Connect the input DisplayPort cable from the source (PC or laptop) to the repeater input and connect the repeater output to the display's DisplayPort input. If required, use the supplied USB cable to provide power. Use the integrated equalizer control to fine-tune picture sharpness until the desired image quality is achieved. No additional software is necessary.

Recommendations

For reliable performance, use certified DisplayPort cables and avoid running cables near strong electromagnetic sources. If you need the longest possible 4K extension, verify both source and display support the target resolution and refresh rate.
