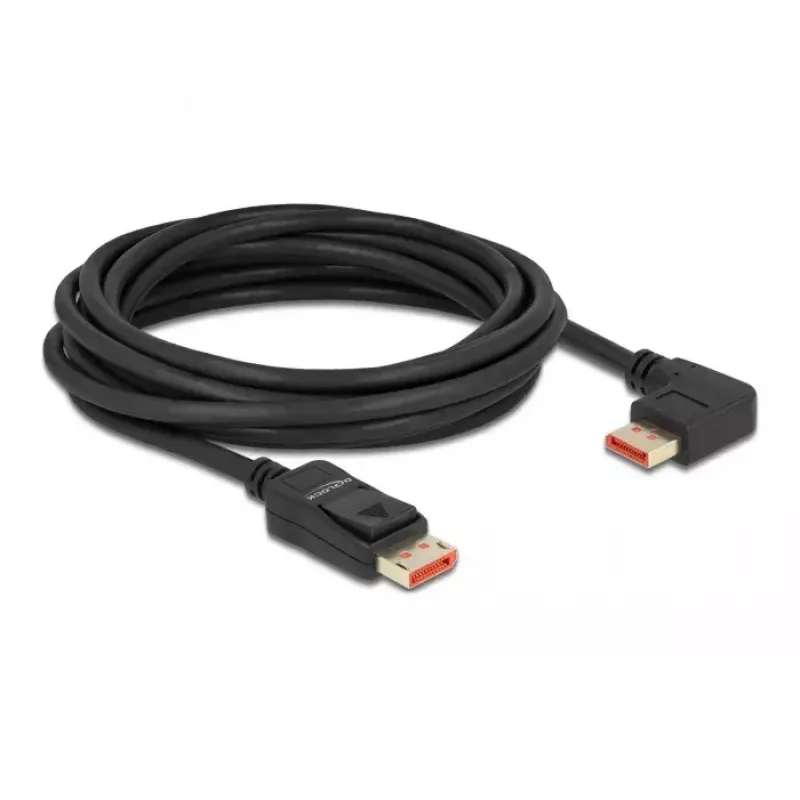

DisplayPort cable DeLOCK 87049 5m male straight to male 90° left angled 8K 60Hz

This DisplayPort cable by DELOCK connects devices with a DisplayPort interface—such as monitors, projectors or televisions—to a PC or laptop. It features a straight male DisplayPort connector on one end and a 90° left-angled male DisplayPort connector on the other, with a length of 5 m and a cable diameter of 7 mm. The cable supports high-resolution video and high-quality audio transmission.

Advantages

The cable supports a maximum bandwidth of 32.4 Gb/s, enabling video in 8K Ultra HD (7680 x 4320 @ 60 Hz), 5K (5120 x 2880 @ 120 Hz) and 4K Ultra HD (3840 x 2160 @ 240 Hz). Triple-shielded construction reduces interference and improves signal stability, while the angled connector allows easier connection in tight spaces. The cable is finished in black and is designed for reliable audio transmission with sampling rates up to 1536 kHz.

Suitable for

• Connecting a PC or laptop to a DisplayPort monitor or 8K-capable display
• Linking projectors or televisions with DisplayPort inputs
• Installations where space behind the device is limited and a 90° connector is needed

Key specifications

• Length: 5 m
• Connectors: DisplayPort male (straight) to DisplayPort male (90° left angled)
• Maximum bandwidth: 32.4 Gb/s
• Supported resolutions: up to 8K (7680 x 4320 @ 60 Hz), 5K (5120 x 2880 @ 120 Hz), 4K (3840 x 2160 @ 240 Hz)
• Cable diameter: 7 mm
• Colour: Black
• Audio sampling rate: up to 1536 kHz
• Brand: DELOCK, MPN: 87049, EAN: 4043619870493

How to use

Align the straight DisplayPort connector with the DisplayPort output on your PC or laptop and insert until it clicks. Connect the 90° left-angled DisplayPort connector to the input on your monitor, projector or television. Ensure both devices are powered on and select the DisplayPort input on the display if required. Configure the display resolution and refresh rate in your operating system or graphics driver according to the supported settings.

Recommendations

For optimal performance, keep the cable away from strong electromagnetic sources and avoid tight bends at the connector ends. Use the 90° connector when rear clearance is limited, and select display settings within the specified resolutions and refresh rates to ensure stable video and audio output.
