DisplayPort 1.4 Cable InLine 17151O 8K4K Upward Angled Black/Gold 1m

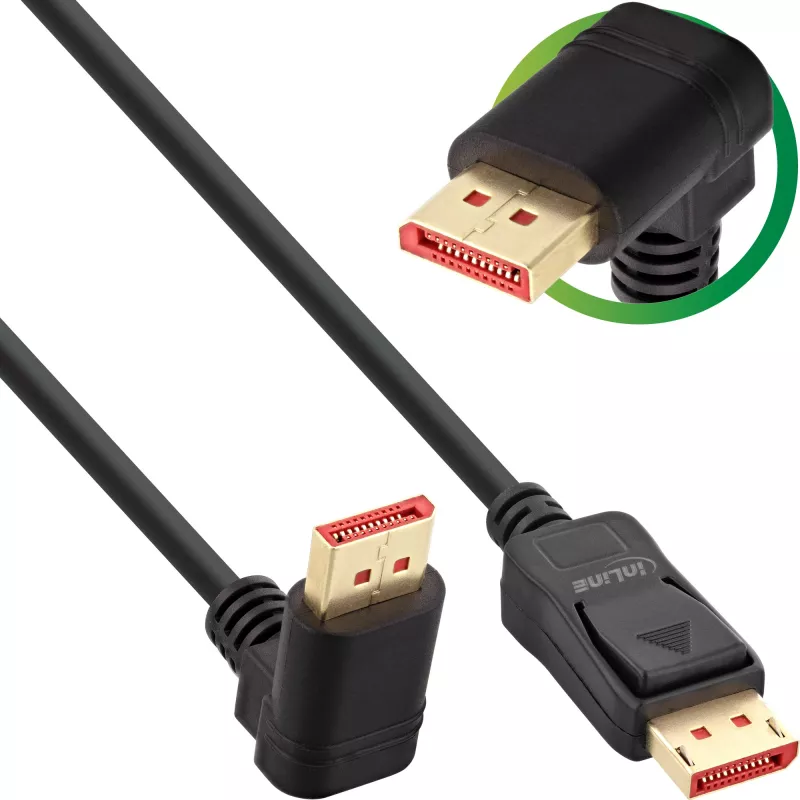

DisplayPort 1.4 cable with DisplayPort straight to upward-angled DisplayPort connector, 1 m length, black jacket and gold-plated contacts. The InLine 17151O supports high resolutions up to 8K4K and several 4K/120Hz modes, and is delivered in a resealable PE bag with EAN code.

Advantages

The cable is triple-shielded to reduce interference and ensure signal integrity. Gold-plated contacts improve corrosion resistance and contact reliability. The upward-angled connector facilitates installation in tight spaces behind monitors or graphics cards. Support for DisplayPort 1.4 features and high-resolution modes enables flexible connection to modern displays and GPUs.

Suitable for

• Connecting desktop graphics cards to monitors
• Workstations and professional displays requiring high resolutions
• Home or office setups with limited rear clearance
• Systems needing support for HDR and high refresh-rate 4K

Key specifications

• Standard: DisplayPort 1.4
• Connectors: DisplayPort (straight) to DisplayPort (angled upward)
• Cable length: 1 m
• Cable shielding: 3-fold shielded
• Contacts: Gold-plated
• Colour: Black
• Supported resolutions: up to UHD-II/FUHD 7680 x 4320 @30Hz (RGB/4:4:4) and @60Hz (RGB/4:2:0 or with DSC); UHD 3840 x 2160 @120Hz (RGB/4:4:4 8bit HDR off or RGB/4:2:2 12bit HDR on); UHD 3840 x 2160 @60Hz (RGB/4:4:4 12bit HDR on); Full HD 1920 x 1080; HD 1280 x 720

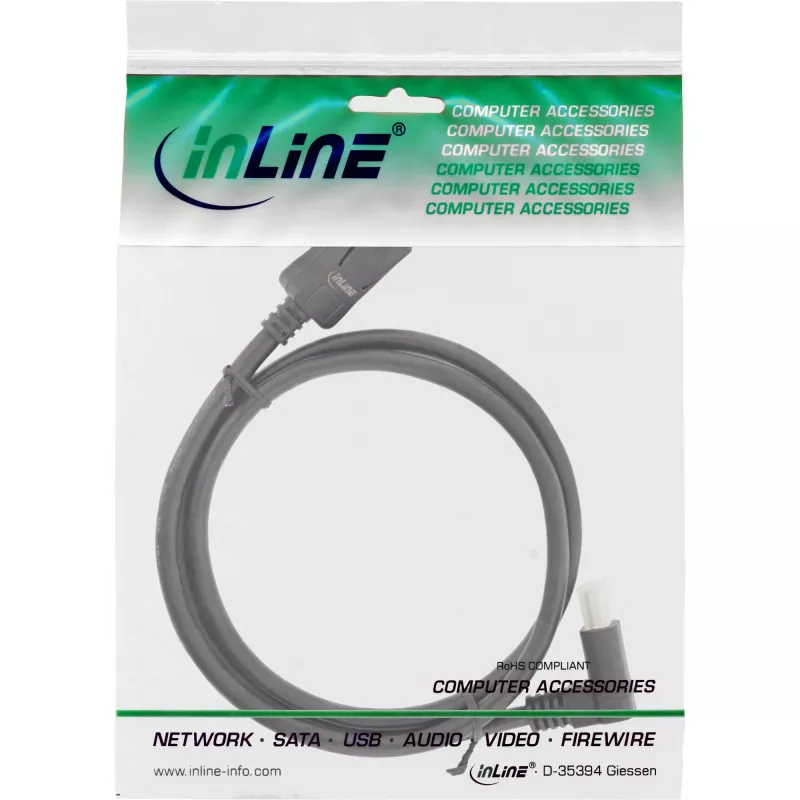

• Packaging: resealable PE bag with EAN

How to use

Connect the straight DisplayPort plug to the source device (for example a graphics card) and the upward-angled DisplayPort plug to the monitor or display input. Ensure connectors are fully inserted until they click. Select the desired resolution and refresh-rate in the operating system or GPU control panel. If HDR or DSC features are required, enable them in both the display and GPU settings as appropriate.

Recommendations

For optimal performance, use with devices and cables that support DisplayPort 1.4 and configure the GPU and display settings to match the target resolution and refresh rate. Avoid tight bending at the connector ends and keep the cable away from strong electromagnetic sources.
