Directional Antenna LIBOX LB1600 16-element Passive DVB-T, UHF 470–790 MHz, VHF 174–230 MHz, 18 dB gain, LTE filter

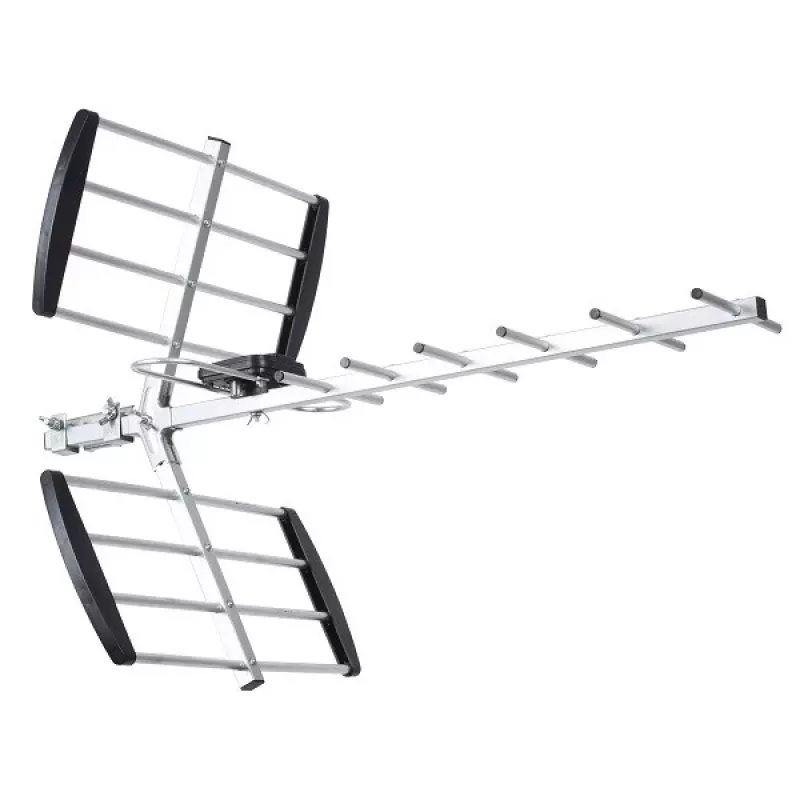

The Libox LB1600 16-element passive directional DVB-T antenna with LTE filter is designed for outdoor mounting to improve terrestrial television reception. It provides 18 dB gain through a 16-element array and integrates an LTE filter to reduce interference from mobile networks. The antenna housing combines aluminium elements with ABS components for a balance of durability and lightweight construction. Its physical dimensions (1180 mm width, 200 mm depth, 100 mm height) make it suitable for rooftop, mast or façade installation in residential or small commercial settings.

Advantages

This directional antenna offers high gain for stronger DVB-T signal reception in areas with weak broadcast coverage and uses a passive design that requires no external power. The integrated LTE filter helps suppress interference from nearby mobile transmitters, improving picture stability and reducing noise. Construction from aluminium and ABS ensures resistance to outdoor conditions while keeping the product lightweight for easier handling and mounting. The 16-element configuration delivers focused reception with improved signal-to-noise ratio compared with simpler antennas.

Suitable for

• Outdoor installation on roofs, masts or walls to receive DVB-T broadcasts
• Areas with weak or marginal terrestrial TV signal strength
• Locations where LTE/mobile interference affects TV reception
• Residential homes, small apartment buildings, cottages and small commercial premises

Key specifications

• Type: 16-element passive directional antenna for terrestrial DVB-T
• Gain: 18 dB
• Filter: Built-in LTE filter to reduce mobile network interference
• Material: Aluminium elements with ABS components
• Dimensions: 1180 mm (width) × 200 mm (depth) × 100 mm (height)
• Weight: 0.5 kg
• Colour: Black and aluminium finish suitable for outdoor environments

How to use

Mount the antenna outdoors on a suitable mast, rooftop bracket or wall mount in a location with clear line of sight toward the broadcast transmitter where possible. Secure the antenna using appropriate fasteners and ensure the orientation is directed toward the transmitting tower to maximize reception. Connect the antenna cable to the DVB-T receiver or television tuner using compatible coaxial connectors and check for signal strength and quality. Fine-tune the aiming and elevation while monitoring signal levels until optimal reception is achieved. No external power supply is required for the passive antenna itself.

Recommendations

For best results, place the antenna as high as practical and away from large metallic objects or other potential sources of interference. If reception remains poor, consider combining the LB1600 with a low-loss coaxial cable and a high-quality DVB-T tuner; in environments with multiple interfering signals, professional pointing or additional filtering may improve performance.
