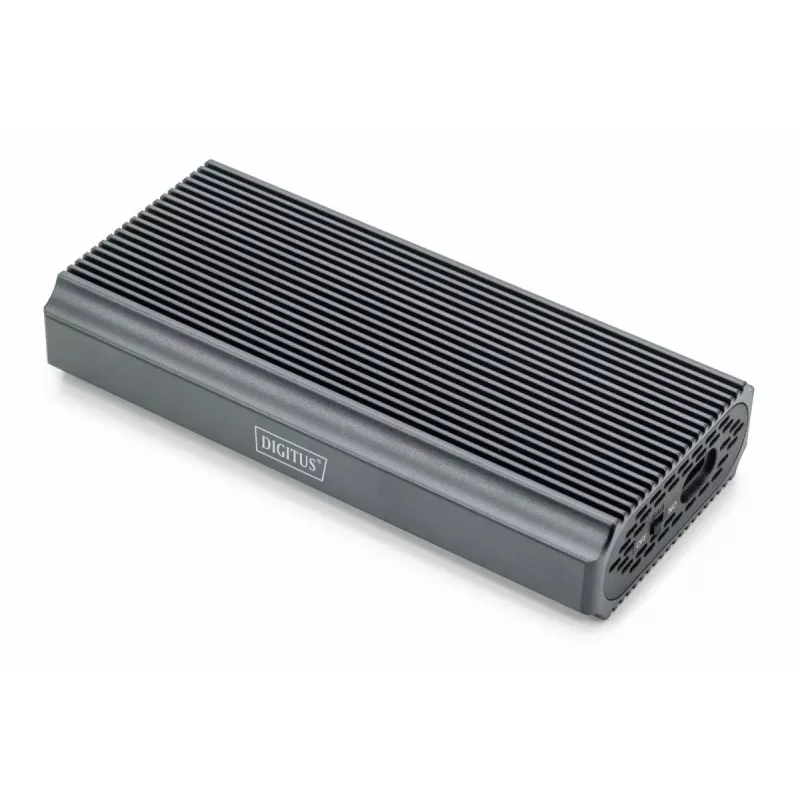

Digitus USB M.2 hard disk enclosure SSD external NVMe 40Gbps USB 4.0 aluminum toolfree DA-71158

The Digitus DA-71158 M.2 NVMe SSD enclosure is a portable external housing for M.2 NVMe SSD modules, offering high-capacity storage and data transfer speeds up to 40 Gbps via USB 4.0. The compact aluminum case supports tool-free installation and passive heat dissipation for reliable mobile use.

Advantages

Supports M.2 2230, 2242, 2260 and 2280 SSD modules and up to 8 TB capacity, providing wide compatibility and large storage. The USB 4.0 interface delivers up to 40 Gbps transfer speeds while remaining backwards compatible with USB 3.2/3.1/3.0/2.0/1.1. Built with a durable Pantone 430C aluminum housing, the enclosure includes an LED activity indicator, a robust JMS581DL chipset for stable operation, and a compact tool-free design for quick installation and portable use.

Suitable for

• Expanding external storage for laptops and desktops
• Fast file transfers and backups of large datasets
• Portable working with large media files (photo, video, audio)
• Cloning or migrating NVMe drives
• Use with USB-C devices and cross-platform environments

Key specifications

• Supported M.2 sizes: 2230, 2242, 2260, 2280
• Interface: USB 4.0, backwards compatible with USB 3.2/3.1/3.0/2.0/1.1
• Max data transfer rate: 40 Gbps
• Max capacity: up to 8 TB
• Chipset: JMS581DL
• Enclosure material: Aluminum (Pantone 430C)
• Dimensions: 116 x 60 x 20 mm
• Weight: 150 g
• LED activity indicator: Yes
• Power: Bus-powered via USB

How to use

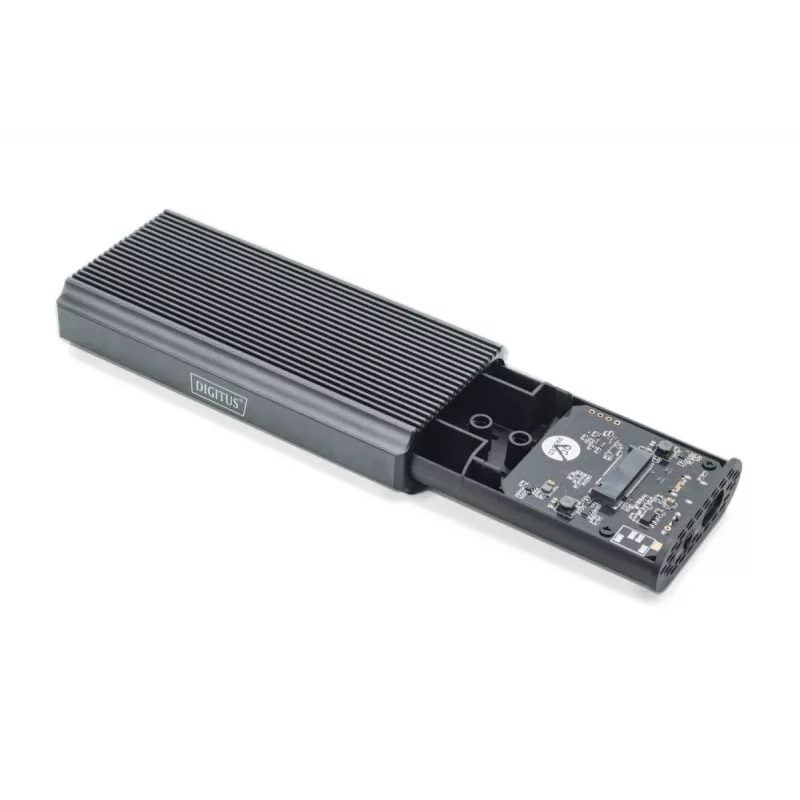

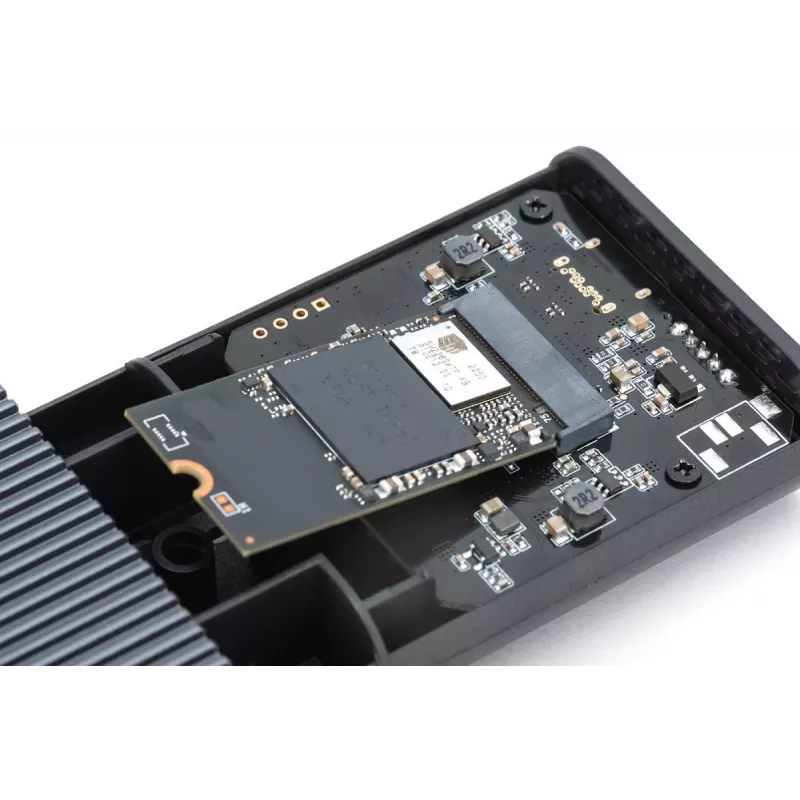

Open the tool-free enclosure, insert a compatible M.2 NVMe SSD module (2230/2242/2260/2280) and secure it using the included mounting hardware. Close the housing and connect the enclosure to a host device using the supplied USB-C cable. The device is bus-powered and supports plug-and-play operation on supported operating systems; no additional drivers are typically required for basic use. Monitor the LED indicator to confirm drive activity and proper connection.

Recommendations

For optimal performance, use a NVMe SSD that supports the enclosure's maximum throughput and connect to a USB 4.0 host port or a compatible high-speed USB-C port. Allow adequate airflow around the aluminum housing during prolonged heavy use to support passive heat dissipation.
