DIGITUS SOHO PRO 7U Wall-Mounted Network Cabinet Set, 19 inch, 60 kg Load, IP20, with 24-Port Cat6A Patch Panel, 24 Shielded Keystone Modules, 30x 0.25m S/FTP Patch Cables, 1U Shelf, 1U Power Strip, Black

Supporting up to 60 kg of equipment in a compact 7U form factor, this DIGITUS SOHO PRO wall-mounted cabinet set delivers a complete, ready-to-install 19" network infrastructure for small offices, home networks, and sub-distribution points. The set includes a 7U wall-mount enclosure, a 1U shelf, a 1U power strip with seven earthed outlets and switch, a 24-port modular patch panel, 24 shielded Cat6A keystone modules, and 30 short Cat6A S/FTP patch cables (0.25 m) — everything needed for a high-speed, PoE-ready installation.

Overview

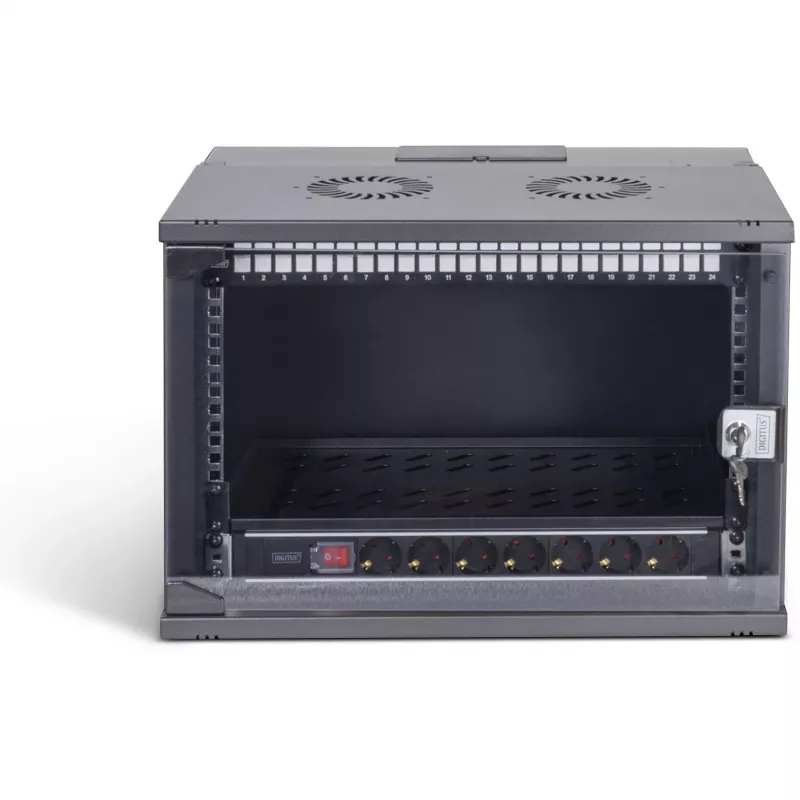

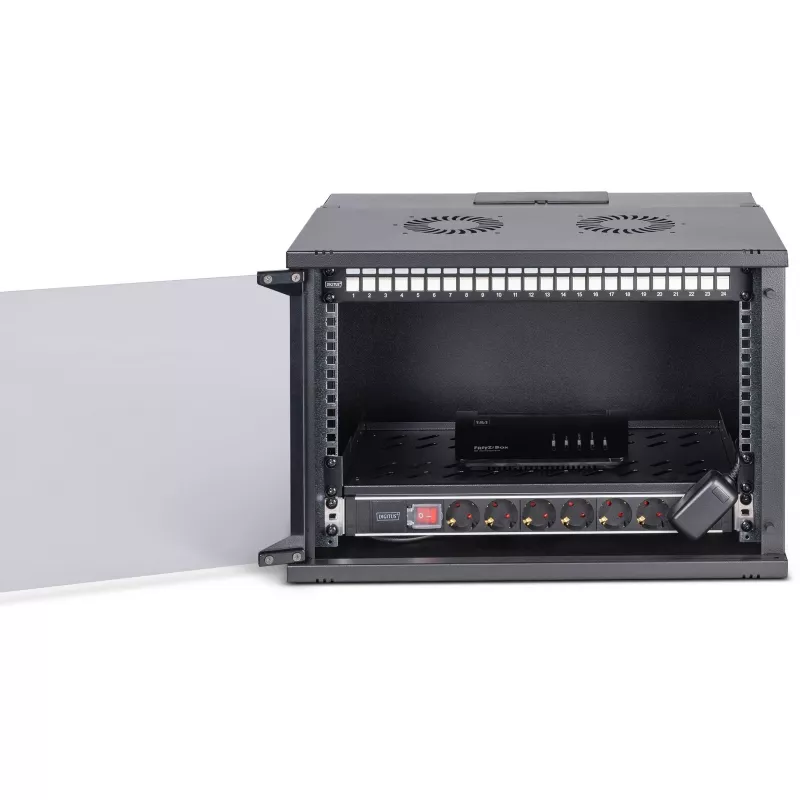

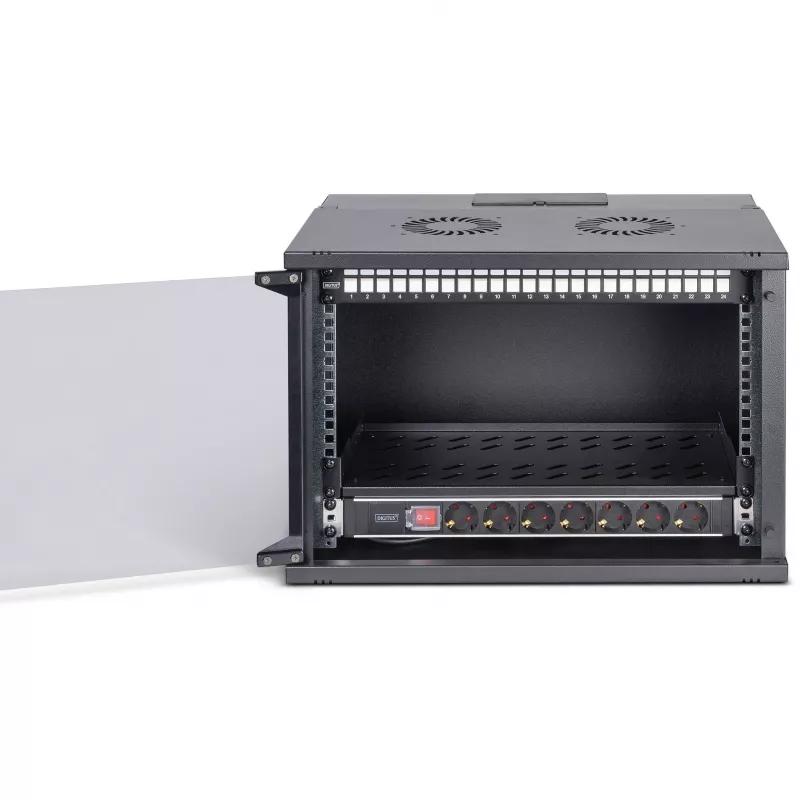

The DIGITUS DN-49203-SET is a coordinated networking solution built around a robust steel enclosure with a safety glass front door and removable, lockable side panels. The enclosure is rated IP20 for indoor use and features a welded frame with adjustable front and rear mounting rails, top and bottom cable entry with brush strips, and passive ventilation with provisions for optional fan units. The included shielded Cat6A components support 10GBase-T and PoE standards, ensuring reliable performance for demanding applications.

What stands out

• Complete 7U wall-mount kit: enclosure, shelf, power strip, patch panel, 24 keystone modules, and 30 patch cables.
• High load capacity of 60 kg for switches, patch panels, and small servers.
• Shielded Cat6A connectivity supports 10 Gigabit Ethernet and PoE.
• Lockable safety glass door and side panels provide physical security.
• Space-efficient design with 540 x 400 mm footprint, ideal for limited spaces.
• Tool-less installation with included mounting material and keys.

Technical details

• Rack capacity: 7U
• Rack standard: 19-inch
• Maximum load capacity: 60 kg
• IP protection class: IP20
• Material: Steel sheet
• Colour: Black
• External dimensions (W x D): 540 x 400 mm (from sibling names; enclosure depth 450 mm per research)
• Front door: Safety glass with steel frame, lockable
• Side panels: Removable and lockable
• Cable entry: Top and bottom with brush strips
• Mounting rails: Two pairs, depth-adjustable
• Ventilation: Passive, prepared for fan unit
• Included accessories: 2 keys, mounting material (screws, cage nuts)

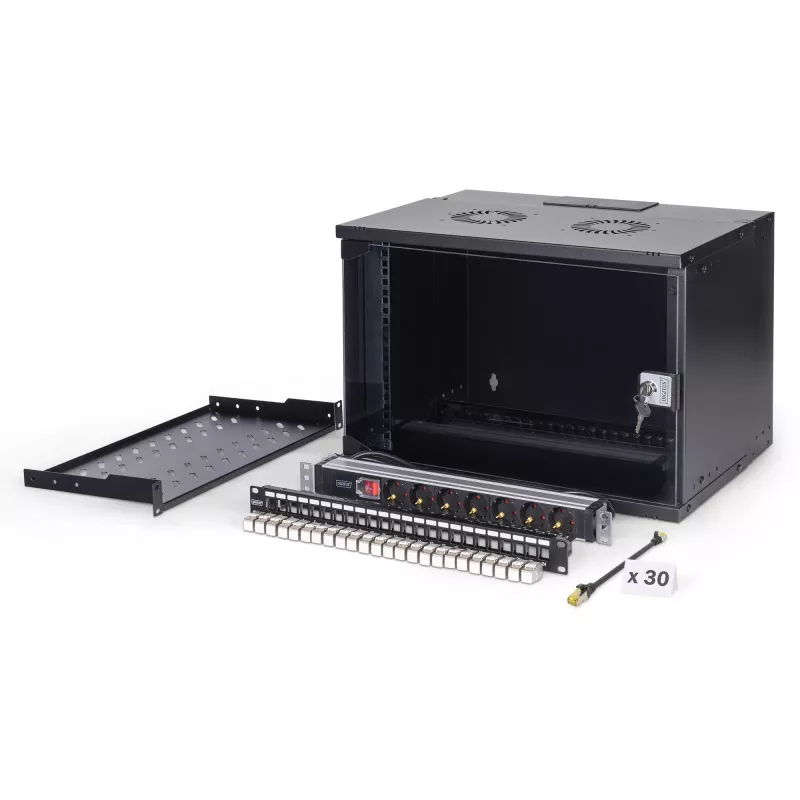

• Included components: 1U shelf, 1U power strip (7 earthed outlets, switch), 24-port modular patch panel, 24 shielded Cat6A keystone modules, 30x Cat6A S/FTP patch cables (0.25 m)

Our verdict

An all-in-one networking package that saves time and ensures compatibility. The DIGITUS SOHO PRO set is ideal for installers and IT managers who need a compact, secure, and high-performance wall-mount solution without sourcing individual parts.
