DIGITUS outdoor installation cable - Cat 7 - S/FTP - AWG 23/1 - 100m - Black

DIGITUS outdoor installation cable - Cat 7 - S/FTP - AWG 23/1 - 100m - Black
DIGITUS outdoor installation cable - Cat 7 - S/FTP - AWG 23/1 - 100m - Black
DIGITUS outdoor installation cable - Cat 7 - S/FTP - AWG 23/1 - 100m - Black
DIGITUS outdoor installation cable - Cat 7 - S/FTP - AWG 23/1 - 100m - Black
R2,791
Future-oriented standards and high-end quality for your network.- 10GBit Ethernet- 1200 MHz transmission frequency- Permanent Link certified- PoE Power over Ethernet support- PE outer sheath, BauPVO class Eca inner sheathThe Digitus® Professional Cat.7 S/FTP underground cable is characterized by the... Read More
Stock 3 Code 117640 Brand DIGITUS Model DK-1741-VH-1-OD Warranty 2 Years

Shipping & Returns

Estimated delivery Friday, October 2
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

Future-oriented standards and high-end quality for your network.

- 10GBit Ethernet
- 1200 MHz transmission frequency
- Permanent Link certified
- PoE Power over Ethernet support
- PE outer sheath, BauPVO class Eca inner sheath

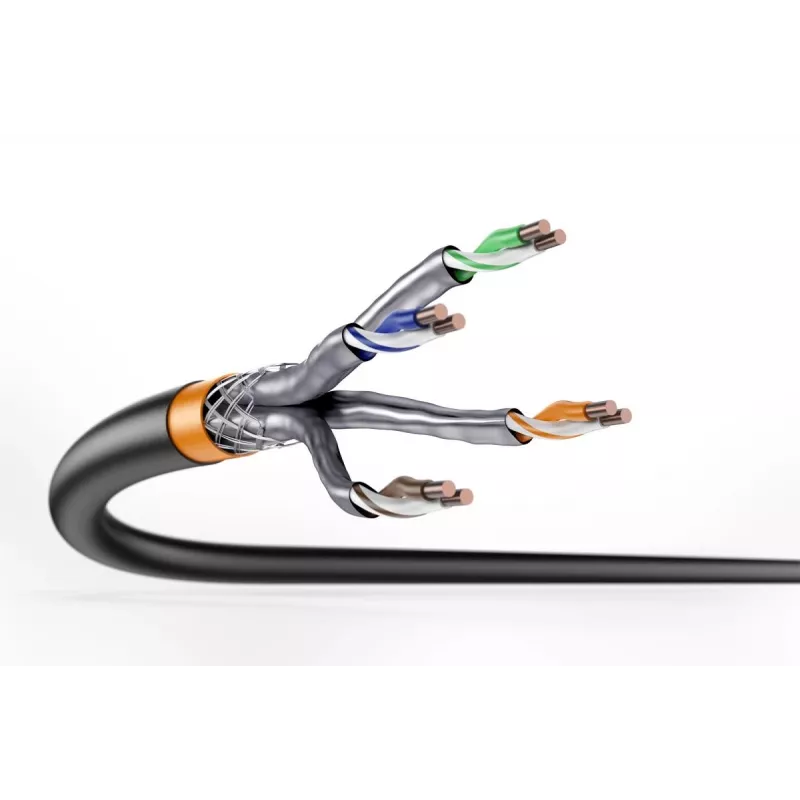

The Digitus® Professional Cat.7 S/FTP underground cable is characterized by the following cable structure 4x2x AWG23/1 and achieves a transmission frequency of up to 1200 MHz. The cable has a PE outer sheath and a halogen-free inner sheath and conforms to the IEC 60332-1, FRNC-B, LSZH-1 and BauPVO Euroclass Eca standards. The cable is suitable for installations in dry or damp rooms, outdoors or in the ground. Conforms to the standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1.

Key Highlights
  • Physical properties:
  • Conductor: Bare copper wire, AWG 23/1
  • Insulation: SFS-PE (foamed polyethylene jacket)
  • Total number of insulated conductors: 8, twisted into 4 pairs
  • Color code: Blue-white, orange-white, green-white, brown-white
  • Shielding of the individual pairs: Aluminum-laminated polyester film, covers 100%
  • Overall shielding: copper braiding
  • Outer sheath: PE (polyethylene); UV-resistant
  • Outer sheath thickness (nominal): 0.50 mm nominal
  • Outer casing color: Black (RAL 9005)
  • Mechanical properties:
  • Strain relief: 150N max.
  • Dynamic bending radius: 8x AD mm min.
  • Static bending radius: 4x AD mm min.
  • Transport and storage temperature range: -20 °C to +60 °C
  • Operating temperature range: -50 °C to +60 °C
  • Installation temperature range: 0 °C to +60 °C
  • Outer diameter simplex (nominal): 8.5 mm (Eca)
  • Weight (kg/km): 66.5 kg/km
  • Electrical properties:
  • Impedance: 100±5 Ohm @ 4-100 MHz; 100±25 Ohm @ 100-1200 MHz
  • Capacitance: 45 pF/m nominal @ 1 KHz
  • Capacitance unbalance (pair-earth): 1.6 pF/m max. @ 1 KHz
  • Insulation resistance: 5 GOhm x km min.
  • DC resistance: 95 Ohm/km max. (2% max. unbalanced resistance)
  • Loop resistance: 190 Ohm/km max. (2% max. unbalanced resistance)
  • Operating voltage: 72 Vdc max.
  • Coupling attenuation: CA-Type 1b
  • Phase delay: 450 nS/100 m max.
  • Time delay: 15 nS/100 m max.
  • Separation class: "d" according to EN 50174-2
  • NVP: 79%
Specifications
AWG wire size
23/1
Cable length
100 m
Cable shielding
S/FTP (S-STP)
Cable standard
Cat7
Certification
CPR class Eca
Conductor type
Solid
Connector 1
No
Connector 1 gender
No
Connector 2
No
Connector 2 gender
No
Country of origin
China
Frequency
1200 MHz
Harmonized System (HS) code
84733080
Jacket material
Polyethylene (PE)
Package depth
150 mm
Package volume
15360 cm³
Package weight
5.75 kg
Package width
320 mm
Product colour
Black
UK Trade Tariff code
85444920
