DIGITUS installation cable - CAT6a - U/UTP - AWG 23/1 - 305m - Light Blue

DIGITUS installation cable - CAT6a - U/UTP - AWG 23/1 - 305m - Light Blue
DIGITUS installation cable - CAT6a - U/UTP - AWG 23/1 - 305m - Light Blue
DIGITUS installation cable - CAT6a - U/UTP - AWG 23/1 - 305m - Light Blue
DIGITUS installation cable - CAT6a - U/UTP - AWG 23/1 - 305m - Light Blue
DIGITUS installation cable - CAT6a - U/UTP - AWG 23/1 - 305m - Light Blue
DIGITUS installation cable - CAT6a - U/UTP - AWG 23/1 - 305m - Light Blue
DIGITUS installation cable - CAT6a - U/UTP - AWG 23/1 - 305m - Light Blue
DIGITUS installation cable - CAT6a - U/UTP - AWG 23/1 - 305m - Light Blue
R5,628
Future-oriented standards and high-end quality for your network.- 10GBit Ethernet- 500 MHz transmission frequency- PoE Power over Ethernet support- CPR class EcaThe Digitus® Cat.6A U/UTP installation cable is characterized by the following cable construction 4x2x AWG23/1 and reaches a transmission f... Read More
Stock 28 Code 114099 Brand DIGITUS Model DK-1613-A-VH-305 Warranty 2 Years

Shipping & Returns

Estimated delivery Friday, October 2
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

Future-oriented standards and high-end quality for your network.

- 10GBit Ethernet
- 500 MHz transmission frequency
- PoE Power over Ethernet support
- CPR class Eca

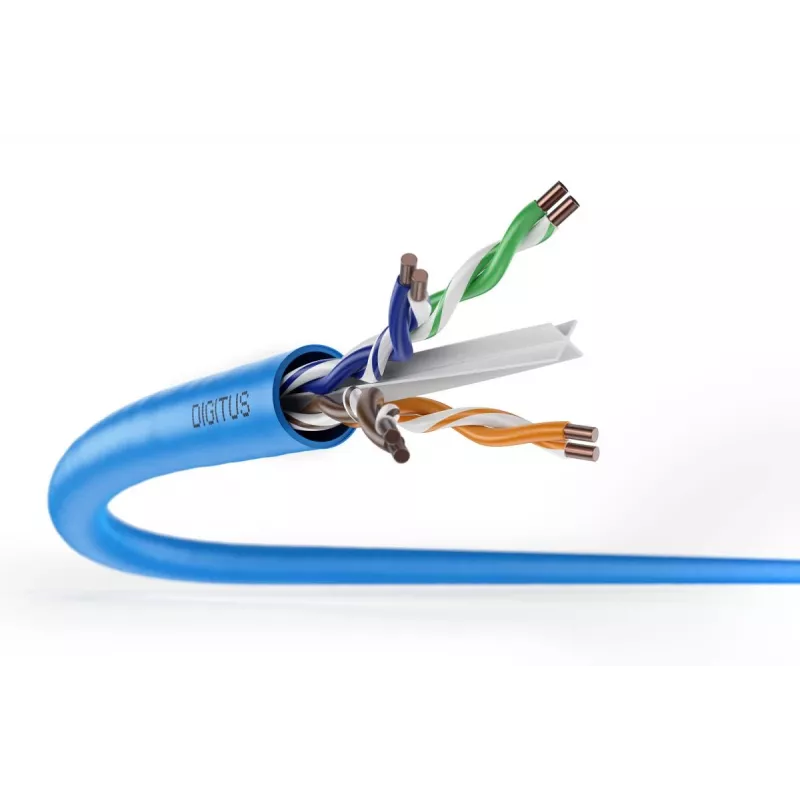

The Digitus® Cat.6A U/UTP installation cable is characterized by the following cable construction 4x2x AWG23/1 and reaches a transmission frequency up to 500 MHz. The halogen free cable jacket is conform to the standard IEC 60332-1, FRNC-B, LSZH-1 and CPR Euro class Eca. The cable is suitable for building structured cabling in the secondary and tertiary area. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-11-1.

Key Highlights
  • Physical properties:
  • Conductor: Bare annealed copper, olid AWG 23/1
  • System/s of AVCP: AVCP 3
  • Insulation: HD-PE (High Density Polyethylene)
  • Total number of insulated conductors: 8, twisted in 4 pairs
  • Color code: Blue-white, orange-white, green-white, brown-white
  • Individual pair shield: None
  • Overall shielding: None
  • Outer sheath: Eca to B2ca acc. to EN 50575; LSZH
  • Outer sheath diameter (nominal): 0,5 mm (Eca); 0,6 mm (Dca); 1,2 mm (Cca); 1,4 mm (B2ca)
  • Outer sheath color: Light blue (RAL 5012)
  • Mechanical properties:
  • Tensile loading: 150N max.
  • Dynamic bending radius: 8x AD mm min.
  • Static bending radius: 4x AD mm min.
  • Shipping- and storage temperature range: -20 °C up to +60 °C
  • Operating temperature range: -20 °C up to +75 °C
  • Installation temperature range: 0 °C up to +50 °C
  • Overall diameter Simplex (nominal): 7,1 mm (Eca); 7,3 mm (Dca); 7,4 mm (Cca); 7,6 mm (B2ca)
  • Weight (kg/km): 53 kg (Eca); 54 kg (Dca); 55 kg (Cca); 56 kg (B2ca)
  • Electrical properties:
  • Impedance: 100±5Ohm @ 1 - 600MHz
  • Capacitance: 40 pF/m nominal @ 1 KHz
  • Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz
  • Insulation resistance: 5 GOhm x km min.
  • DC loop resistance: 147 Ohm/km max. (2% max. resistance unbalance)
  • Voltage resistance: 72 Vdc max.
  • Coupling attenuation: CA-Type 2
  • Signal propagation delay: 450 nS/100 m max.
  • Propagation delay: 10 nS/100 m max.
  • Separating class: “c” acc. to EN 50174-2
  • NVP: 70%
Specifications
AWG wire size
23/1
Cable length
305 m
Cable shielding
U/UTP (UTP)
Cable standard
Cat6a
Certification
CPR class Eca
Conductor type
Solid
Connector 1
No
Connector 2
No
Country of origin
China
Frequency
500 MHz
Harmonized System (HS) code
84733080
Jacket material
Low smoke zero halogen (LSZH)
Operating temperature (T-T)
0 - 50 °C
Package depth
390 mm
Package volume
41067 cm³
Package weight
17 kg
Package width
390 mm
Product colour
Blue
Quantity per pack
1 pc(s)
Storage temperature (T-T)
-20 - 60 °C
UK Trade Tariff code
85444920
