DIGITUS installation cable - CAT6 - F/UTP - B2ca - 500m - Purple

DIGITUS installation cable - CAT6 - F/UTP - B2ca - 500m - Purple
DIGITUS installation cable - CAT6 - F/UTP - B2ca - 500m - Purple
DIGITUS installation cable - CAT6 - F/UTP - B2ca - 500m - Purple
DIGITUS installation cable - CAT6 - F/UTP - B2ca - 500m - Purple
DIGITUS installation cable - CAT6 - F/UTP - B2ca - 500m - Purple
DIGITUS installation cable - CAT6 - F/UTP - B2ca - 500m - Purple
DIGITUS installation cable - CAT6 - F/UTP - B2ca - 500m - Purple
DIGITUS installation cable - CAT6 - F/UTP - B2ca - 500m - Purple
R10,041
Future-oriented standards and high-end quality for your network.- 1GBit Ethernet- 250 MHz transmission frequency- PoE Power over Ethernet support- CPR class B2caThe Digitus® Professional Cat.6 F/UTP installation cable is characterized by the following cable construction 4x2x AWG23/1 and reaches a tr... Read More
Stock 112 Code 97679 Brand DIGITUS Model DK-1626-VH-5 Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

Future-oriented standards and high-end quality for your network.

- 1GBit Ethernet
- 250 MHz transmission frequency
- PoE Power over Ethernet support
- CPR class B2ca

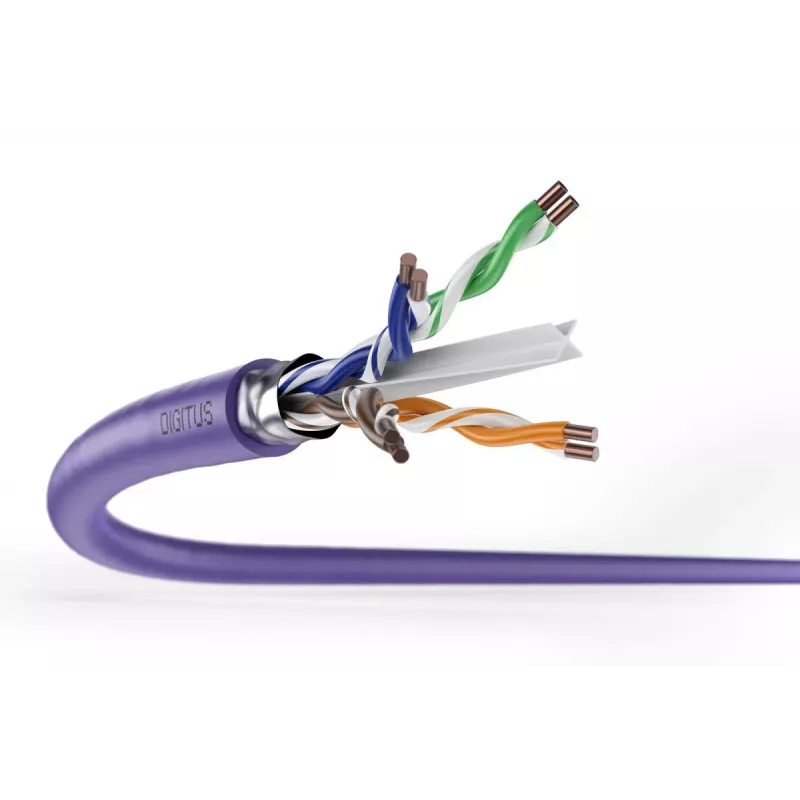

The Digitus® Professional Cat.6 F/UTP installation cable is characterized by the following cable construction 4x2x AWG23/1 and reaches a transmission frequency up to 250 MHz. The halogen free cable jacket is conform to the standard IEC 60332-3-24, FRNC-C, LSZH-1 and CPR Euro class Cca. The cable is suitable for building structured cabling in the secondary and tertiary area. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-5-1.

Key Highlights
  • Physical properties:
  • Conductor: Bare annealed copper, solid AWG 23/1
  • Insulation: HD-PE (High Density Polyethylene)
  • Total number of insulated conductors: 8, twisted in 4 pairs
  • Color code: Blue-white, orange-white, green-white, brown-white
  • Individual pair shield: None
  • Overall shielding: Aluminum foil, providing 100% coverage, drain wire
  • Outer sheath: Eca to B2ca acc. to EN 50575; LSZH
  • Outer sheath diameter (nominal): 0.5 mm (Eca); 0,6 mm (Dca); 0,8 mm (Cca); 0,08 mm (B2ca)
  • Outer sheath color: Purple
  • Mechanical properties:
  • Tensile loading: 150N max.
  • Dynamic bending radius: 8x AD mm min.
  • Static bending radius: 4x AD mm min.
  • Shipping- and storage temperature range: -20 °C up to +60 °C
  • Operating temperature range: -20 °C up to +75 °C
  • Installation temperature range: 0 °C up to +50 °C
  • Overall diameter Simplex (nominal): 7.0 (Eca); 7,2 mm (Dca); 7,6 mm (Cca); 7,6 mm (B2ca)
  • Weight (kg/km): 46 kg (Eca); 47 kg (Dca); 48,5 kg (Cca); 48,5 kg (B2ca)
  • Electrical properties:
  • Impedance: 100±5 Ohm @ 1-250 MHz
  • Capacitance: 45 pF/m nominal @ 800 Hz
  • Capacitance unbalance (pair-ground): 1.5 pF/m max. @ 1 KHz
  • Insulation resistance: 5 GOhm x km min.
  • DC loop resistance: 147 Ohm/km max. (2% max. resistance unbalance)
  • Voltage resistance: 72 Vdc max.
  • Coupling attenuation: 40 dB
  • Signal propagation delay: 535 nS/100 m max.
  • Propagation delay: 20 nS/100 m max.
  • Separating class: ,,c” acc. to EN 50174-2
  • NVP: 69%
Specifications
AWG wire size
23/1
Cable fire class
B2ca
Cable length
500 m
Cable shape
Round
Cable shielding
F/UTP (FTP)
Cable standard
Cat6
Conductor material
Copper
Conductor type
Solid
Connector 1
No
Connector 1 gender
No
Connector 2
No
Connector 2 gender
No
Doesn't contain
Halogen
Frequency
250 MHz
Jacket material
Low smoke zero halogen (LSZH)
Operating temperature (T-T)
-20 - 75 °C
Outer diameter
7.6 mm
Plug and Play
Yes
Product colour
Violet
Quantity per pack
1 pc(s)
Storage temperature (T-T)
-20 - 60 °C

Leaflet

Open Leaflet
