DIGITUS installation cable - Cat 7a - S/FTP - AWG 22/1 duplex - 100m - Yellow

DIGITUS installation cable - Cat 7a - S/FTP - AWG 22/1 duplex - 100m - Yellow
DIGITUS installation cable - Cat 7a - S/FTP - AWG 22/1 duplex - 100m - Yellow
R4,960
Future-oriented standards and high-end quality for your network.- 10GBit Ethernet- 1500 MHz transmission frequency- GHMT PVP certified- PoE, PoE+, 4PPoE (IEEE 802.3af;3at;3bt)- BauPVO class Dca-s1a d1 a1The Digitus Cat 7 installation cable is designed for use in structured data centers and building ... Read More
Stock 2 Code 114293 Brand DIGITUS Model DK-1743-A-VH-D-1 Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

Future-oriented standards and high-end quality for your network.

- 10GBit Ethernet
- 1500 MHz transmission frequency
- GHMT PVP certified
- PoE, PoE+, 4PPoE (IEEE 802.3af;3at;3bt)
- BauPVO class Dca-s1a d1 a1

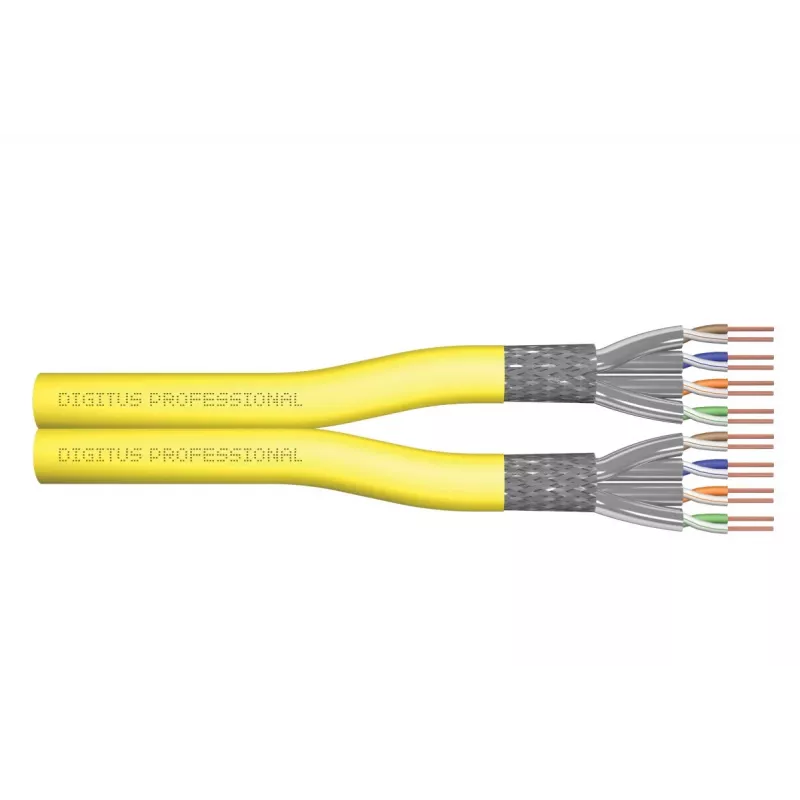

The Digitus Cat 7 installation cable is designed for use in structured data centers and building cabling in accordance with ISO/IEC 11801, DIN EN 50288-4-1, DIN EN 50173, IEC 61156-7, EN 50288-9-1. The cable is ideal for the transmission of analog and digital data and supports PoE, PoE+, 4PPoE (IEEE 802.3af;3at;3bt). The shield structure consists of individually shielded pairs with a tinned copper braid, which ensures excellent shielding and electrical values.

Key Highlights
  • Physical properties:
  • Conductor: Bare copper wire AWG 22/1
  • System(s) of assessment and verification of constancy of performance: System 3
  • Insulation: SFS-PE (foamed polyethylene jacket)
  • Total number of insulated conductors: 8, twisted into 4 pairs
  • Color code: blue-white, orange-white, green-white, brown-white
  • Shielding of the individual pairs: aluminum-laminated polyester film, covers 100%
  • Overall shielding: copper braiding
  • Outer sheath: Halogen-free (FRNC-C/LSZH-3)
  • Outer sheath thickness: 0.6 mm nominal
  • Color: Yellow (RAL 1016)
  • Length: 100 m
  • Mechanical properties:
  • Tensile load: 150N max.
  • Dynamic bending radius: 8x AD mm min.
  • Static bending radius: 4x AD mm min.
  • Transport and storage temperature range: -20 °C to +60 °C
  • Operating temperature range: -20 °C to +60 °C
  • Installation temperature range: 0 to +50C
  • Outer diameter: 8.0 mm nominal
  • Flame retardancy: IEC 60332-3-24
  • Halogen-free & smoke-tight: IEC 60754-2 & IEC 61034
  • Fire load: 700 Mj/km
  • Electrical properties:
  • Average impedance: 100±5 Ohm at 1-600 MHz
  • Capacitance: 40 pF/m nominal @ 1 KHz
  • Capacitance unbalance (pair-earth): 1.6 pF/m max. @ 1 KHz
  • Insulation resistance: 5 GOhm x km min.
  • Loop resistance: 147 Ohm/Km max. (2% max. resistance unbalance)
  • Operating voltage: 72 Vdc max.
  • Coupling attenuation: Grade 1 (CA-Type 1b)
  • Time delay: 10 nS/100 m max.
  • Phase delay: 450 nS/100 m max.
  • Separation class: "d" according to EN 50174-2
  • NVP: 79%
  • Flame spread: EN 60332-1-2 (LSOH-PVC)
  • Halogen-free, corrosiveness: EN 60754-1/2 (LSOH)
  • Smoke density: EN 61034-2
Specifications
AWG wire size
22/1
Bend radius (min)
4 mm
Cable length
100 m
Cable shape
Round
Cable standard
Cat7a
Conductor material
Copper
Connector 1
No
Connector 1 gender
No
Connector 2
No
Connector 2 gender
No
Country of origin
Turkey
Frequency
1500 MHz
Impedance
100 O
Jacket material
Low smoke zero halogen (LSZH)
Operating relative humidity (H-H)
0 - 50%
Operating temperature (T-T)
-20 - 60 °C
Outer diameter
8 mm
Package depth
360 mm
Package height
160 mm
Package volume
20736 cm³
Package weight
10.1 kg
Package width
360 mm
Plug and Play
Yes
Product colour
Yellow
Quantity per pack
1 pc(s)
Storage temperature (T-T)
-20 - 60 °C
UK Trade Tariff code
85444920
