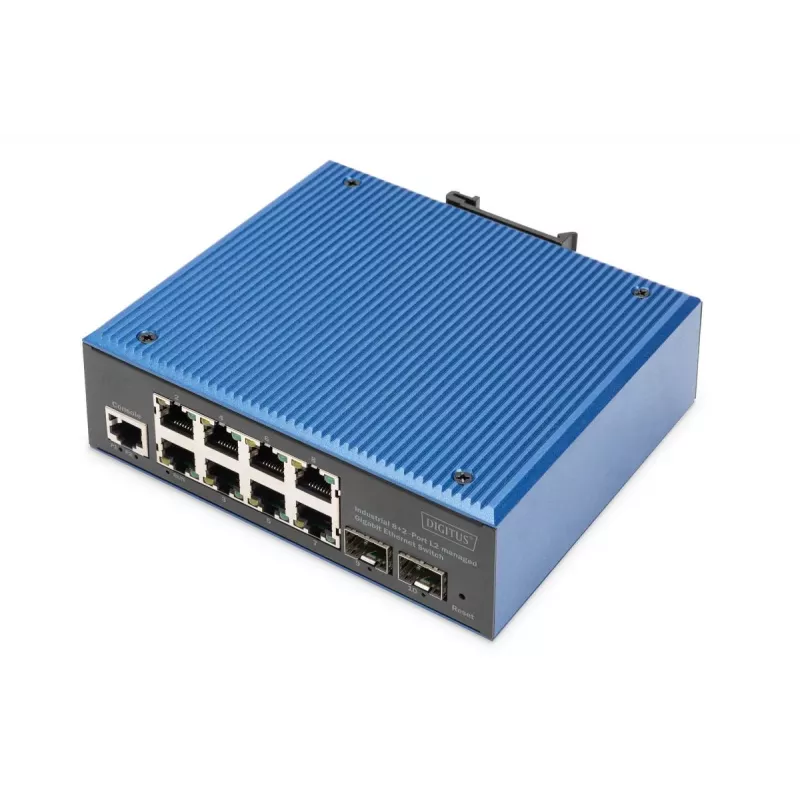

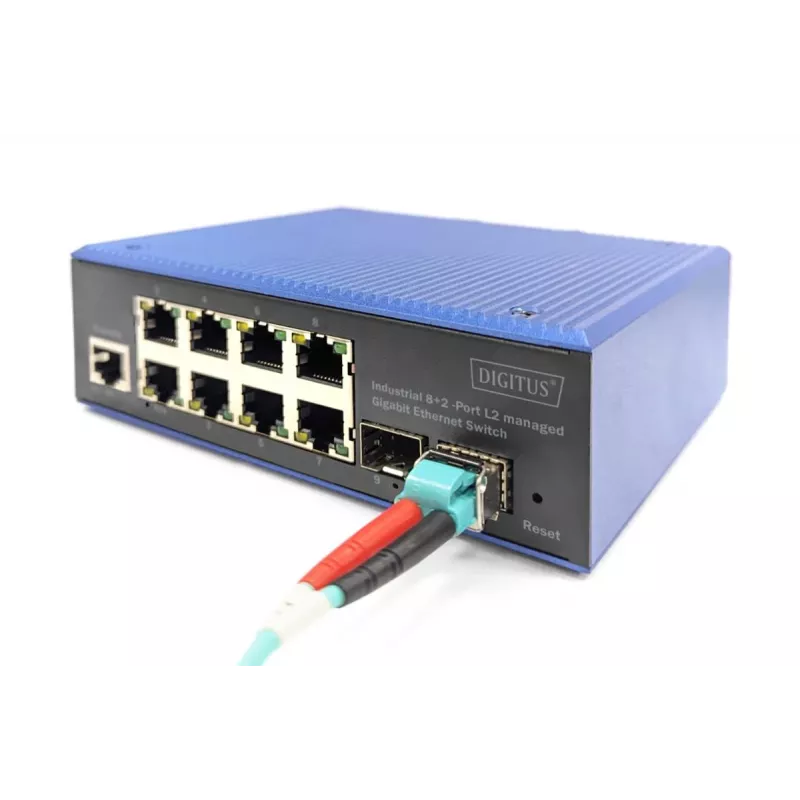

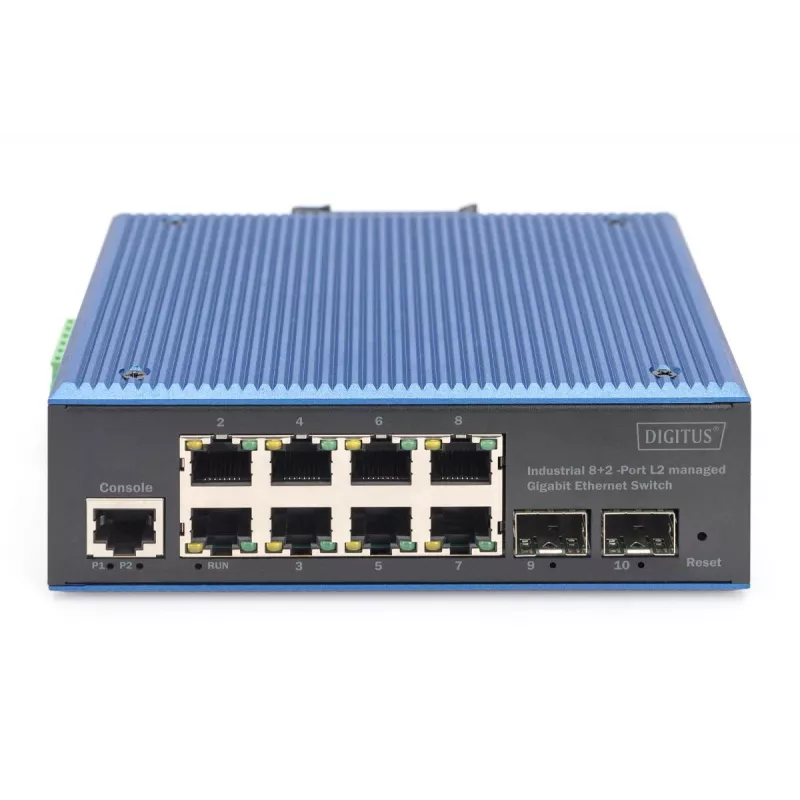

DIGITUS Industrial 8+2 Port L2 Managed Gigabit Ethernet Switch 8x GE RJ45 + 2 SFP Port

DIGITUS Industrial 8+2 Port L2 Managed Gigabit Ethernet Switch 8x GE RJ45 + 2 SFP Port
DIGITUS Industrial 8+2 Port L2 Managed Gigabit Ethernet Switch 8x GE RJ45 + 2 SFP Port
DIGITUS Industrial 8+2 Port L2 Managed Gigabit Ethernet Switch 8x GE RJ45 + 2 SFP Port
DIGITUS Industrial 8+2 Port L2 Managed Gigabit Ethernet Switch 8x GE RJ45 + 2 SFP Port
DIGITUS Industrial 8+2 Port L2 Managed Gigabit Ethernet Switch 8x GE RJ45 + 2 SFP Port
DIGITUS Industrial 8+2 Port L2 Managed Gigabit Ethernet Switch 8x GE RJ45 + 2 SFP Port
DIGITUS Industrial 8+2 Port L2 Managed Gigabit Ethernet Switch 8x GE RJ45 + 2 SFP Port
DIGITUS Industrial 8+2 Port L2 Managed Gigabit Ethernet Switch 8x GE RJ45 + 2 SFP Port
DIGITUS Industrial 8+2 Port L2 Managed Gigabit Ethernet Switch 8x GE RJ45 + 2 SFP Port
DIGITUS Industrial 8+2 Port L2 Managed Gigabit Ethernet Switch 8x GE RJ45 + 2 SFP Port
R5,153
8x 10/100BASE-TX RJ45 + 2x 1000Base-Fx ports, L2 Management functions. The IP40 housing with redundant power supply is ideal for monitoring, control management and wireless services at -40℃ to 80℃.- 8 port GE RJ45, 2 SFP GE ports- 8 x 10/100/1000 Mbit (RJ45)- 2 x 10/100/1000 Mbit (SFP)- Redundant p... Read More
Stock 17 Code 119206 Brand DIGITUS Model DN-651156 Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

8x 10/100BASE-TX RJ45 + 2x 1000Base-Fx ports, L2 Management functions. The IP40 housing with redundant power supply is ideal for monitoring, control management and wireless services at -40℃ to 80℃.

- 8 port GE RJ45, 2 SFP GE ports
- 8 x 10/100/1000 Mbit (RJ45)
- 2 x 10/100/1000 Mbit (SFP)

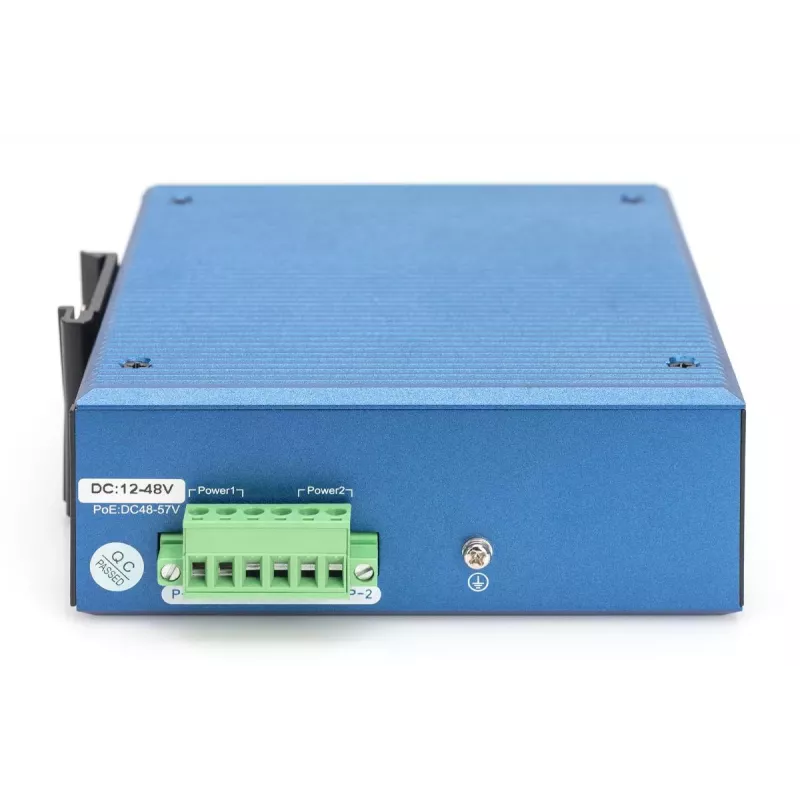

- Redundant power supply 12-48 V (DC)
- Metal housing according to IP40 standard

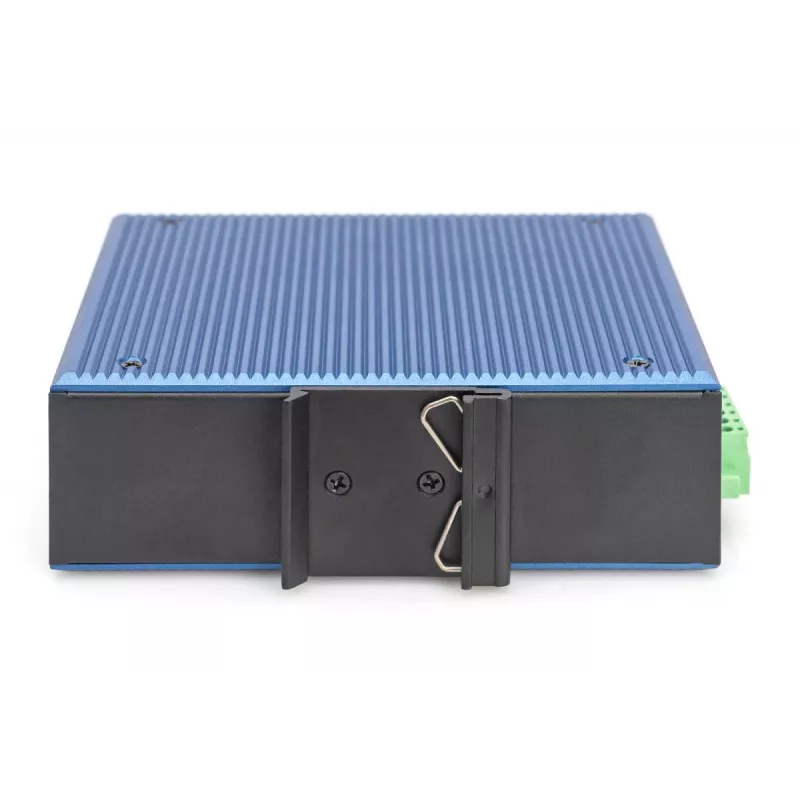

- Easy mounting on a top hat rail
- Operating temperature from - 40° up to 80° C
- Numerous L2 management features
- ESD & EFT protection up to 6 kV (DC)
- Optimal for the connection of camera systems

The Digitus DN-651156 Ethernet switch with 8 x RJ45 interfaces and 2 x SFP uplinks offers numerous Layer 2 port functions for optimum network performance. It supports flow control, link aggregation and various routing strategies. The switch enables VLAN management, supports spanning tree protocols and ensures fast recovery in case of failures. Optimise multicast traffic with IGMP and MLD snooping. The switch offers advanced security features such as ACLs and supports QoS for traffic prioritisation. Stay in control with comprehensive management options such as SNMP and CLI. Our switch is a reliable network solution with advanced features for your needs.

Key Highlights
  • Supports IEEE802.3x flow control, and backpressure
  • Supports store-and-forward technology for optimized data transmission
  • Automatic speed and half/full duplex detection/adjustment
  • Bandwidth: 20 Gbps
  • Packet buffer size: 4.1 Mbit
  • Packet forwarding size: 15 Mbps
  • Size of the MAC address table: 4 K
  • jumbo frame rate :10240 bytes
  • ESD protection: 6 kV
  • EFT protection: 6 kV
  • Metal housing, IP40
  • 4 kV lightning and overvoltage protection
  • Suitable for DIN rail mounting (top hat rail)
  • Redundant power supply with reverse polarity protection function
  • Power supply: 12 to 48 V (DC)
  • Power consumption: <10 W
  • Removable terminal connection
  • Protection class: IP40
  • Dimensions: 143,7 x 125 x 47,7 mm
  • Weight: 0.6 kg
  • Operating temperature: -40 to 80 ° C
  • Storage temperature: -40 to 80 ° C
  • Humidity: 5% to 95% (non-condensing)
  • MTBF: 300,000
  • Port features: IEEE 802.3x flow control, interface counter, storm control, link aggregation, static aggregation, dynamic aggregation, LACP
  • Supports up to 8 aggregation groups, each with up to 8 ports
  • Support for source MAC, destination MAC, source destination MAC, source IP, destination IP, source destination IP routing strategy
  • MAC table management,port forwarding,IVL forwarding, static MAC address, MAC address binding support, MAC address filtering support, port mirroring, port based mirroring
  • Spanning Tree: IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ERPS (G.8032), single ring, sub-ring, multi-ring, load balancing,
  • recovery time < 50 ms
  • QINQ: VLAN-based QinQ, GVRP support
  • LLDP: LLDP, LLDP-MED,
  • VLAN: 4094 VLANs, port-based VLAN, GVRP, protocol VLAN, MAC-based VLAN, IP subnet-based VLAN, voice VLAN.
  • Static entries: Port isolation support
  • IGMP: IGMP snooping V1, IGMP snooping V2, IGMP snooping V3, source port inspection, IGMP Fast Leave, IGMP filter,
  • MLD snooping: MLD snooping V1, MLD snooping V2, source port checking, MLD Fast Leave, MLD filtering
  • ACL: ACL (IP Standard ACL), IPv4/IPv6, Extended MAC ACL, Extended IP ACL, Matching L2, L3 and L4 fields, Logging, Forwarding, Mirroing, Speed Limiting
  • QoS: QoS class, re-evaluation, SP, WRR queue scheduling, ingress port-based rate limiting, ingress priority-based rate limiting, egress port-based rate limiting, egress queue-based rate limiting, policy-based QoS, storm control, 8 queues per port
  • Dot1x: port access control, user access control, MAC address access control
  • Various other L2 features
Specifications
10G support
No
Access Control List (ACL)
Yes
Bandwidth
20 Gbit/s
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Broadcast storm control
Yes
Country of origin
China
DC input voltage
12 - 48 V
Depth
125 mm
DIN rail mounting
Yes
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Fiber optic connector
SFP
Flow control support
Yes
Forwarding rate
15 Mpps
Full duplex
Yes
Gigabit Ethernet (copper) ports quantity
8
Half duplex
Yes
Height
47.7 mm
Housing material
Metal
IGMP snooping
Yes
Installed SFP modules quantity
2
International Protection (IP) code
IP40
Jumbo frames
10240
Jumbo frames support
Yes
Link aggregation
Yes
MAC address filtering
Yes
MAC address table
4000 entries
Mean time between failures (MTBF)
300000 h
Networking standards
IEEE 802.3x
Number of VLANs
4094
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-40 - 80 °C
Package depth
66 mm
Package height
213 mm
Package volume
2221.16 cm³
Package weight
735 g
Package width
158 mm
Packet buffer memory
4.1 MB
Port mirroring
Yes
Power consumption (typical)
10 W
Power over Ethernet (PoE)
No
Power source
DC
Power supply included
Yes
Product colour
Black, Blue
Quality of Service (QoS) support
Yes
Quick start guide
Yes
Rack mounting
No
Redundant power supply (RPS) support
Yes
Stackable
No
Storage relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-40 - 80 °C
Store-and-forward
Yes
Suitable for outdoor use
No
Surge protection
Yes
Surge protection voltage
4 kV
Switch layer
L2
Switch type
Managed
Switching capacity
1 Gbit/s
UK Trade Tariff code
85176200
Vandal-proof
No
Virtual LAN features
IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Voice VLAN
VLAN support
No
Weight
600 g
Width
143.7 mm
