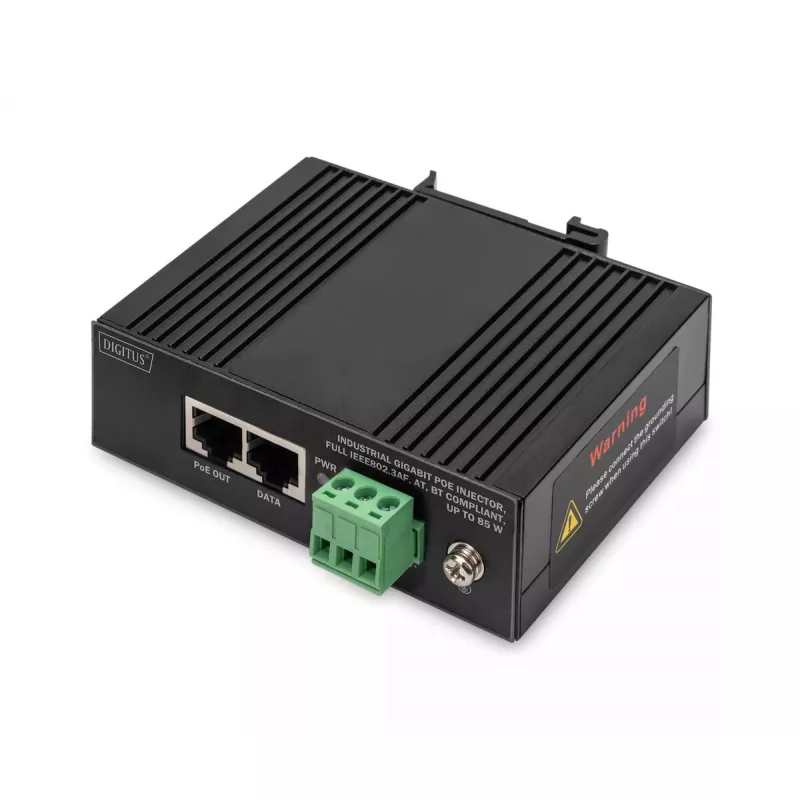

Digitus Gigabit Ethernet PoE Injector Industrial IEEE 802.3af 802.3at 802.3bt

The Digitus Gigabit Ethernet PoE Injector (DN-651141) is an industrial single-port mid-span injector that delivers up to 85 W of power over 4-pair Ethernet and supports full IEEE 802.3af, 802.3at and 802.3bt standards. Designed for industrial environments, it accepts a 45–56 V DC input, supports 10/100/1000Base-T data rates, fits on a DIN-rail and operates in a wide temperature range from -40 to +75 °C. LED indicators show power input and PoE output status, and the device can power remote equipment at distances up to 100 meters.

Advantages

The injector is fully compliant with IEEE 802.3af/at/bt ensuring automatic detection of connected PDs and safe power delivery up to 85 W on 4 pairs. Its compact industrial housing and DIN-rail mount simplify installation in control cabinets and telecom racks, eliminating the need for separate AC/DC power supplies and additional cabling. Status LEDs provide clear visual feedback for power and PoE output.

Suitable for

• Powering wireless LAN access points (high-power APs)
• Supplying power to IP security cameras, including PTZ or multi-sensor models
• VoIP telephone systems and SIP endpoints
• Remote network devices in industrial or outdoor enclosures up to 100 m

Key specifications

• Standards: IEEE 802.3af / 802.3at / 802.3bt
• Maximum PoE output: up to 85 W (4-pair)
• Data rates: 10/100/1000Base-T (Gigabit Ethernet)
• DC input voltage: 45–56 V
• Maximum cable distance: up to 100 m

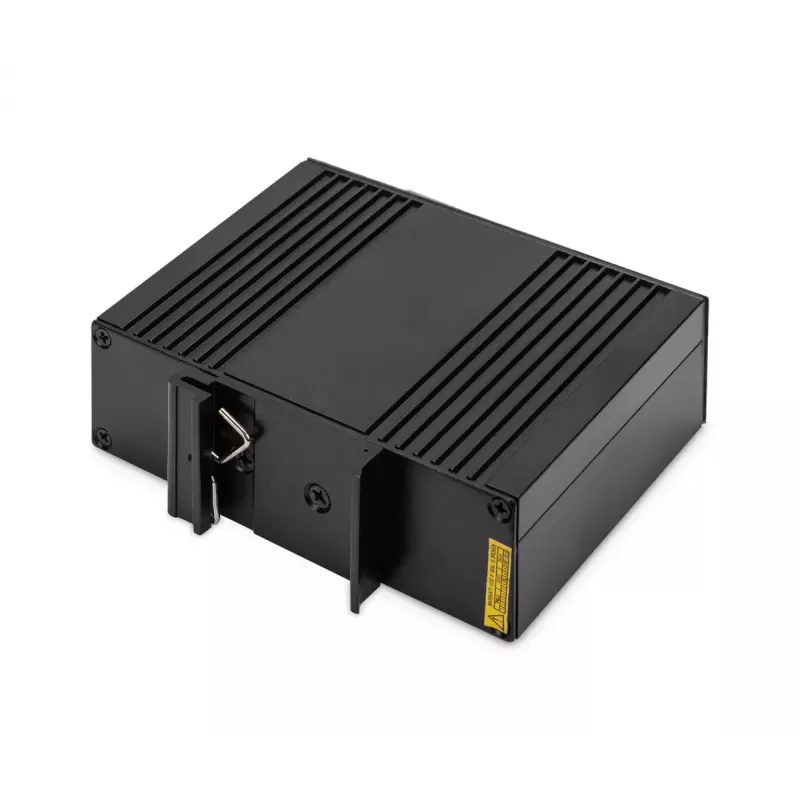

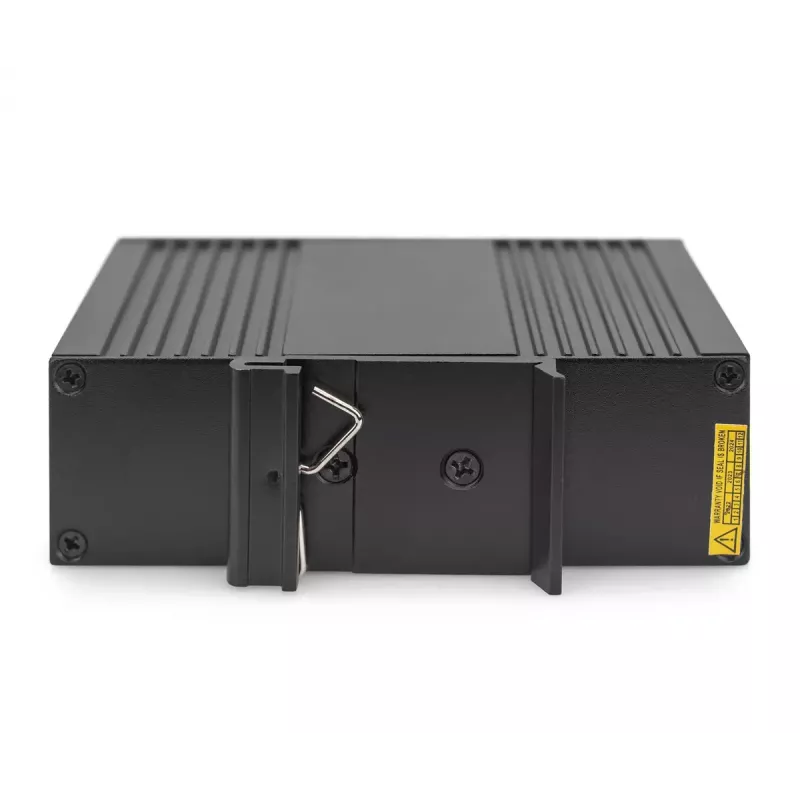

• Mounting: DIN-rail
• Operating temperature: -40 °C to +75 °C

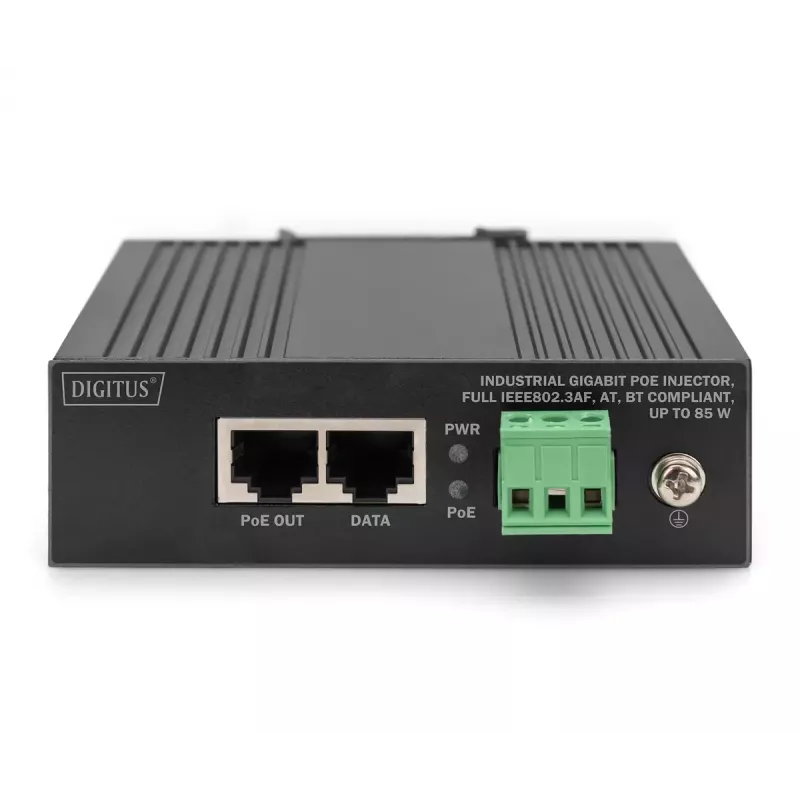

• Ports: 2 x RJ-45 (data in + PoE out)
• Dimensions (W×D×H): approximately 103 × 78 × 32 mm
• Weight: 0.295 kg
• Color: Black

How to use

Mount the injector on a DIN-rail in a protected enclosure and connect a suitable DC power source within 45–56 V to the DC input. Connect the network switch or upstream device to the data input RJ-45 port and connect the powered device (PD) to the PoE output RJ-45 port. Ensure Ethernet cabling is Cat5e or higher for Gigabit operation and keep cable runs within 100 meters. Monitor the front-panel LEDs to verify input power and PoE output status.

Recommendations

Use a regulated DC power source sized to provide the required wattage plus margin for connected PDs. For reliable Gigabit throughput, use Cat5e or Cat6 cabling and avoid running PoE cables near high-voltage or noisy power lines. Install the injector in a ventilated enclosure and observe the operating temperature range.
