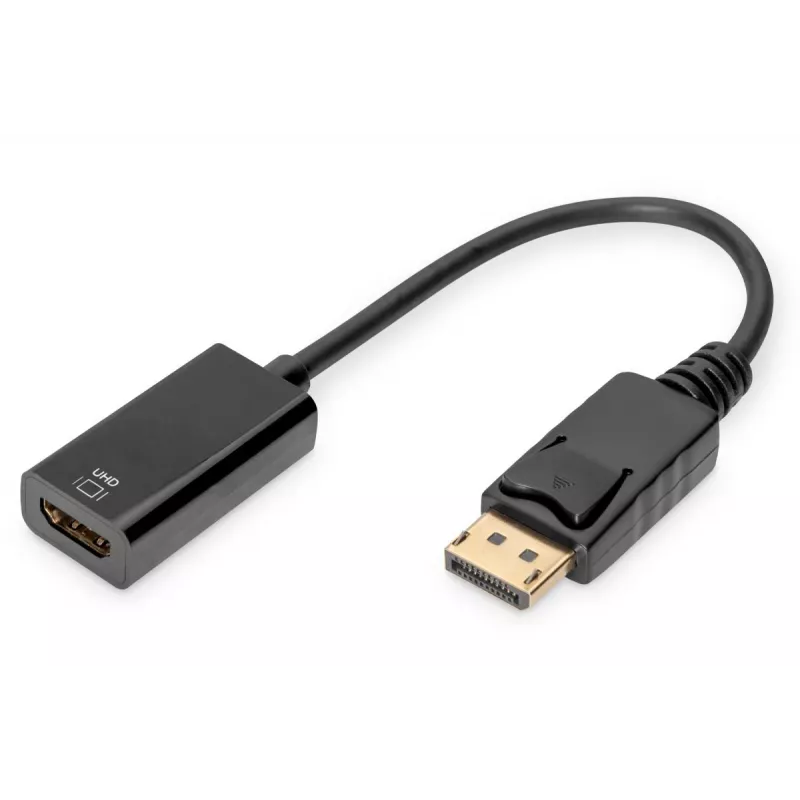

DIGITUS DP - HDMI Cable 20cm black DP - HDMI type A M/F HDMI 2.0

The 4K DisplayPort to HDMI Adapter converts DisplayPort signals into HDMI for displays with resolutions up to UHD 4K (4096 x 2160). It connects a computer or notebook DisplayPort output to an HDMI display, allowing reproduction of images, videos, documents and presentations on TVs and other HDMI-capable screens.

Advantages

This adapter supports DP++ Dual Mode and handles data rates up to 2.7 Gbps. It is compatible with HDCP versions 1.3, 1.4 and 2.2 and supports 24-bit Deep Color. The built-in automatic receiver compensation helps maintain signal integrity for stable image reproduction.

Key specifications

• Maximum resolution: 4096 x 2160 (UHD 4K)
• Supported data rate: up to 2.7 Gbps
• DP++ Dual Mode support
• HDCP compatible: 1.3 / 1.4 / 2.2
• Color depth: Deep Color 24-bit
• Connector: DisplayPort plug to HDMI jack
• Automatic receiver compensation: built-in

How to use

Connect the adapter’s DisplayPort plug to the DisplayPort output of your computer or notebook, then connect an HDMI cable from the adapter’s HDMI jack to the HDMI input of your TV or monitor. Ensure both devices are powered on and select the correct HDMI input on the display. The adapter automatically negotiates the best matching resolution up to 4096 x 2160.

Recommendations

For optimal performance, use a high-speed HDMI cable rated for 4K and verify that the source device’s DisplayPort output supports DP++ if passive conversion is required. When using protected content, ensure connected display and source support the appropriate HDCP version.
