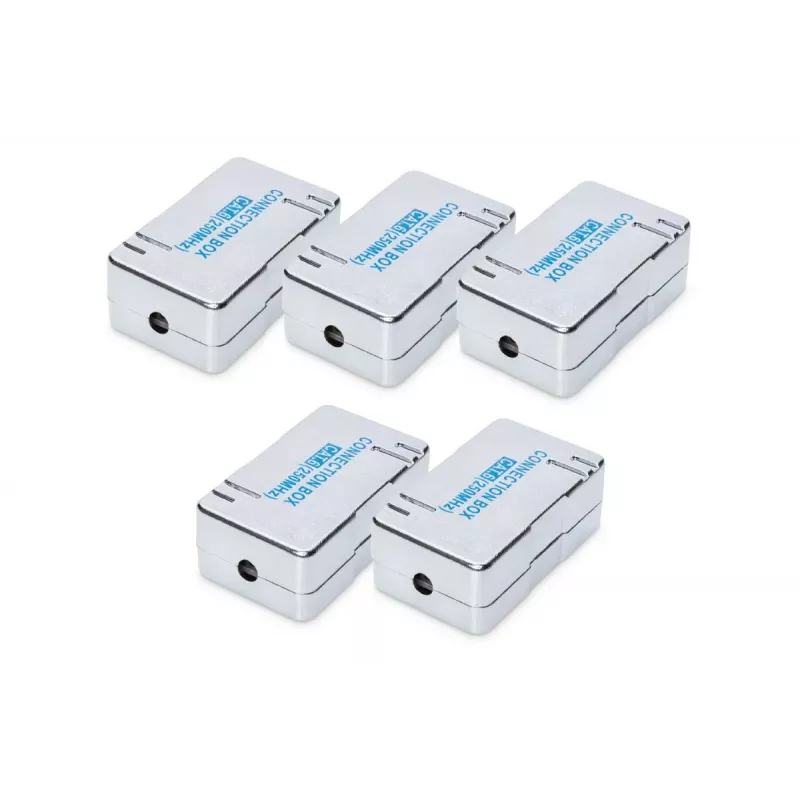

DIGITUS connection module for twisted pair cables LSA shielded CAT6 - 5 pieces

DIGITUS connection module for twisted pair cables LSA shielded CAT6 - 5 pieces
DIGITUS connection module for twisted pair cables LSA shielded CAT6 - 5 pieces
R574
Future-oriented standards and high-end quality for your network.The DIGITUS® Connection module is for the purpose of connecting or extention of Twisted Pair Cables.... Read More
Stock 1 Code 129354 Brand DIGITUS Model DN-93903-5 Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

Future-oriented standards and high-end quality for your network.

The DIGITUS® Connection module is for the purpose of connecting or extention of Twisted Pair Cables.

Key Highlights
  • Transmission properties: Category 6
  • Area of application: Up to 250 MHz, 1GBase-T
  • Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
  • General properties:
  • Suitable for installation in trunking, surface and flush mount
  • Cable installation via LSA stripes, color-coded as per EIA/TIA 568 A & B
  • Suitable for connection of installation cables - extension of cables, replacing of defect cable links
  • Integrated strain relief for installation cables
  • Suitable for cables with AWG 22-26 diameter
  • Technical properties:
  • Housing material: ABS UL-94V-0
  • RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
  • RJ45 shielding: Tinned bronze
  • LSA termination clamp: Krone LSA+, UL 94V-0, zinc plated phosphor bronze
  • Conductor plate: FR4, UL 94V-0
  • Physical properties:
  • Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
  • IDC wire size: 22 – 26 AWG solid and stranded conductor
  • Insulation resistance: > 500 MOhm
  • Contact resistance: < 20 MilliOhm
  • Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
  • 5 pieces
Specifications
AWG wire size
22/26
Cable types supported
Cat6
Connector 1
LSA
Connector 2
LSA
Connector contacts plating
Gold
Data transfer rate
1 Gbit/s
Housing material
Acrylonitrile butadiene styrene (ABS)
Maximum refresh rate
250 Hz
Operating temperature (T-T)
-20 - 70 °C
Package depth
210 mm
Package height
100 mm
Package volume
4620 cm³
Package weight
300 g
Package width
220 mm
Plug and Play
Yes
Product colour
White
Quantity per pack
5 pc(s)

Leaflet

Open Leaflet
