Digitus CAT 6A compact keystone module shielded tool-free mounting connection 8 pcs

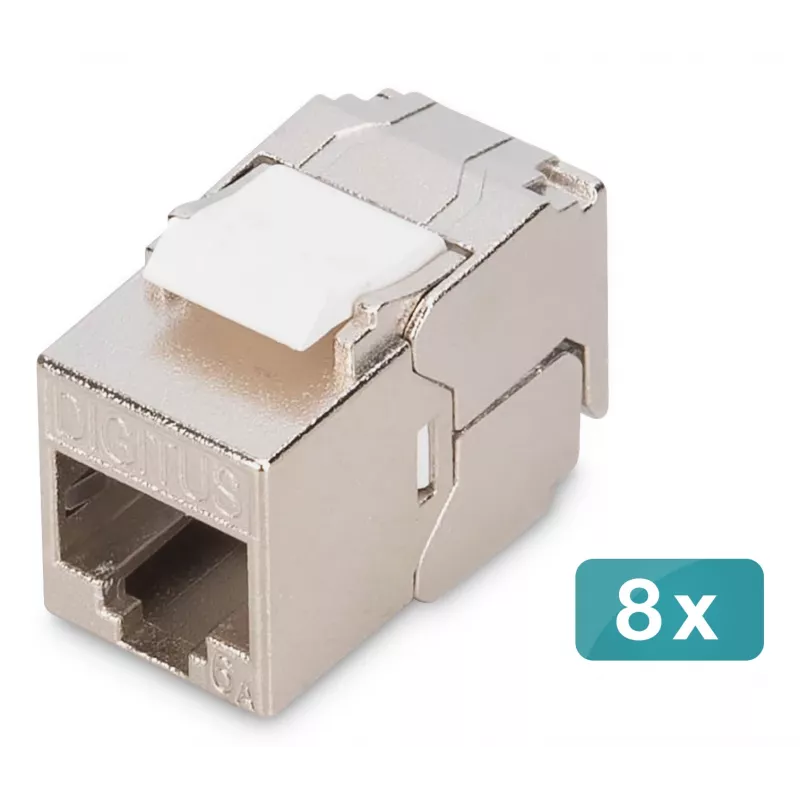

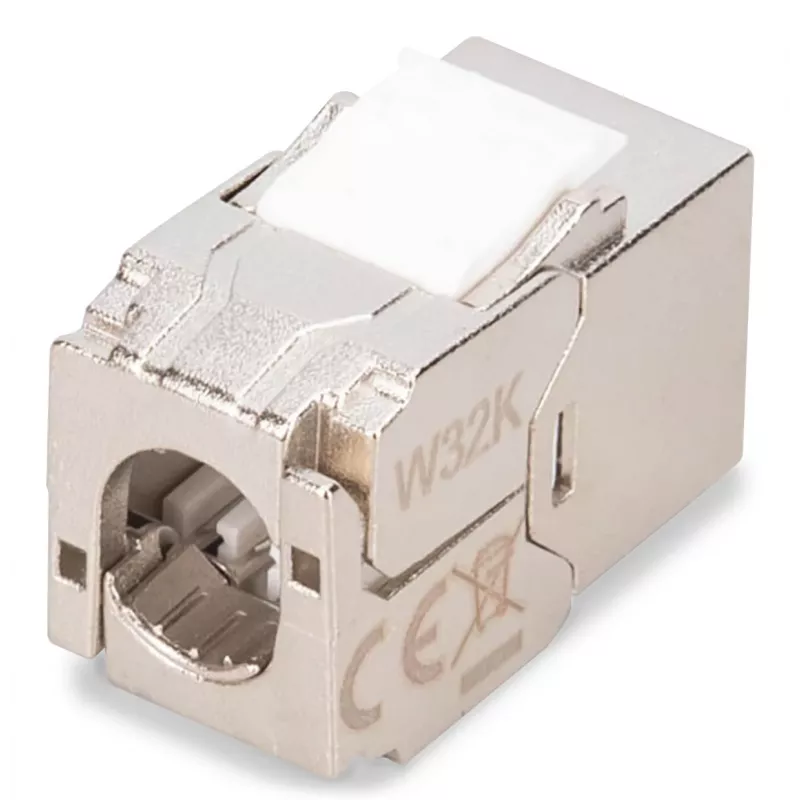

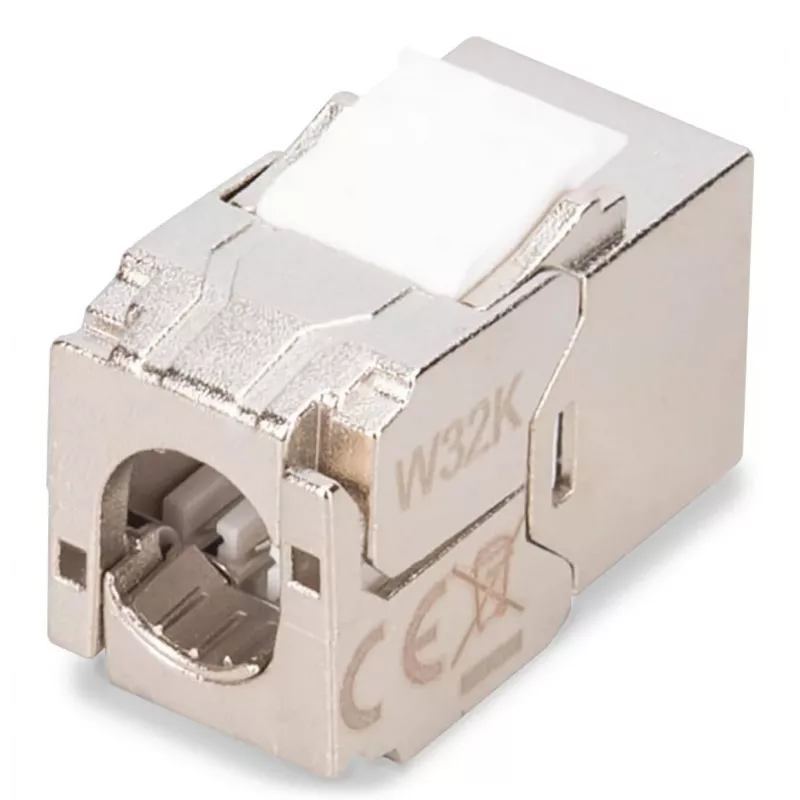

The Digitus CAT 6A compact keystone module (DN-93615-S-8) is a shielded, tool-free RJ45 insert designed for quick installation in distribution panels and modular junction boxes. Its compact, flat housing with 360° shield contacting supports 10GBase-T networks up to 500 MHz and is supplied in a pack of 8 modules for series installation in 19" 1U panels or design-compatible enclosures.

Advantages

The module offers tool-free termination via LSA insulation displacement connectors, color-coded for EIA/TIA 568 A & B, and includes a dust protection cap for the RJ45 socket. It supports PoE standards (IEEE 802.3 af/at/bt) including 4PPoE in permanent link, provides high mechanical reliability with nickel-plated zinc die-cast housing and phosphor bronze contacts, and features an intelligent reclosable cable manager and strain relief for secure cable fixing.

Suitable for

• Data center and server room patch panels (19" 1U series installation)
• Modular distribution panels and design-compatible junction boxes
• Structured cabling that requires CAT 6A / 10GBase-T performance
• Installations requiring PoE / PoE+ / 4PPoE support

Key specifications

• Category: CAT 6A, 10GBase-T
• Frequency: Up to 500 MHz
• Standards: ISO/IEC 11801 3rd Edition, EN 50173-1
• Connector: RJ45 (8P8C), female

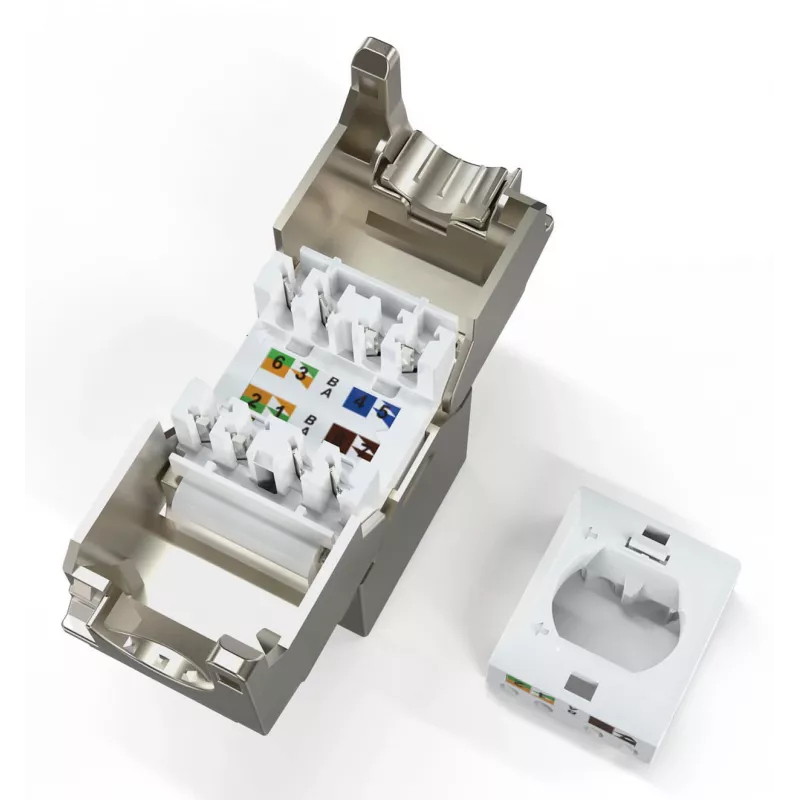

• Termination: LSA insulation displacement connectors, color-coded for EIA/TIA 568 A & B (tool-free)
• Shielding: 360° shield contacting
• Housing material: Zinc die-cast, nickel-plated
• Contact material/coating: Phosphor bronze; nickel + 0.5 μm gold plating
• Insertion force: Max. 30 N (IEC 60603-7-51)
• Holding force: 7.7 kg between socket and plug
• Operating temperature: -20 °C to +70 °C
• Mating cycles: ≥ 750
• Conductor compatibility: AWG 26/7 – 22/1, stranded and solid (tested with AWG 22/1)
• Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
• Quantity: 8 pieces per pack
• Color: Silver

How to use

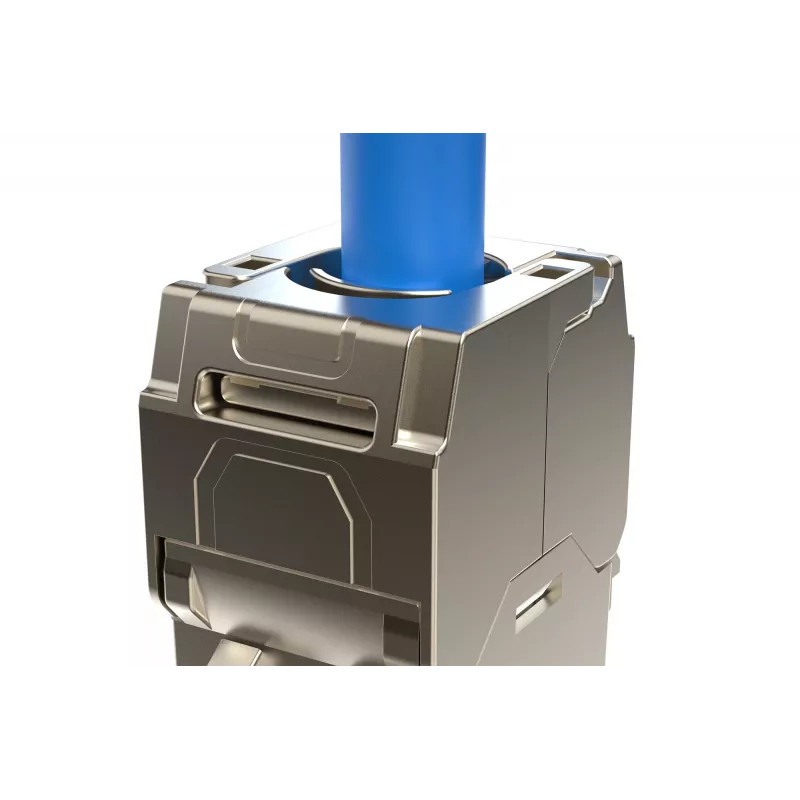

Insert the module into a compatible 19" panel or design-compatible junction box. Strip the cable jacket to the recommended length, place conductors into the color-coded LSA slots according to EIA/TIA 568 A or B wiring, and terminate using the insulation displacement connectors without additional tools. Secure the cable using the integrated cable manager and cable ties for strain relief, then snap in the dust protection cap when the port is not in use.

Recommendations

For best performance, use solid AWG 22/1 installation cable (tested configuration) and ensure correct shielding continuity to maintain CAT 6A performance and PoE reliability. Avoid repeated excessive mechanical stress on the connector beyond the specified mating cycles and holding force.
